STIGA
>
Lawn Mower
>
TURBO 43SE 4-SPEED TURBO 43SE 4-SPEED (2000)
>
Chassis
Back to
TURBO 43SE 4-SPEED
TURBO 43SE 4-SPEED (2000)
Chassis
TURBO 43SE 4-SPEED
TURBO 43SE 4-SPEED (2000)

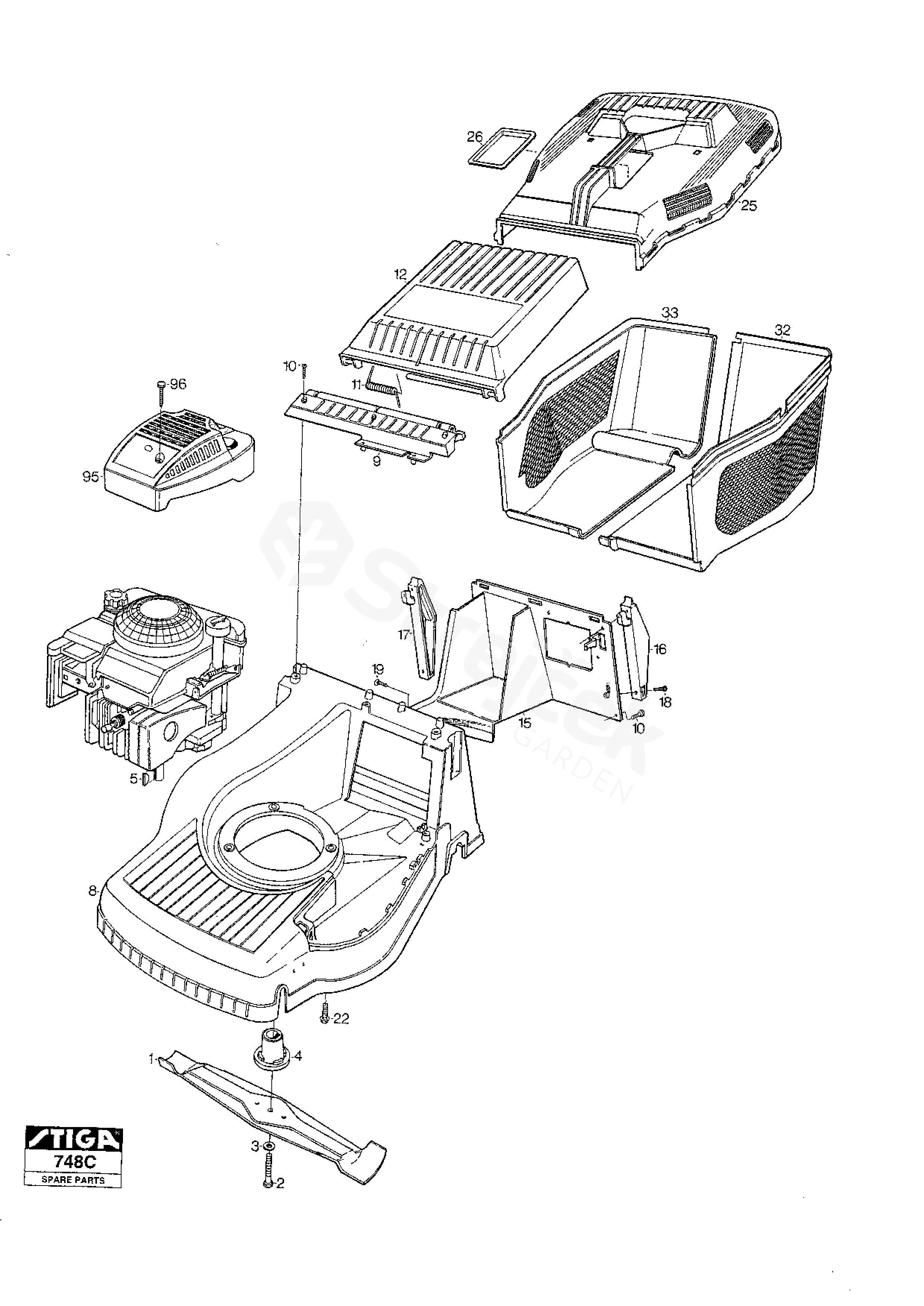

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TURBO 43SE 4-SPEED (2000)
1
Blade
1111-9089-01
2
Screw
9987-5251-12
3
Washer
9696-0011-01
4
Blade Hub
1111-9070-01
5
Key
9600-0014-00
8
Chassis, Yellow
1111-3100-01
9
Flap Attachment (Yellow)
1111-3104-01
10
Screw
9947-0616-16
11
Spring
1111-3181-01
12
Flap-yellow
1111-3282-01
15
Rear Attachment
1111-3101-01
16
Attachment L.H.
1111-3236-01
17
Attachment R.H.
1111-3237-01
18
Screw
9836-9520-12
19
Screw
9838-9522-12
22
Screw
9955-3732-12
25
Grass Bag Cover, Yellow
1117-1345-01
26
Cover
1111-2764-01
32
Collector-Lower Part L.H.
1111-3106-01
33
Collector-Lower Part R.H.
1111-3116-01
