STIGA
>
Lawn Mower
>
TURBO 45 TURBO 45 (1997)
>
Walkbehind
Back to
TURBO 45
TURBO 45 (1997)
Walkbehind
TURBO 45
TURBO 45 (1997)

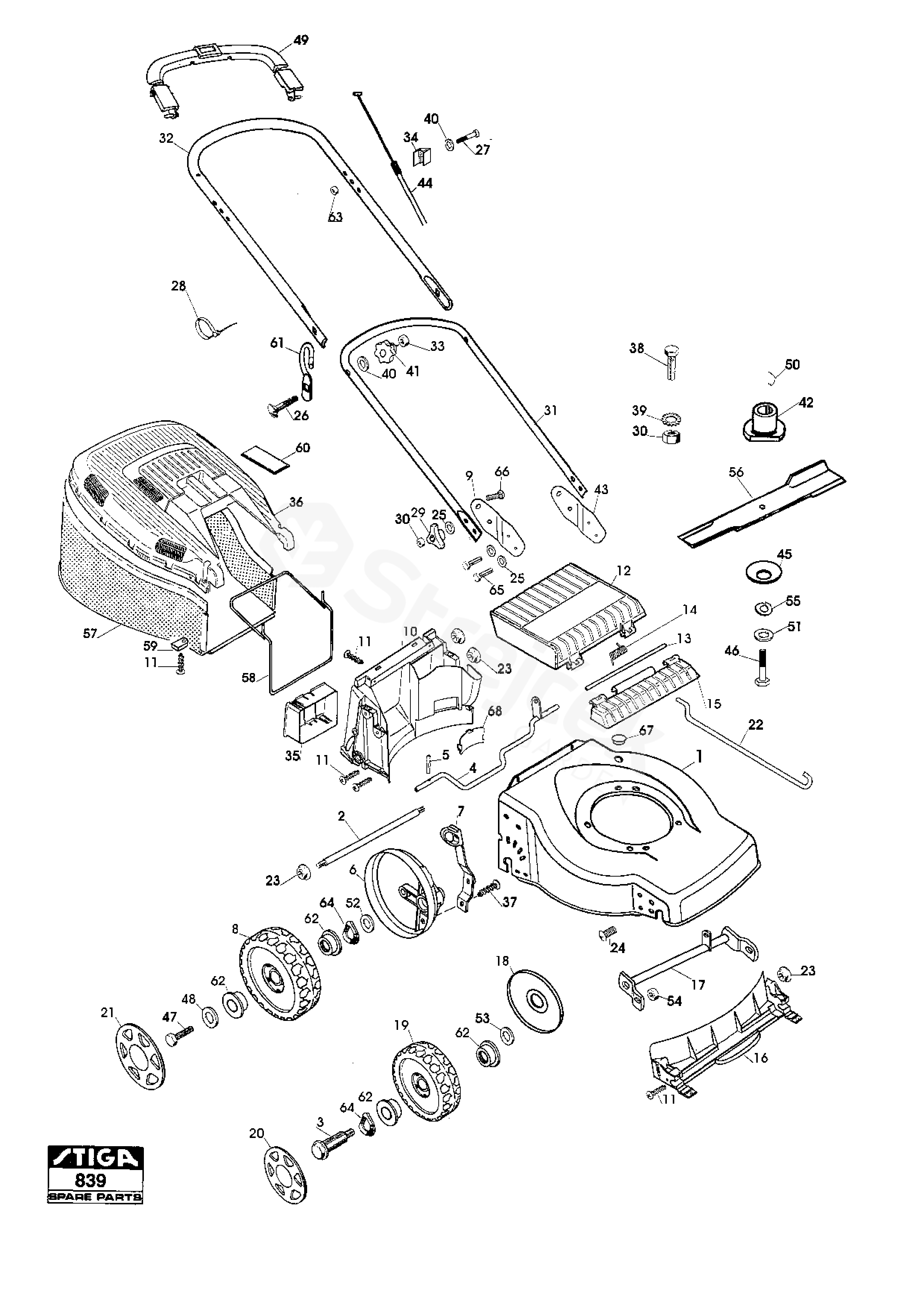

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TURBO 45 (1997)
1
Yellow Deck
1117-1308-01
2
Reinforcement
1117-1159-01
3
Wheel Bolt
1117-1176-01
4
Shaft-Backside
1117-1173-01
5
Locating Pin
9595-0212-00
6
Wheel Cover
1117-1304-01
7
Lever, Height Adjustment
1117-1174-01
8
Wheel
1117-1224-01
9
Handle Support, Right
1117-1341-01
10
Baffle-rear
1117-1146-01
11
Screw
9836-9516-12
12
Rear Flap (Yellow)
1117-1156-01
13
Shaft For Rear Flap
1117-1143-01
14
Spring-Rear Flap
1117-1126-01
15
Rear Flap Fixation (Yell)
1117-1155-01
16
Baffle-front
1117-1145-01
17
Front Shaft
1117-1334-01
18
Protection, Wheel
1117-1161-01
19
Wheel
1117-1167-01
20
Hub Cap (175) Yellow
1111-3084-01
21
Hub Cap (190) Yellow
1111-3085-01
22
Connection Rod
1117-1130-01
23
Nut
1117-1131-01
24
Screw
9865-0816-16
25
Washer
9699-0028-02
26
Screw
9899-3551-12
27
Screw
9948-0640-16
28
Cable Holder
9579-0008-00
29
Knob
1117-1108-01
30
Nut
9799-0831-02
31
Handlebar-lower part
1117-1312-01
32
Handlebar Upper Part
1111-2957-01
33
Nut
9795-3531-02
34
Cable Holder
1111-2969-01
35
Battery Holder
1111-2927-01
36
Grass Bag Cover, Yellow
Inkl. 59, 60
1117-1157-01
37
Screw
9836-9512-12
38
Screw
9997-0830-16
39
Lock washer
9678-0009-02
40
Washer
9699-0025-02
41
Locking Knob
1111-3023-01
42
Blade mount
1117-1201-01
43
Handle Support, Left
1117-1340-01
44
Opc Cable
1117-1205-01
45
Elastic Washer
1117-1243-01
46
Screw
9987-5251-12
47
Screw
9997-0614-16
48
Washer
1117-1175-01
49
Control Handle (Eng.Brake
1111-2953-01
50
Key
9600-0014-00
51
Washer
9699-0035-02
52
Washer
9699-0036-02
53
Washer
9699-0078-02
54
Nut
9747-0831-02
55
Washer
9683-0040-02
56
Blade
1117-1203-01
57
Grass Bag-Lower
1117-1266-01
58
Grass Bag Frame
1117-1265-01
59
Bag Clamp
1117-1257-01
60
Cap for grassbag
1117-1256-01
61
Eyelink
1111-3062-01
62
Ball Bearing
1117-1109-01
63
Nut
9799-0631-02
64
Washer
9694-0003-00
65
Screw
9997-0820-16
66
Screw
9898-0835-12
67
Cap
1117-1119-01
68
Cap
1117-1148-01
