STIGA
>
Lawn Mower
>

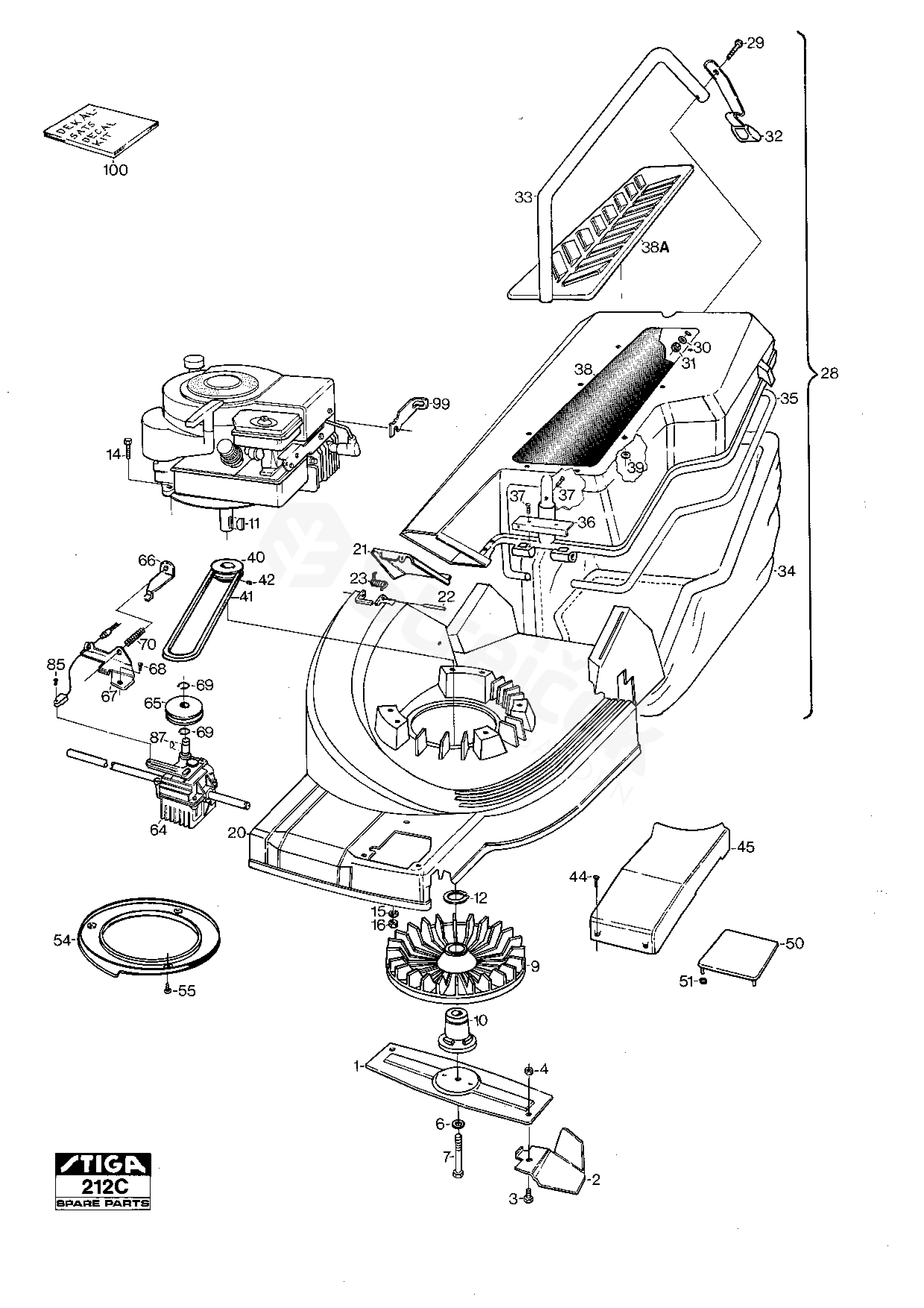

TURBO 460S TURBO 460S (1990) [12-6516-55]
>
Chassis
Back to
TURBO 460S
TURBO 460S (1990) [12-6516-55]
Chassis
TURBO 460S
TURBO 460S (1990) [12-6516-55]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TURBO 460S (1990) [12-6516-55]
1
Blade Bar Assy
1111-1423-01
2
Blade kit
1111-9048-01
3
Screw
9997-0816-16
4
Nut
9747-0831-02
6
Washer
9696-0011-01
7
Screw
9987-5251-12
9
Fan
1111-1407-01
10
Blade Holder
1111-1408-01
11
Key
9600-0014-00
12
Circlip
9650-0038-04
14
Screw
40 mm
9997-0840-16
15
Washer
9683-0030-02
16
Nut
9799-0831-02
20
Chassis, Yellow
1111-1424-01
21
Flap
1111-1081-01
22
Pin
9594-0011-00
23
Spring
1111-1683-01
28
Collector assy
11-6911-11
29
Screw
9865-0535-16
30
Washer
9699-0018-02
31
Nut
9747-0531-02
32
Locking clutch
1111-1103-01
33
Handle
1111-1131-01
34
Collecting Bag
1111-1562-01
35
Tubular Frame
1111-1132-01
36
Retainer
1111-1591-01
37
Screw
9847-7913-16
38
Net Grass Collector
1111-1694-01
39
Starlock
9675-0008-02
40
Belt Pulley
1111-2433-01
41
V-Belt
1111-9051-01
42
Screw
9907-0610-16
44
Screw
9941-0530-16
45
Transmission Cover (Yello
1111-1409-01
54
Cover Plate
1111-1422-01
55
Screw
9943-0510-16
64
Transmission assy.
1111-1186-01
65
Belt Pulley
1111-1188-01
66
Spring Attachment
1111-1189-01
67
Spring Attachment
1111-1190-01
69
Circlip
9659-0050-04
70
Brake Spring
1134-1023-00
85
Screw
9849-7909-16
87
Key
F000-3475-00
99
Cable Holder
6516
1111-1936-01
38A
Dust guard
1111-1682-01
