Spare parts > STIGA > Lawn Mower > TURBO 47 S COMBI TURBO 47 S COMBI (2007) [23-7234-16] > Deck And Height Adjusting
Back to

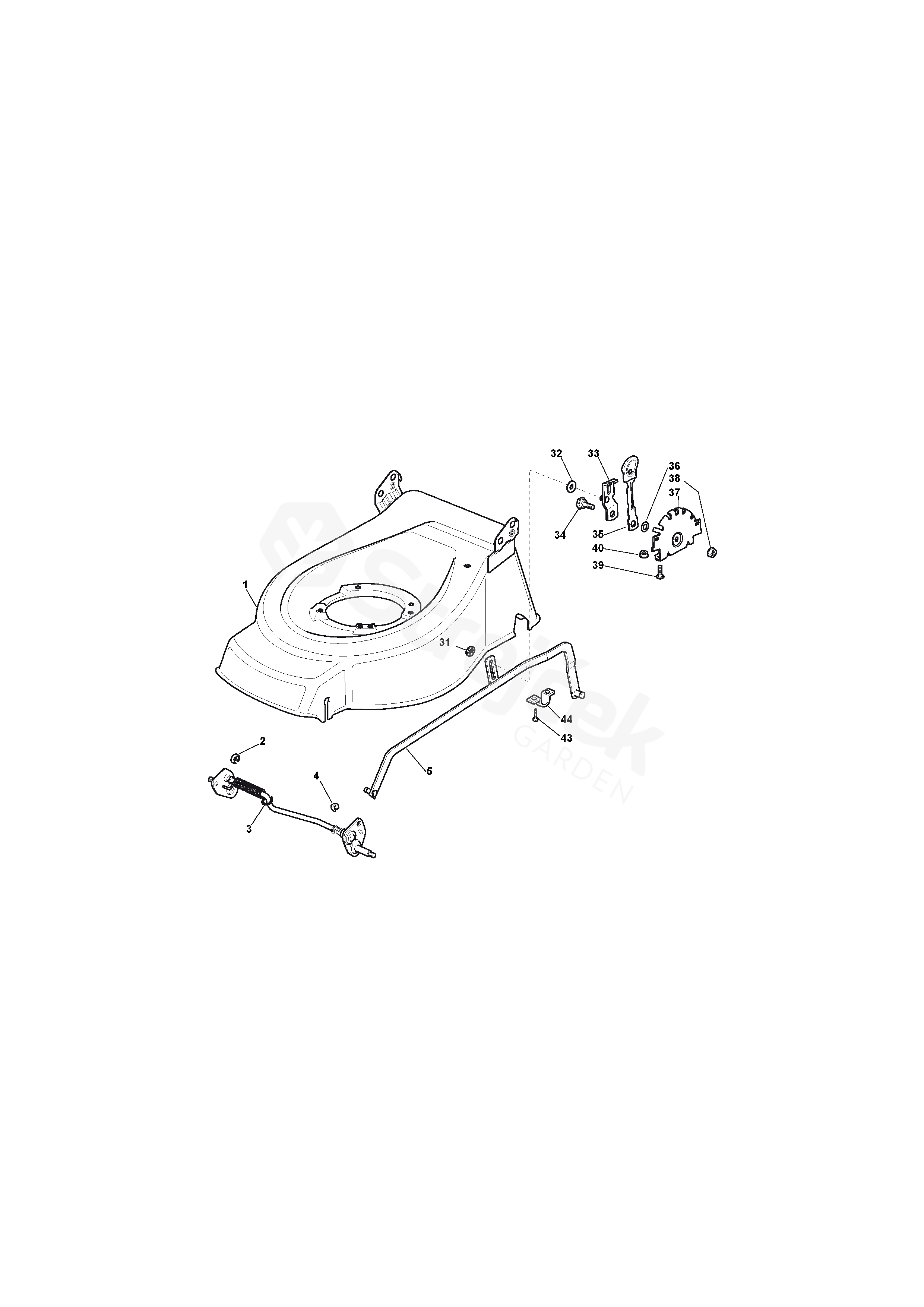

Deck And Height Adjusting
TURBO 47 S COMBI TURBO 47 S COMBI (2007) [23-7234-16]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TURBO 47 S COMBI (2007) [23-7234-16]
1 Grey Deck 381002781/1
2 Spacer 122171002/0
3 Front Wheel Axle 381000141/1
4 Plate 112436050/0
5 Wheels Control Rod 381006491/0
31 Crown Fastener 112604896/0
32 Elastic Washer 112369500/0
33 Plate 381005121/0
34 Pin 122524333/0
35 Lever, Height Adjustment 381003322/0
36 Antifriction Washer 322672152/0
37 Sector, Height Adjustment 322735571/0
38 Nut 112154210/0
39 Screw 112815200/0
40 Nut 112292102/0
43 Screw 112731350/0
44 Plate 322545152/0
