STIGA
>
Lawn Mower
>

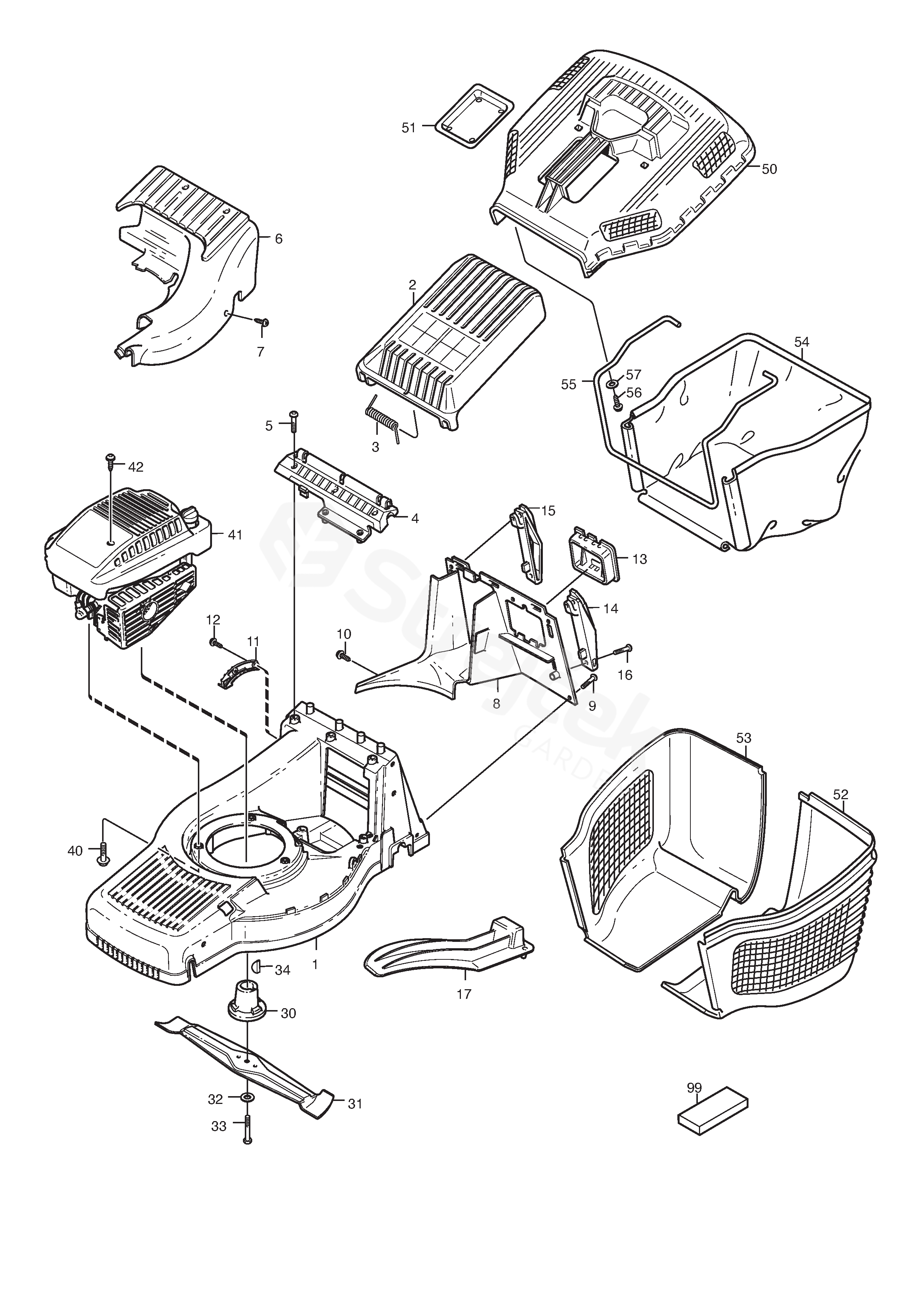

TURBO 48S COMBI TURBO 48S COMBI (2002) [12-5286-19]
>
Deck
Back to
TURBO 48S COMBI
TURBO 48S COMBI (2002) [12-5286-19]
Deck
TURBO 48S COMBI
TURBO 48S COMBI (2002) [12-5286-19]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TURBO 48S COMBI (2002) [12-5286-19]
1
Chassis (Aluminium)
12-5286-59
1111-3090-50
2
Stone Guard, Yellow
1111-3283-01
3
Spring
1111-2792-01
4
Flap Attachment
1111-2793-01
5
Screw
9947-0616-16
6
Cover (Yellow)
1111-2794-01
8
Rear Attachment (Combi 48-55)
1111-3335-01
10
Screw
9838-9522-12
11
Height Adjusting Plate
1111-2798-01
13
Battery Holder
ej 12-5298-19
1111-2927-01
14
Attachment L.H.
1111-3236-01
15
Attachment R.H.
1111-3237-01
16
Screw
9836-9520-12
17
Mulch Plug (Combi 48)
1111-3333-01
30
Blade Hub
1111-9070-01
31
Blade
1111-9090-01
32
Washer
9696-0011-01
33
Screw
9987-5251-12
34
Key
9600-0014-00
40
Screw
9955-3732-12
41
Engine Cover (Black)
1111-3352-01
42
Screw
12-5281-29
9828-7942-12
50
Collector-Upper Part (Yellow)
1111-2840-01
51
Cover
1111-2764-01
52
COLLECTOR-LOWER PART LEFT
1111-2841-02
53
COLLECTOR-LOWER PART RIGHT
1111-2842-02
99
Label Kit
1111-2893-12
