Spare parts > STIGA > Lawn Mower > TURBO 48S PRO COMBI TURBO 48S PRO COMBI (2001) > Deck
Back to

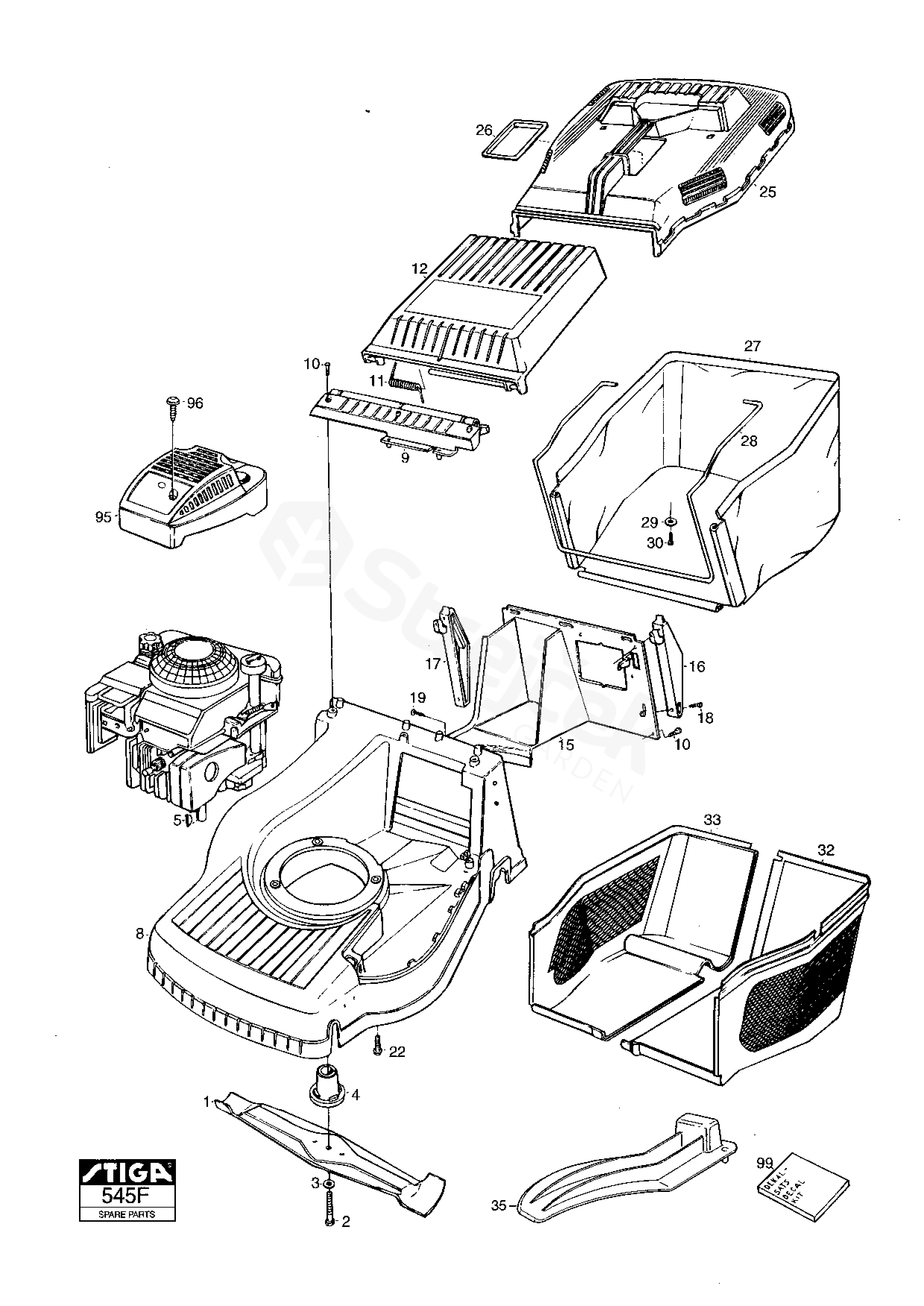

Deck
TURBO 48S PRO COMBI TURBO 48S PRO COMBI (2001)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TURBO 48S PRO COMBI (2001)
1 Blade 1111-9090-01
2 Screw 9987-5251-12
3 Washer 9696-0011-01
4 Blade Hub 1111-9070-01
5 Key 9600-0014-00
8 Chassis, Yellow 1111-3090-01
9 Flap Attachment 1111-2793-01
10 Screw 9947-0616-16
11 Spring 1111-2792-01
12 Stone Guard, Yellow 1111-3283-01
15 Rear Attachment (Combi 48-55) 1111-3335-01
16 Attachment L.H. 1111-3236-01
17 Attachment R.H. 1111-3237-01
18 Screw 9836-9520-12
19 Screw 9838-9522-12
22 Screw 9955-3732-12
25 Collector-Upper Part (Yellow) 1111-2840-01
26 Cover 1111-2764-01
27 Collecting Bag 1111-2844-01
28 Wire Clamp 1111-2843-01
29 Flat washer 9699-0100-02
35 Mulch Plug (Combi 48) 1111-3333-01
99 Label Kit
STIGA 		1111-2893-12
