Spare parts > STIGA > Lawn Mower > TURBO 53 4S COMBI TURBO 53 4S COMBI (2007) [294532141/ST7] > Transmission
Back to

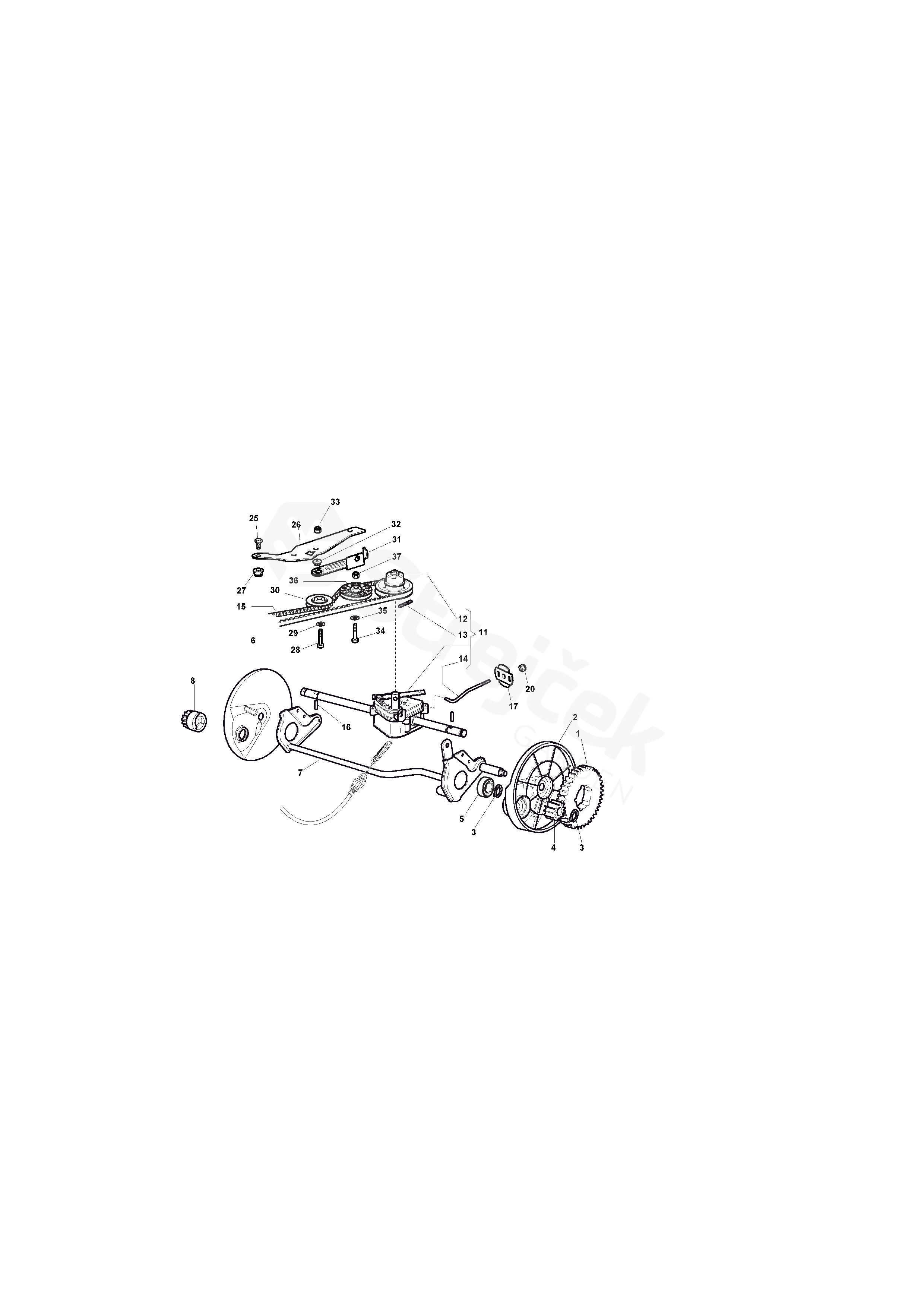

Transmission
TURBO 53 4S COMBI TURBO 53 4S COMBI (2007) [294532141/ST7]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TURBO 53 4S COMBI (2007) [294532141/ST7]
1 Ring Gear 122120105/1
2 Left Wheel Protection 122600093/0
3 Seeger 112608600/0
4 Left pinion 122570120/1
5 Bearing 119216035/0
6 Right Wheel Protection 122600092/0
7 Rear Wheel Axle 381000147/0
8 Right Pinion 122570110/1
11 Gear Box 181003096/0
12 Pulley 122601932/0
13 Elastic Pin 112645700/0
14 Adjustment Rod 122033285/0
15 Belt 135064010/0
16 Pin 122753000/0
17 Washer 322675113/0
20 Nut 112154510/0
25 Screw 112791011/0
26 Lever 322806625/0
27 Nut 112292102/0
28 Screw 112689500/0
29 Washer 112523050/0
30 Pulley 122601915/0
31 Pulley Support 322806623/0
32 Washer 122671656/0
34 Screw 112674700/0
36 Pulley 122601914/0
