Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Lawn Mower
>
TURBO 55 S COMBI TURBO 55 S COMBI (2001) [12-9204-16]
>
Deck
Back to
TURBO 55 S COMBI
TURBO 55 S COMBI (2001) [12-9204-16]
Deck
TURBO 55 S COMBI
TURBO 55 S COMBI (2001) [12-9204-16]

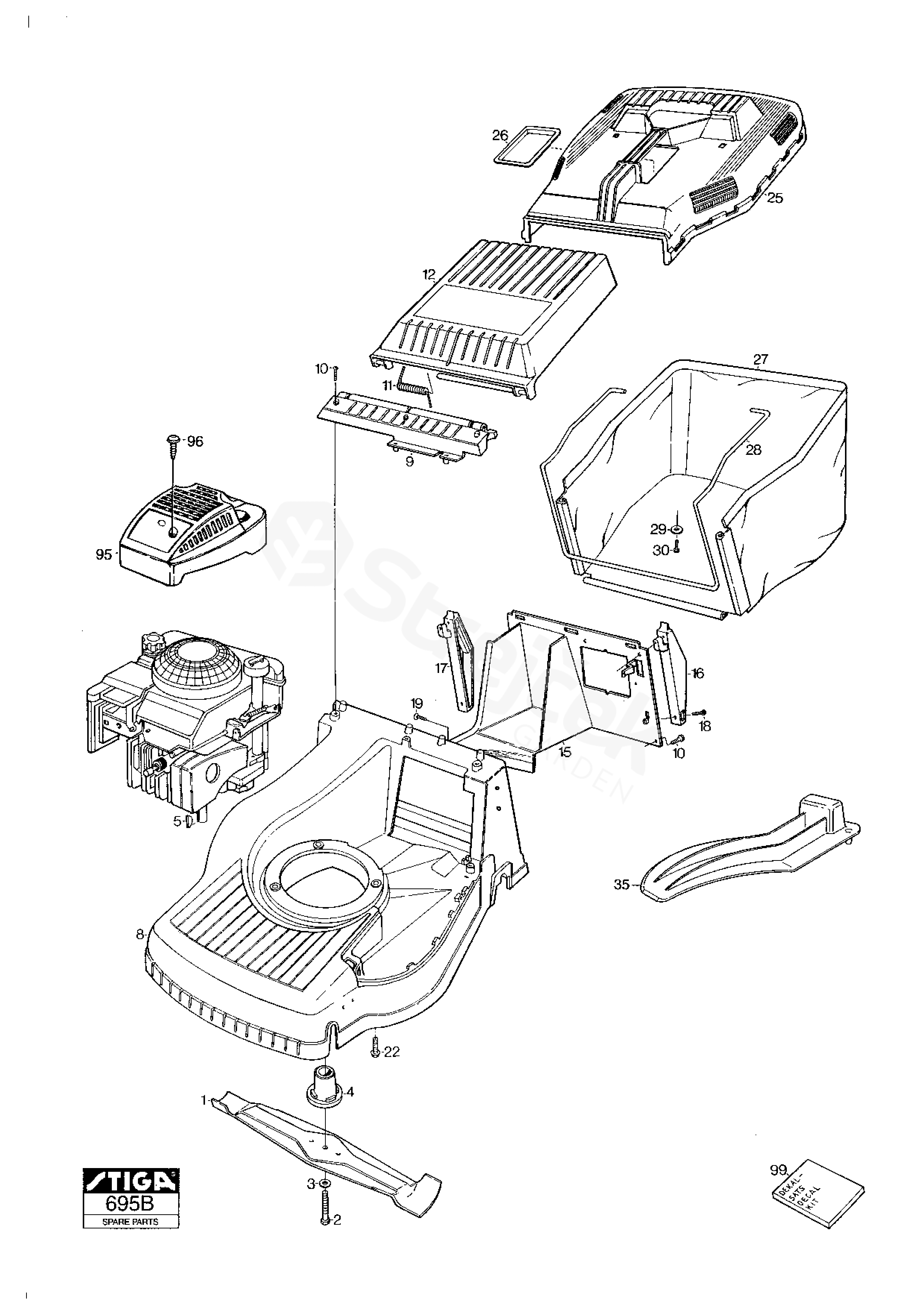

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TURBO 55 S COMBI (2001) [12-9204-16]
1
Blade
1111-9091-01
2
Screw
9987-5251-12
3
Washer
9696-0011-01
4
Blade Hub
1111-9070-01
5
Key
9600-0014-00
8
Chassis, Yellow
1111-3020-01
9
Flap Attachment
1111-2793-01
10
Screw
9947-0616-16
11
Spring
1111-2792-01
12
Stone Guard, Yellow
1111-3283-01
15
Rear Attachment (Combi 48-55)
1111-3335-01
16
Attachment L.H.
1111-3236-01
17
Attachment R.H.
1111-3237-01
18
Screw
9836-9520-12
19
Screw
9838-9522-12
22
Screw
9955-3732-12
25
Collector-Upper Part (Yellow)
1111-2840-01
26
Cover
1111-2764-01
27
Collecting Bag
1111-2844-01
28
Wire Clamp
1111-2843-01
29
Flat washer
9699-0100-02
30
Screw
9838-9522-12
35
Mulch Plug (Combi 55)
1111-3333-02
95
Engine Cover (Black)
9288, 9289, 9687-16
1111-3352-01
96
Screw
9500-9907-01
99
Label Kit
STIGA
1111-2893-12
