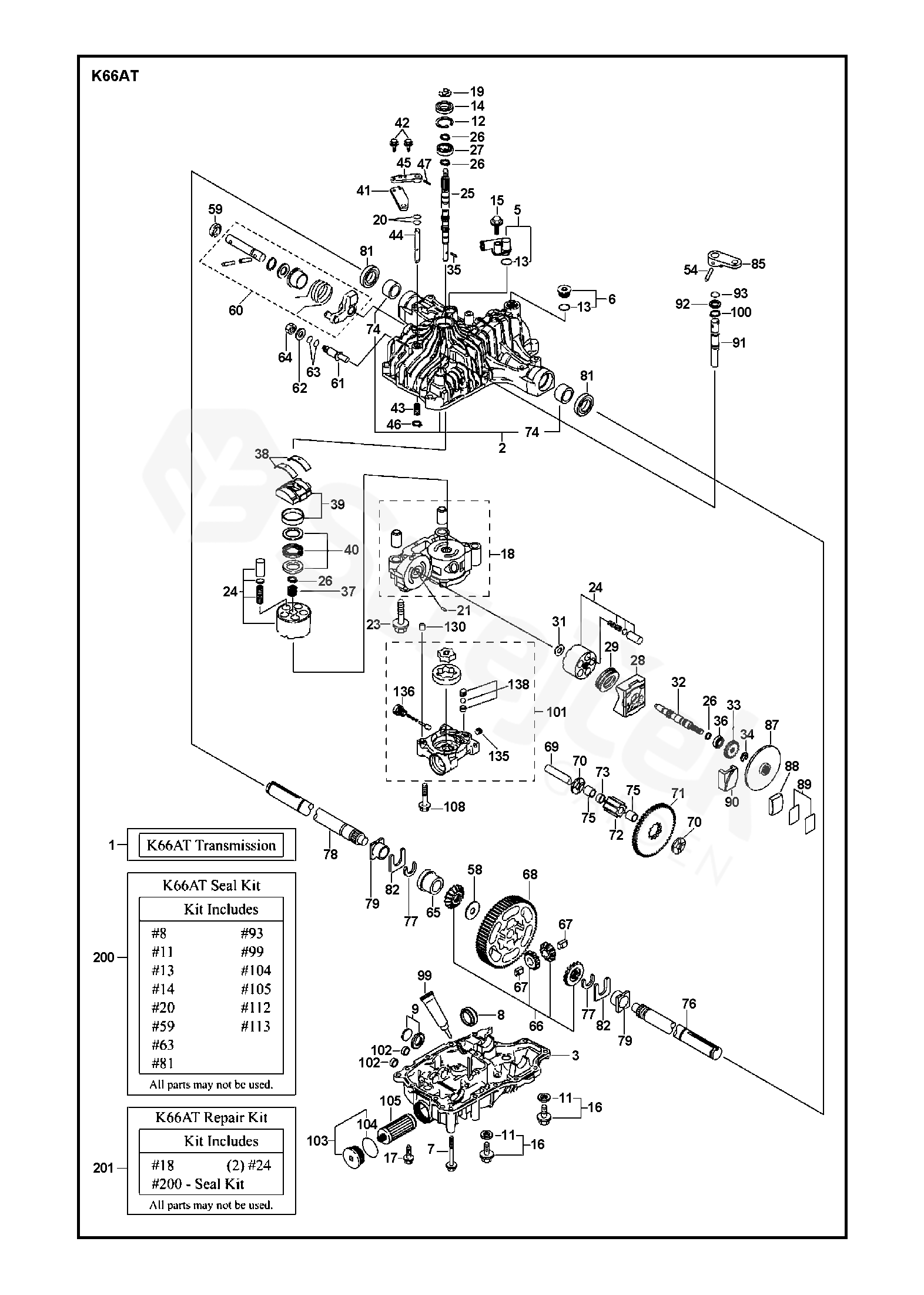

K66AT K66AT, 501114101, 2017-01
>
TRANSMISSION
Back to
K66AT
K66AT, 501114101, 2017-01
TRANSMISSION
K66AT
K66AT, 501114101, 2017-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
K66AT, 501114101, 2017-01
1
PŘEVODOVKA
501114101
2
CASE
590620401
3
LOWER CASE
502450101
5
CLUTCH
574514601
6
KIT
574514701
7
BOLT
535414683
8
FILTER
535414623
9
MAGNET
535414694
11
WASHER
535402825
12
SNAP RING
586889301
13
SEALING
586903601
14
SEALING
506957201
15
BOLT
502462801
16
BOLT
523074701
17
SCREW
535402828
18
BEARING HOUSING
535414625
19
CLIP
535402807
20
O-RING
535402815
21
PIN RETAINING SCREW
535402858
23
BOLT
502462901
24
KIT
578975501
25
SHAFT
535414666
26
RETAINING RING
535402881
27
BEARING
582163001
28
HOUSING
535414622
29
BEARING
535414682
31
WASHER
535402879
32
SHAFT
523075901
33
GEAR
535414667
34
O-RING
535414629
35
PIN RETAINING SCREW
535414692
36
BEARING
535414704
37
SPRING
535414685
38
PLATE
535414686
39
SWASH PLATE
535414633
40
BEARING
523076001
41
LEVER
535402826
42
BOLT
535402827
43
SPRING
502460101
44
SHAFT
535414634
45
LEVER
535402817
46
RETAINING RING
535402849
47
SPRING PIN
586904501
54
PEN
586904601
58
WASHER
502451201
59
SEALING
535402811
60
CONTROL SHAFT
502451101
61
FULCRUM
502452301
62
LOCKWASHER
585468601
63
O-RING
585469401
64
NUT
585536801
65
SLEEVE
535414644
66
DIFFERENTIAL GEAR KIT
502449801
67
PIN RETAINING SCREW
535414656
68
GEAR
523076801
69
SHAFT
574516301
70
WASHER
535414640
71
GEAR
535414659
72
PINION
535414662
73
SLEEVE
535414658
74
BUSHING
535414690
75
NEEDLE BEARING
535414657
76
SHAFT
590620601
77
RETAINING RING
535414696
78
SHAFT
590620701
79
BUSHING
535414697
81
SEAL
590620801
82
WASHER
535414645
85
BRAKE LEVER
586904301
87
BRAKE DISC
535414646
88
BRAKE SHOE
586904901
89
SHIM KIT
502449501
90
BRAKE
586904801
91
SHAFT
535414650
92
WASHER
586904701
93
SEALING
586904401
99
SEAL
578974901
100
RETAINING RING
535414702
101
PUMPCASE ASSY
535414719
102
PLUG
535414679
103
KIT
574515101
104
O-RING
574515201
105
FILTER
535402819
108
BOLT
535414706
130
PEN
585467801
135
VALVE
535466505
136
CHARGE RELIEF VALVE
502460601
138
3RD CHECK VALVE
502451501
200
SEAL KIT
590621101
201
TBD
N/A
