Spare parts > STIGA > Lawn Mower > TURBO PRO 55 4S COMBI TURBO PRO 55 4S COMBI (2007) [12-9404-32] > Transmission
Back to

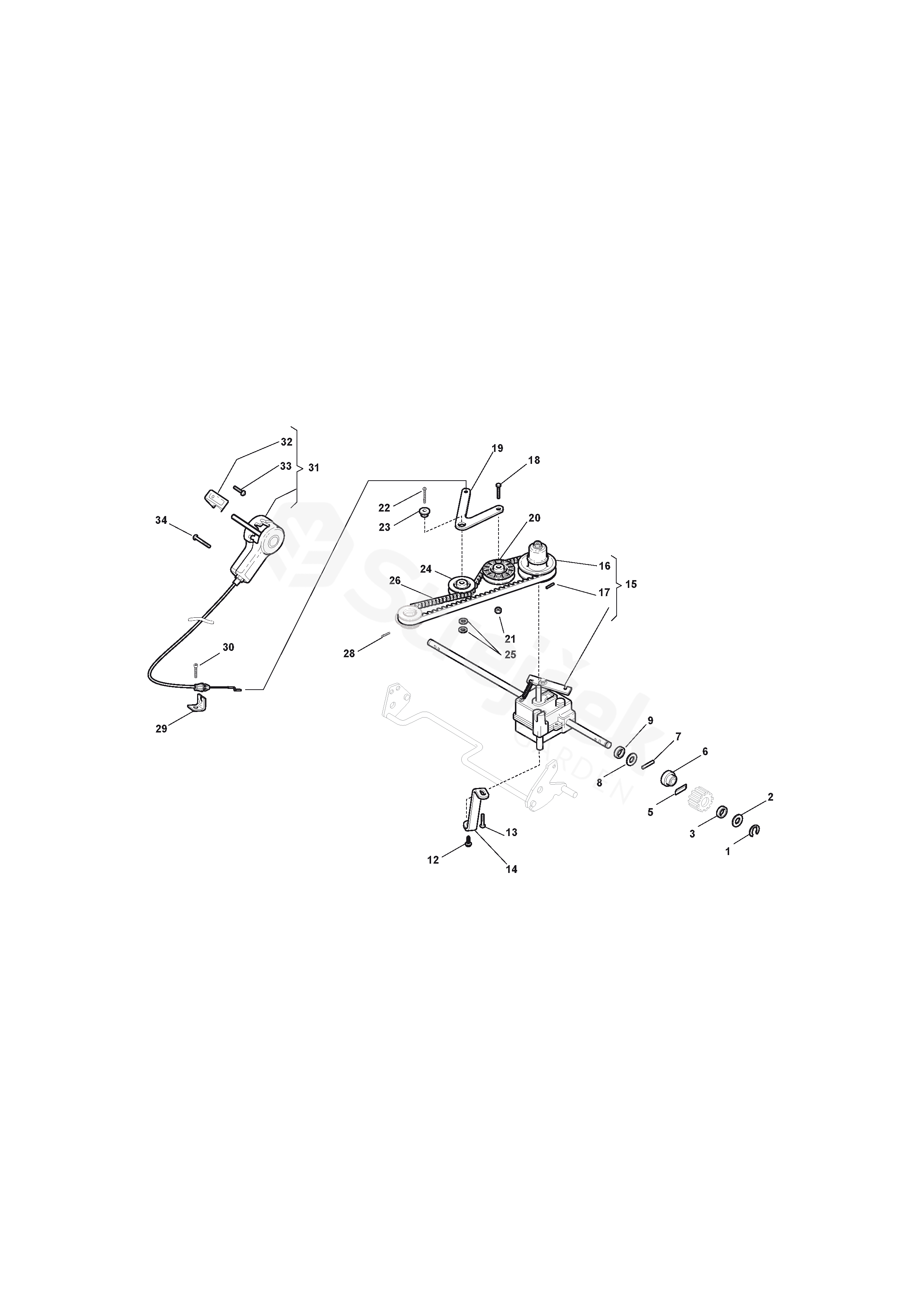

Transmission
TURBO PRO 55 4S COMBI TURBO PRO 55 4S COMBI (2007) [12-9404-32]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TURBO PRO 55 4S COMBI (2007) [12-9404-32]
1 Spring 122450063/0
2 Washer 112520032/0
3 Dust Cover Disc 322160520/0
5 Key 122076645/0
6 Spacer 322170630/1
7 Pin 122753002/0
9 Grommet 119035152/0
12 Screw 112728300/0
13 Screw 112735664/0
14 Clamp 322778407/0
15 Gear Box F.R. 181003086/0
16 Belt Pulley 122601916/0
17 Elastic Pin 112645700/0
18 Screw 112674550/0
19 Driving Lever 322320003/0
20 Pulley 122601914/0
21 Nut 112154510/0
22 Screw 112735669/0
23 Washer 122671656/0
24 Pulley 122601915/0
25 Washer 112523040/0
26 Belt 135064383/0
28 Grub Screw 112714312/0
29 Support 322806619/0
31 Speed Control Ass.Y 381007098/0
32 Knob 322399809/0
34 Screw 112728702/0
