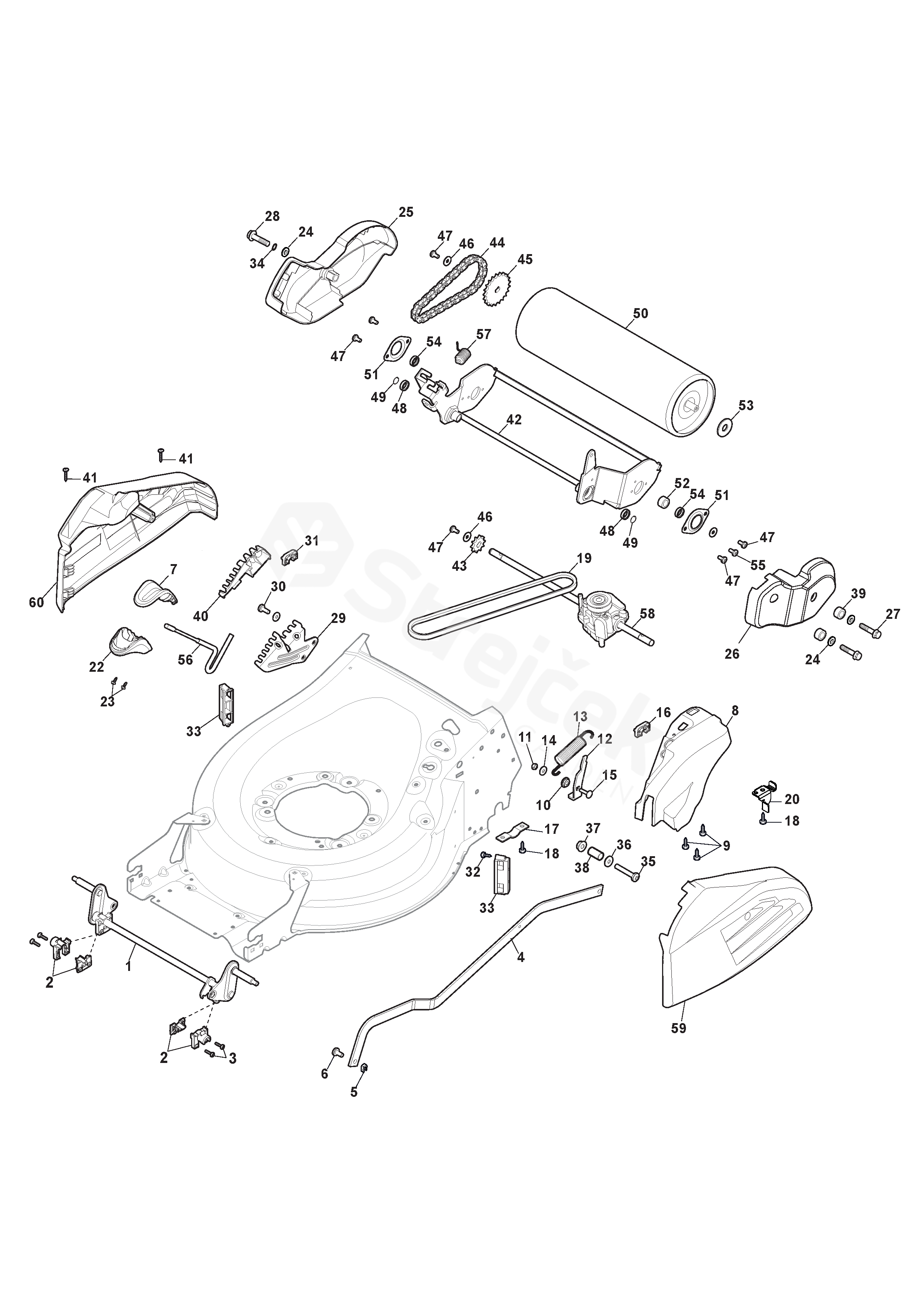

Spare parts - Partlist - TWINCLIP 50 SVE-R B Twinclip 50 SVE-R B (2020) - Deck And Height Adjusting

Everything for your machines

TWINCLIP 50 SVE-R B Twinclip 50 SVE-R B (2020)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Twinclip 50 SVE-R B (2020)

1	Front Wheel Axle From S/N 20BA2WBH000001	381302885/1
2	Support	322785305/1
3	Screw	112728697/0
4	Adjustment Rod From S/N 20BA2WBH000001	322869719/1
5	Plate	112436051/0
6	Pin	122519823/0
7	Cap	322394541/0
8	Cover	322055329/0
9	Screw	112728699/0
10	Pin	122517873/0
11	Nut	112154510/0
12	Bracket	322778475/0
13	Spring	122450480/0
14	Washer	112523040/0
15	Screw	112815270/0
16	Brass	322038407/0
17	Plate	322545147/0
18	Screw	112735654/0
19	Belt	135064393/0
20	Plate	322778491/0
22	Cap	322394537/0
23	Screw	112728706/0
24	Washer	112523040/0
25	Right Carter From 01-September-2018	322060272/2
26	Left Carter From 01-September-2016	322060273/1
27	Screw	112735592/0
28	Screw	112735594/0
29	Sector, Height Adjustment	322735605/0
30	Screw	112735654/0
31	Brass	118737864/0
32	Screw	112728706/0
33	Plate	322546053/0
34	Or Ring	119035002/0
35	Screw	112691200/0
36	Washer	122671651/0
37	Nut	112155015/0
38	Spacer	122167840/0
39	Spacer	122170610/0
40	Plate	322570216/0
41	Screw	112728696/0
42	Rear Wheel Axle	381302907/0
43	Ring Gear To 31-August-2016	122120107/0
44	Chain To 31-August-2016	115189003/0
45	Ring Gear To 31-August-2016	122120106/0
46	Washer	112523040/0
47	Screw	112735662/1
48	Bearing	119216035/0
49	Seeger	112608600/0
50	Roller	381007403/0
51	Bearing Flange	322207325/0
52	Spacer	122170820/0
53	Washer	112523100/0
54	Bearing	119216036/0
55	Screw	112735664/0
56	Lever, Height Adjustment	322321551/0
57	Spring	122446194/0
58	Gear Box	181003121/0
59	Left Carter Black	322060296/0
60	Right Carter Black	322060295/0
