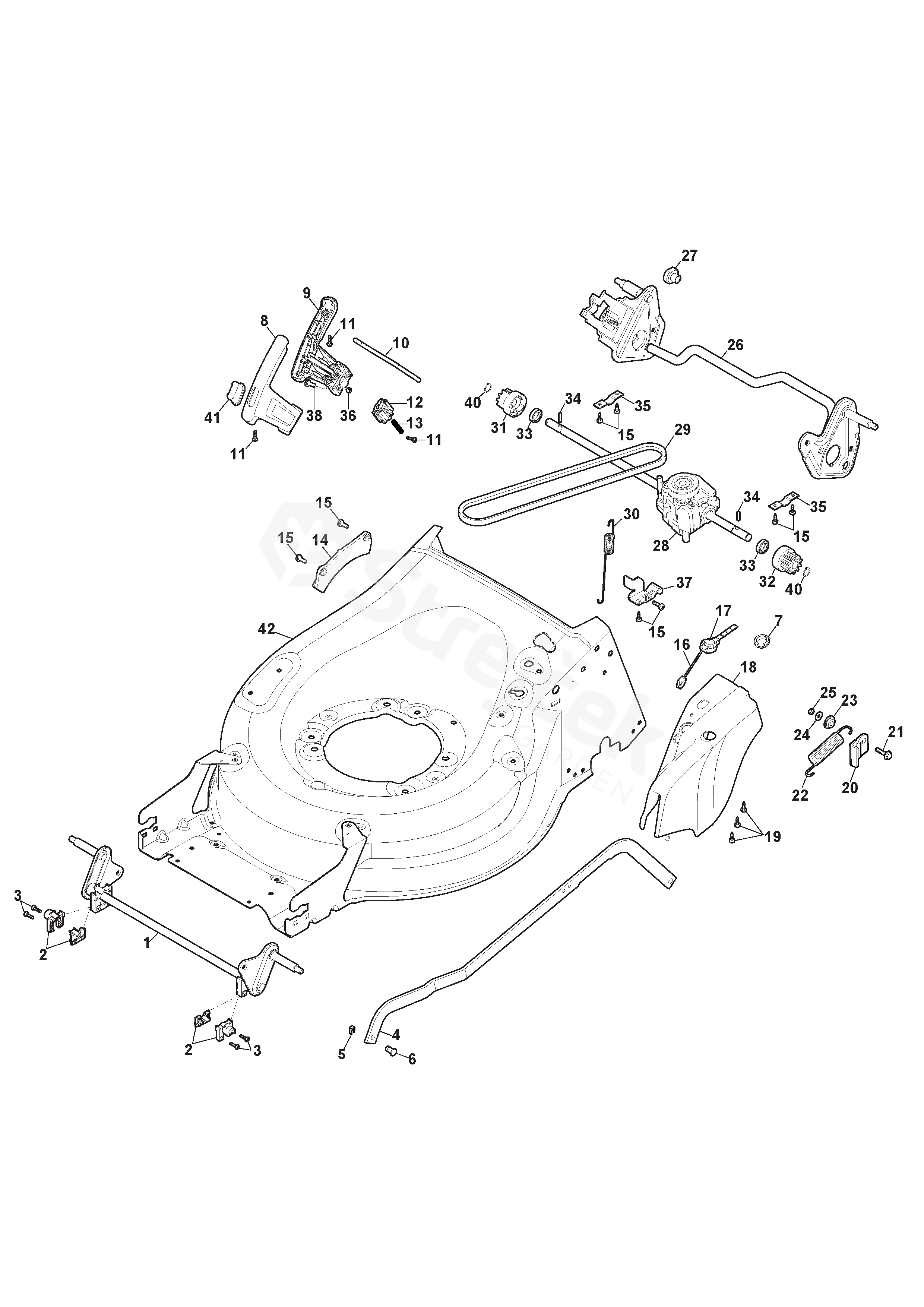

Spare parts - Partlist - TWINCLIP 55 S H BBC TWINCLIP 55 S H BBC (2018) - Deck And Height Adjusting

Everything for your machines

TWINCLIP 55 S H BBC TWINCLIP 55 S H BBC (2018)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TWINCLIP 55 S H BBC (2018)

1	Front Wheel Axle From S/N 20BA2WBH094132	381302903/1
2	Support	322785305/1
3	Screw	112728697/0
4	Adjustment Rod From S/N 20BA2WBH000001	322869727/1
5	Plate	112436051/0
6	Pin	122519823/0
7	Fairlead	118564526/0
8	Upper Handle Black	322394534/0
9	Lower Handgrip Black and Yellow	322394554/0
10	Rod	322869723/0
11	Screw	112728697/0
12	Slide	322109580/0
13	Spring	122450484/0
14	Sector, Height Adjustment	322735592/0
15	Screw	112735654/0
16	Position Plate	322602031/0
17	Lens	322602027/0
18	Deck, Adjustment	322060304/0
19	Screw	112728699/0
20	Spring Clamp	322551683/0
21	Screw	112791500/0
22	Spring	122450480/0
23	Pin	122517873/0
24	Washer	112523040/0
25	Nut	112154510/0
26	Rear Wheel Axle From S/N 20BA2WBH000001	381302939/1
27	Brass	322038407/0
28	Gear Box	181003118/0
29	Belt From 01-September-2018	135063902/0
30	Spring	122450478/0
31	Right Pinion	122570110/1
32	Left pinion	122570120/1
33	Bearing	119216035/0
34	Pin	122753000/0
35	Plate	322545147/0
36	Nut	112154330/0
37	Plate	322778489/0
38	Screw	112735654/0
40	Seeger	112608600/0
41	Button	322602029/0
42	Grey Deck	381004855/1
