Spare parts > STIGA > Lawn Mower > COLLECTOR 46 S EL COLLECTOR 46 S EL (2007) [24-3868-43] > Wheel Suspension Motor
Back to

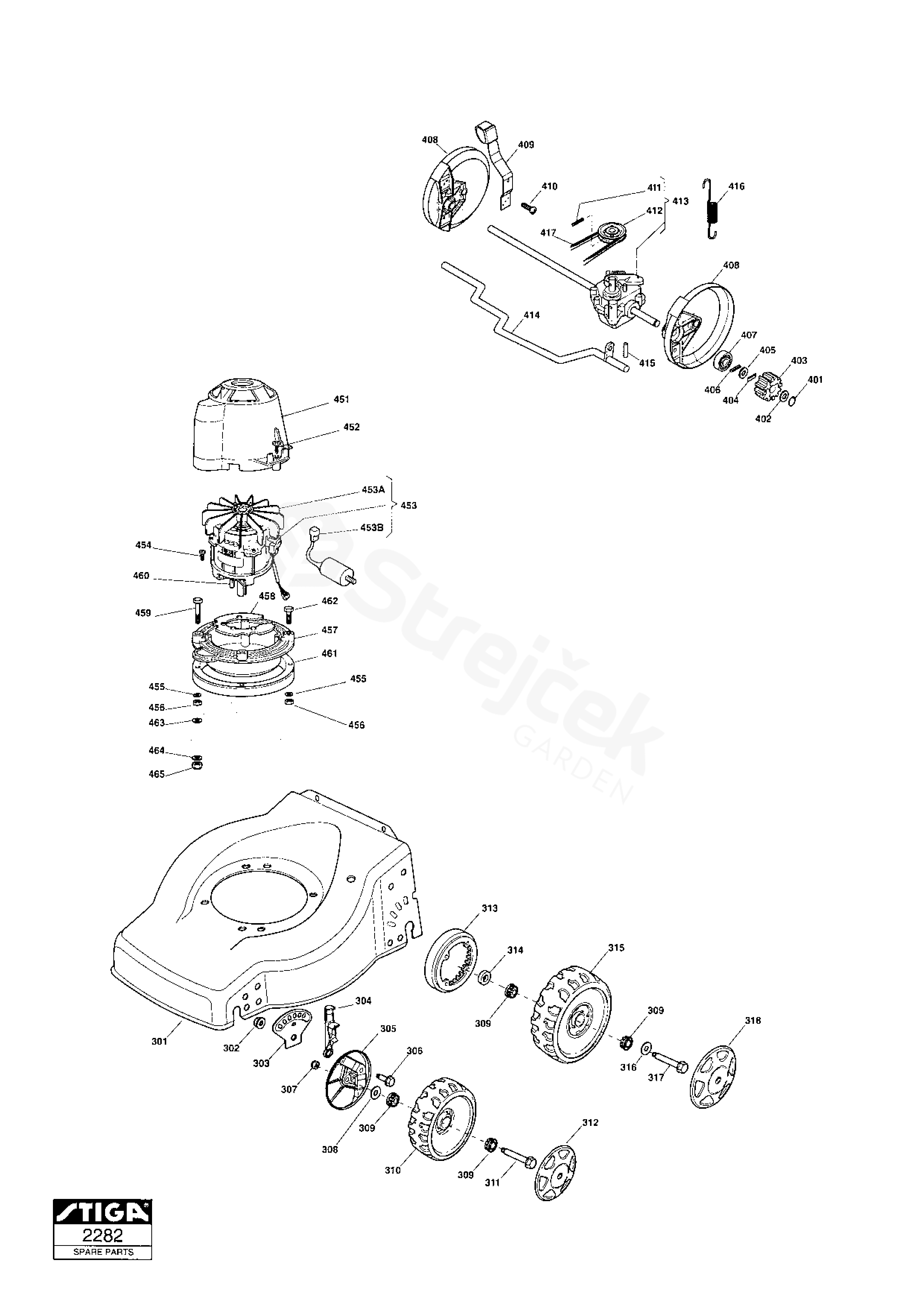

Wheel Suspension Motor
COLLECTOR 46 S EL COLLECTOR 46 S EL (2007) [24-3868-43]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For COLLECTOR 46 S EL (2007) [24-3868-43]
301 Yellow Deck 381002542/0
302 Nut 122131750/0
303 Sector, Height Adjustment 322735557/0
304 Lever, Height Adjustment 381003306/0
305 Protection, Wheel 322600096/0
306 Pin 122524324/0
307 Nut 112155000/0
308 Antifriction Washer 325670011/0
309 Bushing 122034508/0
310 Wheel Ø 165 322686091/1
311 Pin 122524341/0
312 Hub Cap Yellow 322110394/0
313 Wheels Crown 322120109/0
314 Spacer 322170622/0
315 Wheel 322686093/0
316 Washer 112523050/0
317 Screw 112735599/0
318 Hub Cap Yellow 122110309/0
401 Seeger 112608520/0
402 Dust Cover Disc 322160520/0
403 Pinion 122570125/0
404 Key 122076645/0
405 Dust Cover Disc 322160520/0
406 Pin 112622620/0
407 Bearing 122122202/0
408 Protection, Wheel 322600106/1
409 Lever, Height Adjustment 381003303/0
410 Screw 112728689/0
411 Grub Screw 112713801/0
412 Pulley 122601904/0
413 Transmission assy
Inkl. pos 411 - 412 		181003093/0
414 Rear Wheel Axle 122033393/0
415 Pin 122753001/0
416 Spring 122450438/0
417 Belt 135063750/0
451 Cover Support 322785210/0
452 Screw 112728710/0
453 Electric Motor 1800W
Inkl. pos 453A - 453B 		118563641/0
454 Screw 12735410/0
455 Grower 112583500/0
456 Nut 112293200/0
457 Flange 122207211/3
458 Ventilation Screen 122720360/1
459 Screw
M8 x 60 		112691800/0
460 Key 112139440/0
461 Spacer 322170960/1
462 Screw
M8 x 75 		112692000/0
463 Washer 122671651/0
464 Washer 112521350/0
465 Nut 112155000/0
453A Fan Motor Atb 118740054/0
453B Condenser 118222039/0
