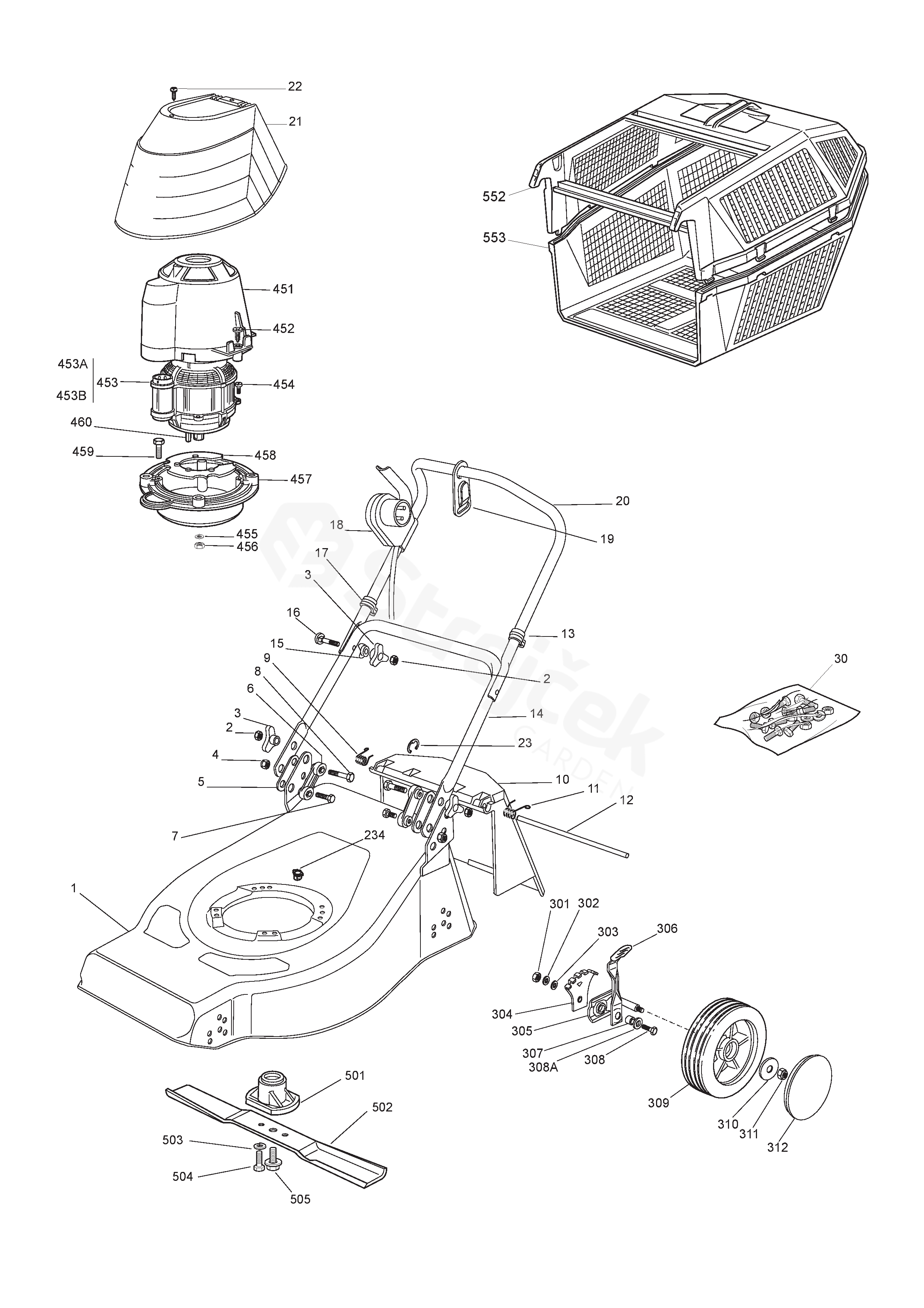

COLLECTOR 48 EL COLLECTOR 48 EL (2006)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For COLLECTOR 48 EL (2006)

1	Chassis, Yellow	1136-2413-01
2	Nut	9799-0831-02
3	Knob	1136-0666-01
4	Nut	9747-0831-02
5	Plate-Outer	1136-2414-01
6	Plate-Inside	1136-0683-01
7	Screw	1136-2415-01
8	Screw	9997-0840-16
9	Spring-Rh	1111-3530-01
10	Stone Guard	1136-0686-01
11	Spring-Lh	1111-3531-01
12	Pivot Pin	1136-0680-01
13	Fair Led	1136-0661-01
14	Handle-Lower	1136-0758-01
15	Washer	1136-0693-01
16	Screw	1136-0620-01
17	Anchor Clamp	1136-0660-01
18	Switch	1111-3613-01
19	Fair Led	1136-0662-01
20	Handle-Upper	1136-1437-01
21	Cover	1136-2416-01
22	Screw	9836-9525-12
23	Snap Ring	1136-0603-01
30	Outfit, Screws	1136-2417-01
234	Rubber Insert	1136-0665-01
301	Nut	9799-0831-02
302	Washer	9683-0030-02
303	Washer	1136-0014-01
304	Sector, Height Adjustment	1136-0696-01
305	Wheel Support	1136-0754-01
306	Lever, Height Adjustment	1136-0744-01
307	Spacer	1136-0084-01
308	Screw	9997-0830-16
309	Wheel	1136-2337-01
310	Washer	9699-0056-02
312	Hub Cap-Yellow	1136-2272-01
451	Cover Support	1136-1741-01
452	Screw	1136-1682-01
453	Electric Motor 1600W	1136-1687-01
454	Screw	9836-9635-12
455	Washer	9683-0030-02
456	Nut	9799-0831-02
457	Flange	1136-1706-01
458	Ventilation Screen	1136-1739-01
459	Screw	1136-0617-01
460	Key	1136-1677-01
501	Hub	1136-1725-01
502	Blade	1111-9121-01
503	Washer	9683-0030-02
504	Screw	9997-0820-16
505	Blade Bolt	1136-0752-01
552	Grass Box-Upper	1136-0676-01
553	Grass Box-Lower	1136-0677-01
308A	Washer	9699-0028-02
453A	Fan	1136-1689-01
453B	Condensor	1136-0626-01
