Spare parts > STIGA > Lawn Mower > COMBI 48 ES COMBI 48 ES (2014) > Electric Motor/Blade
Back to

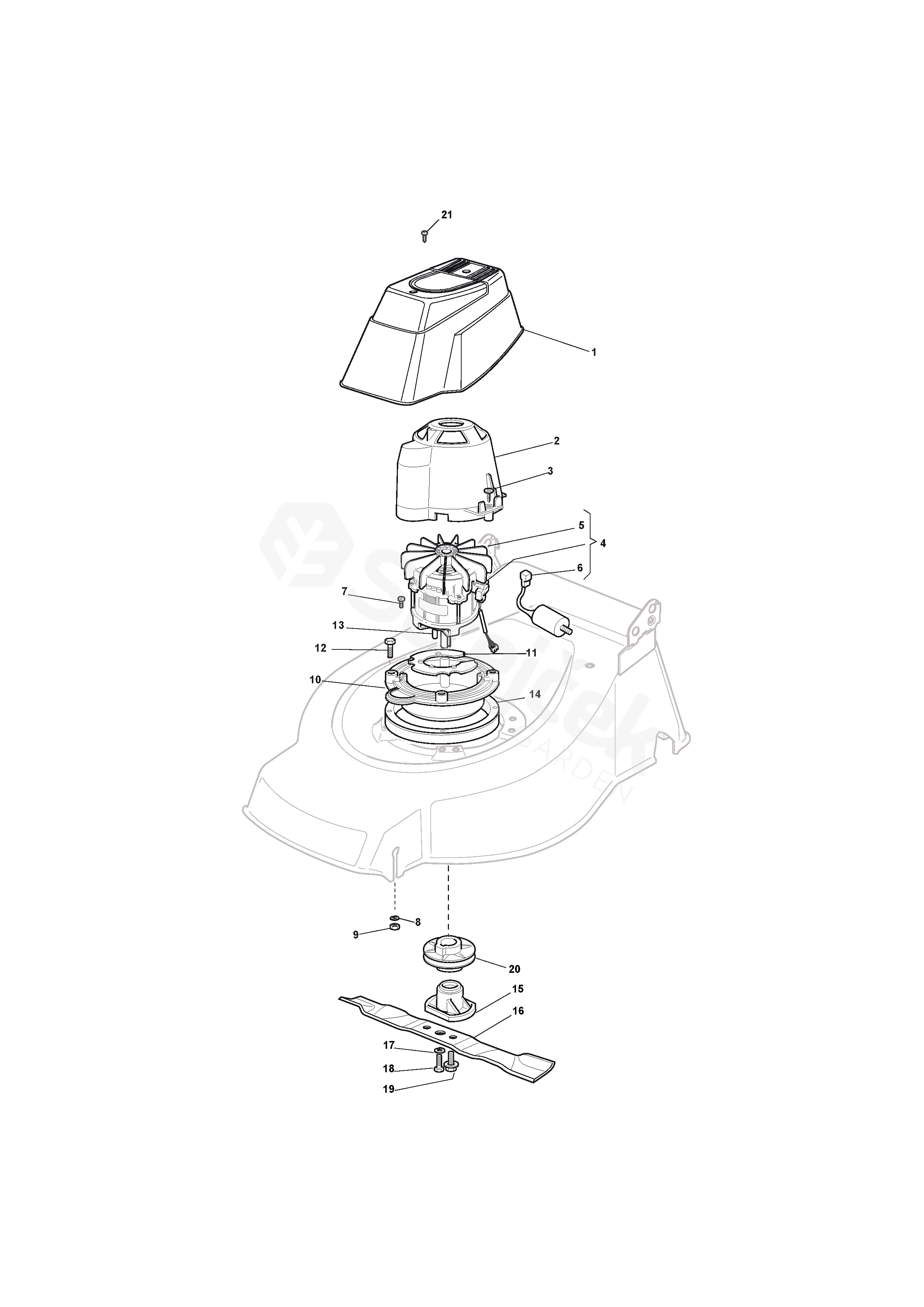

Electric Motor/Blade
COMBI 48 ES COMBI 48 ES (2014)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For COMBI 48 ES (2014)
1 Cover, Yellow 322055139/0
2 Support, Cover 322785210/1
3 Screw 112728710/0
4 Electric Motor 1800W
230V (1800W) 		118563641/0
5 Fan 118740049/0
6 Condenser 118222039/0
7 Screw 112735410/0
9 Nut 112293200/0
10 Electrical Motor Flange 322207211/4
11 Ventilation Screen 322720360/2
12 Screw 112691800/0
13 Key 112139440/0
14 Spacer 322170960/1
15 Hub 122463186/2
16 Left Mulching, Blade 181004346/3
17 Grower 112583500/0
18 Screw 112793101/0
19 Screw 381004352/1
20 Pulley 122601911/0
21 Screw 112728680/0
