Spare parts > STIGA > Lawn Mower > MULTICLIP 50 EL SVAN MULTICLIP 50 EL SVAN (2006) > Wheel Suspension Motor
Back to

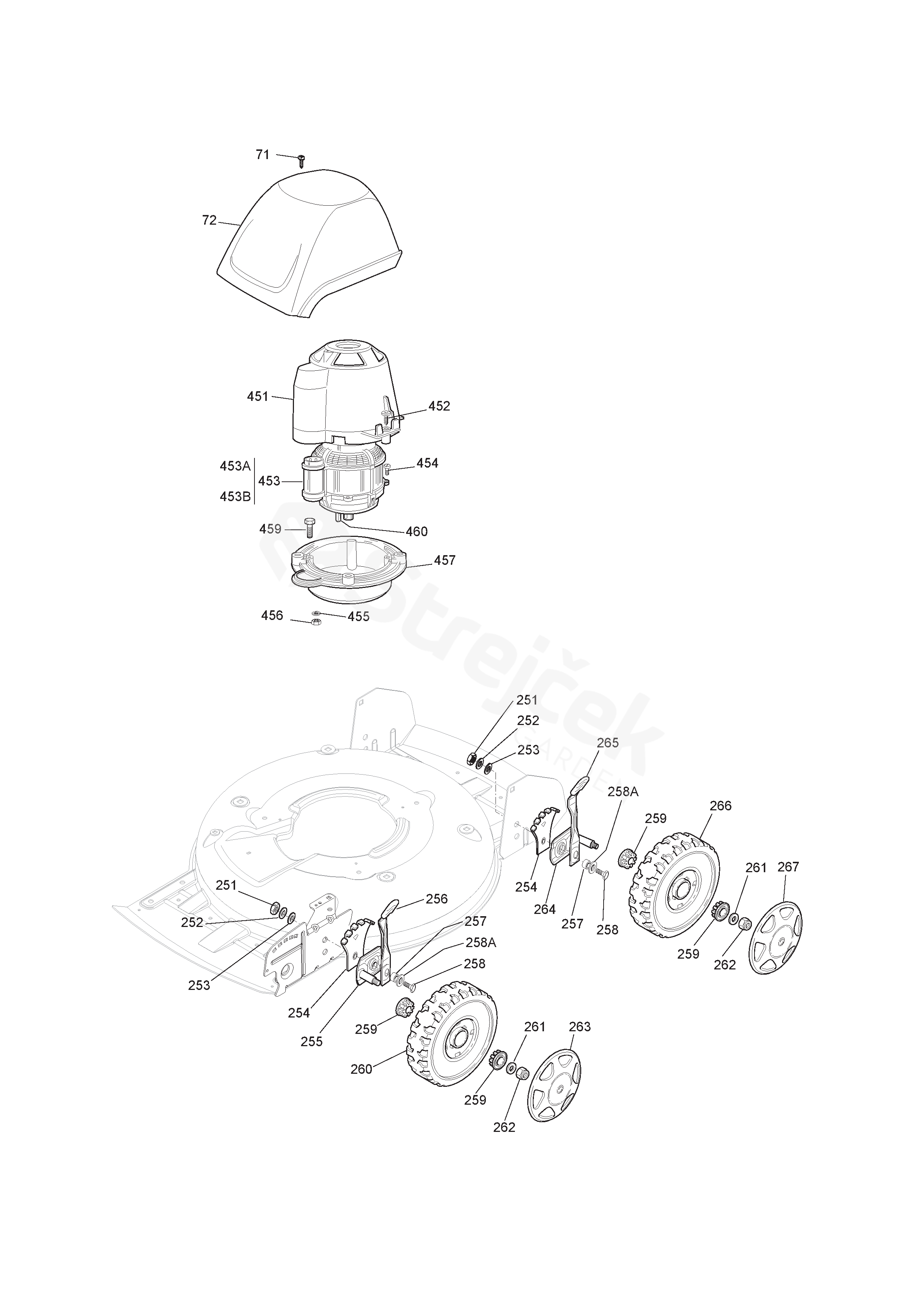

Wheel Suspension Motor
MULTICLIP 50 EL SVAN MULTICLIP 50 EL SVAN (2006)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MULTICLIP 50 EL SVAN (2006)
71 Screw 9836-9525-12
72 Cover 1136-2379-01
251 Nut 9799-0831-02
252 Washer 9683-0030-02
253 Washer 1136-0014-01
254 Sector, Height Adjustment 1136-0696-01
255 Wheel Support 1136-0754-01
256 Lever, Height Adjustment 1136-0744-01
257 Spacer 1136-0084-01
258 Screw 9997-0830-16
259 Bushing 1136-0634-01
260 Wheel 1136-2015-01
261 Washer 9699-0056-02
262 Nut 9747-0831-02
263 Hub Cap-Yellow 1136-1894-01
264 Wheel Support 1136-1381-01
265 Lever, Height Adjustment 1136-1380-01
266 Wheel 1136-2015-01
267 Hub Cap-Yellow 1136-1894-01
451 Cover Support 1136-1741-01
452 Screw 1136-1682-01
453 Electric Motor
1600W 		1136-1687-01
454 Screw 9836-9635-12
455 Washer 9683-0030-02
456 Nut 9799-0831-02
457 Flange 1136-1706-01
459 Screw 1136-0617-01
460 Key 1136-1677-01
258A Washer 9699-0090-02
453A Fan 1136-1689-01
453B Condensor 1136-0626-01
