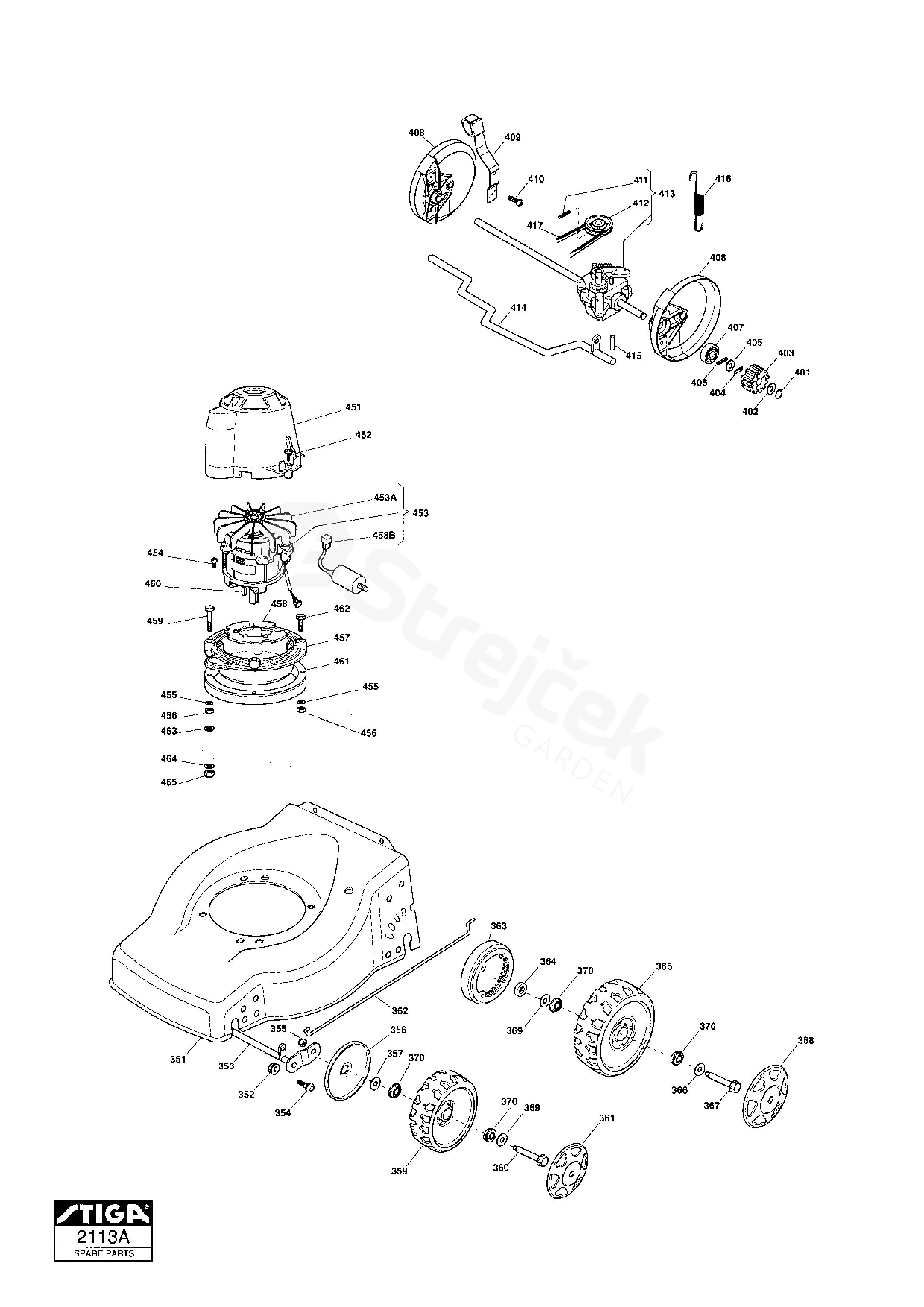

SILENT 45S COMBI EL SILENT 45S COMBI EL (2007)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SILENT 45S COMBI EL (2007)

351	Yellow Deck	381002542/0
352	Nut	112155000/0
353	Front Wheel Axle	381000153/0
354	Screw	112760600/0
355	Nut	122131750/0
356	Protection, Wheel	322600095/0
357	Washer	122671651/0
359	Wheel Ø 165	322686091/1
360	Pin	122524341/0
361	Hub Cap Yellow	322110394/0
362	Adjustment Rod	122033317/0
363	Wheels Crown	322120109/0
364	Spacer	322170622/0
365	Wheel	322686093/0
366	Washer	112523050/0
367	Screw	112735599/0
368	Hub Cap Yellow	122110309/0
369	Washer	122675100/0
370	Bearing	122122200/0
401	Seeger	112608520/0
402	Dust Cover Disc	322160520/0
403	Pinion	122570125/0
404	Key	122076645/0
405	Dust Cover Disc	322160520/0
406	Pin	112622620/0
407	Bearing	122122202/0
408	Protection, Wheel	322600106/1
409	Lever, Height Adjustment	381003303/0
410	Screw	112728689/0
411	Grub Screw	112713801/0
412	Pulley	122601904/0
413	Transmission assy Inkl. pos 411 - 412	181003093/0
414	Rear Wheel Axle	122033393/0
415	Pin	122753001/0
416	Spring	122450438/0
417	Belt	135063750/0
451	Cover Support	322785210/0
452	Screw	112728710/0
453	Electric Motor 1800W Inkl. pos 453A - 453B	118563641/0
454	Screw	12735410/0
455	Grower	112583500/0
456	Nut	112293200/0
457	Flange	122207211/3
458	Ventilation Screen	122720360/1
459	Screw M8 x 60	112691800/0
460	Key	112139440/0
461	Spacer	322170960/1
462	Screw M8 x 75	112692000/0
463	Washer	122671651/0
464	Washer	112521350/0
465	Nut	112155000/0
453A	Fan Motor Atb	118740054/0
453B	Condenser	118222039/0
