Spare parts > STIGA > Lawn Mower > TURBO 41 EL TURBO 41 EL (2006) > Wheel Suspension
Back to

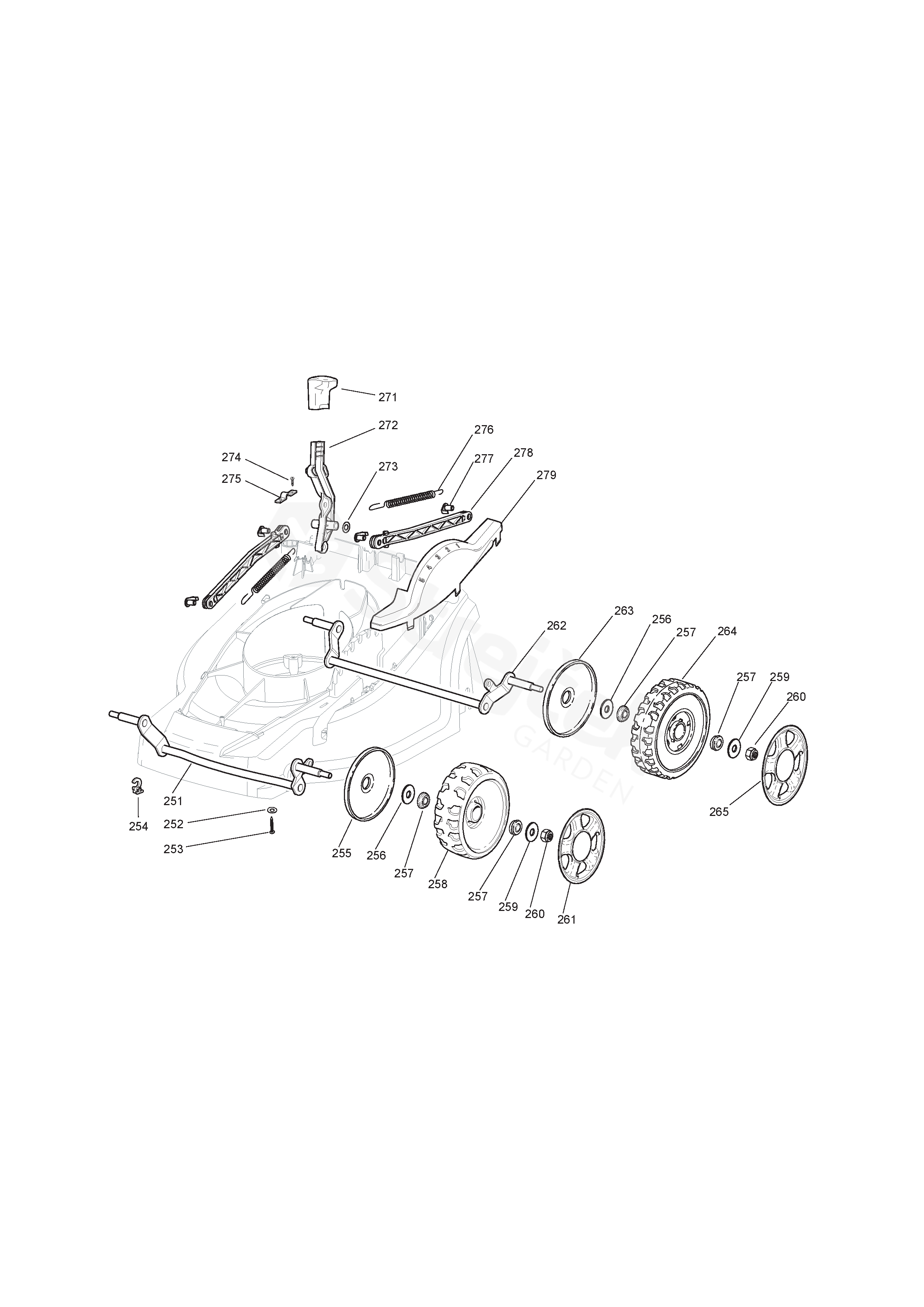

Wheel Suspension
TURBO 41 EL TURBO 41 EL (2006)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TURBO 41 EL (2006)
251 Front Wheel Axle 1136-2020-01
252 Washer 9699-0085-02
253 Screw 9836-9525-12
254 Spacer 1136-2284-01
255 Protection, Wheel 1117-1161-01
256 Washer 9694-0003-00
257 Ball Bearing 1136-0655-01
258 Wheel 1136-2014-01
259 Washer 9699-0056-02
260 Nut 9747-0831-02
261 Hub Cap-Grey 1136-1925-01
262 Rear Wheel Axle 1136-2021-01
263 Wheel Cover 1111-3341-01
264 Wheel 1136-2015-01
265 Hub Cap-Grey 1136-1926-01
271 Knob 1136-2003-01
272 Lever, Height Adjustment 1136-2000-01
273 Washer 1136-2013-01
274 Screw 9836-9216-12
275 Clamp 1136-0256-01
276 Spring 1136-2005-01
277 Pin 1136-2010-01
278 Tie Rod 1136-2017-01
279 Cover 1136-2270-01
