Spare parts > STIGA > Front Mowers > E-PARK 220 E-PARK 220 (2019) > PTO
Back to

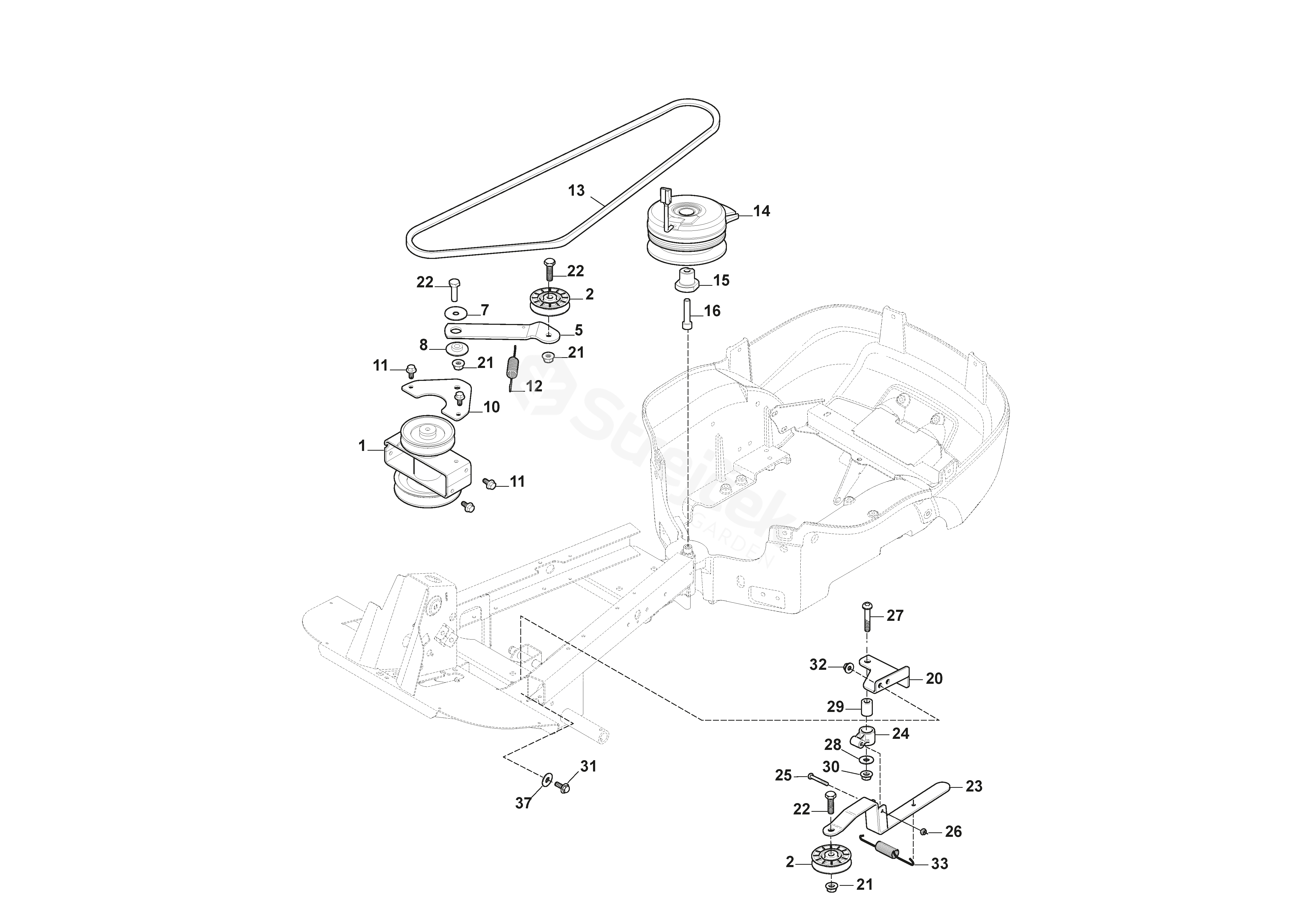

PTO
E-PARK 220 E-PARK 220 (2019)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For E-PARK 220 (2019)
1 Pulley 387605024/0
2 Tension Roller (Grey) 387605008/0
5 Tightener Lever 337315015/0
7 Washer 9699-0109-02
8 Washer 1134-0222-00
10 Plate 387547051/0
11 Screw 9945-0816-16
12 Spring 1137-1029-01
13 Drive Belt
Replaced by Service Code: 1134-9068-01 		9585-0127-01
14 Magnet Clutch 1137-0863-01
15 Bushing 137038013/0
16 Screw 112760565/0
21 Nut 9739-1031-22
22 Screw 112794400/0
23 Lever 387318257/0
24 Tension Arm Attachment 1134-6314-01
25 Screw 112689500/0
26 Nut 112154510/0
27 Screw 112794987/0
28 Washer 9699-0030-02
29 Spacer 1134-4619-01
31 Screw 9959-0820-16
32 Nut 112154220/0
37 Washer 112521350/0
