STIGA
>
Front Mowers
>
PARK MIRAGE 5.0 PARK MIRAGE 5.0 (2011)
>

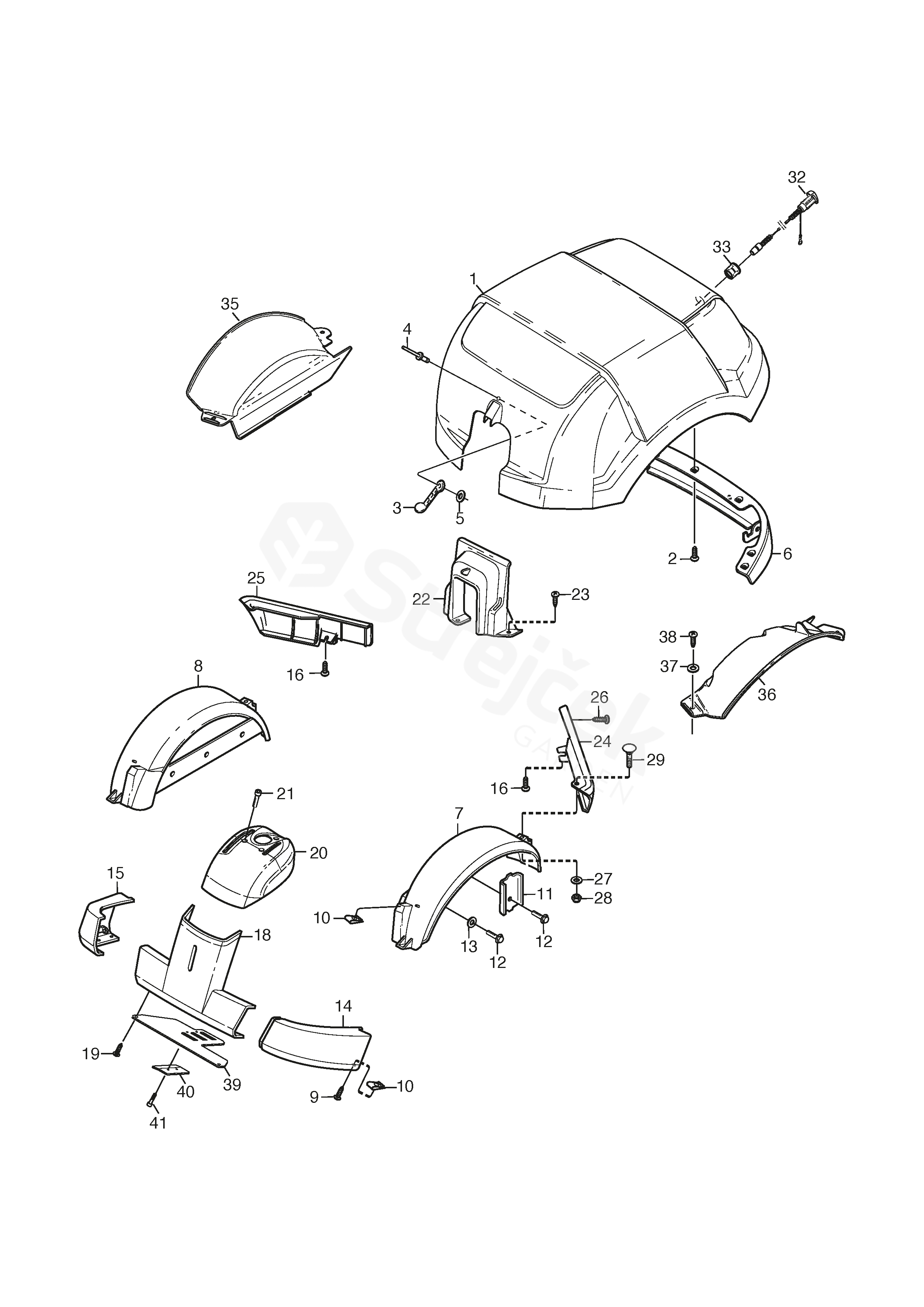

Body Work
Back to
PARK MIRAGE 5.0
PARK MIRAGE 5.0 (2011)
Body Work
PARK MIRAGE 5.0
PARK MIRAGE 5.0 (2011)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK MIRAGE 5.0 (2011)
1
Motor Hood Assy
1137-0328-01
2
Screw
9838-9530-12
3
Rubber Strap (3 Pcs)
1134-9028-01
4
Pop Rivet
9632-0516-00
5
Washer
9699-0120-02
6
Fender-Rear (Grey)
1134-5337-04
7
Mudguard-Lh (Grey) 7-14
1134-5308-01
8
Mudguard-Rh (Grey) 7-14
1134-5308-02
9
Screw
9893-0616-16
10
Clips
1134-4176-01
11
Support Plate
1137-0088-01
12
Screw
9945-0816-16
13
Washer
9699-0056-02
14
Front Bumper
1137-0315-01
15
Bumper Front-Lh (Grey)
1134-5306-01
16
Screw
9893-0616-16
18
Front-Lower
1137-0314-01
19
Screw
9893-0616-16
20
Front Cover Yellow
1134-5320-02
21
Screw
9946-0525-16
22
Hood Support
1134-6241-01
23
Screw
9893-0616-16
24
Moulding-Left (Grey)
1134-3970-05
25
Moulding Right-Grey
1134-3970-02
26
Screw
9893-0616-16
27
Washer
9699-0060-02
28
Lock Nut
9747-0631-02
29
Screw
9897-0616-16
32
Intake Cable
1137-0409-01
33
Expandable Sleeve
1137-0412-01
35
Inner Mudguard-Rh
1137-0303-01
36
Inner Mudguard-Lh
1137-0304-01
37
Washer
9699-0060-02
38
Screw
9893-0616-16
39
Mounting plate
1137-0421-01
40
Bracket
1137-0422-01
41
Screw
9939-0435-12
