Spare parts > STIGA > Front Mowers > PARK MIRAGE 5.0 PARK MIRAGE 5.0 (2011) > Control Units
Back to

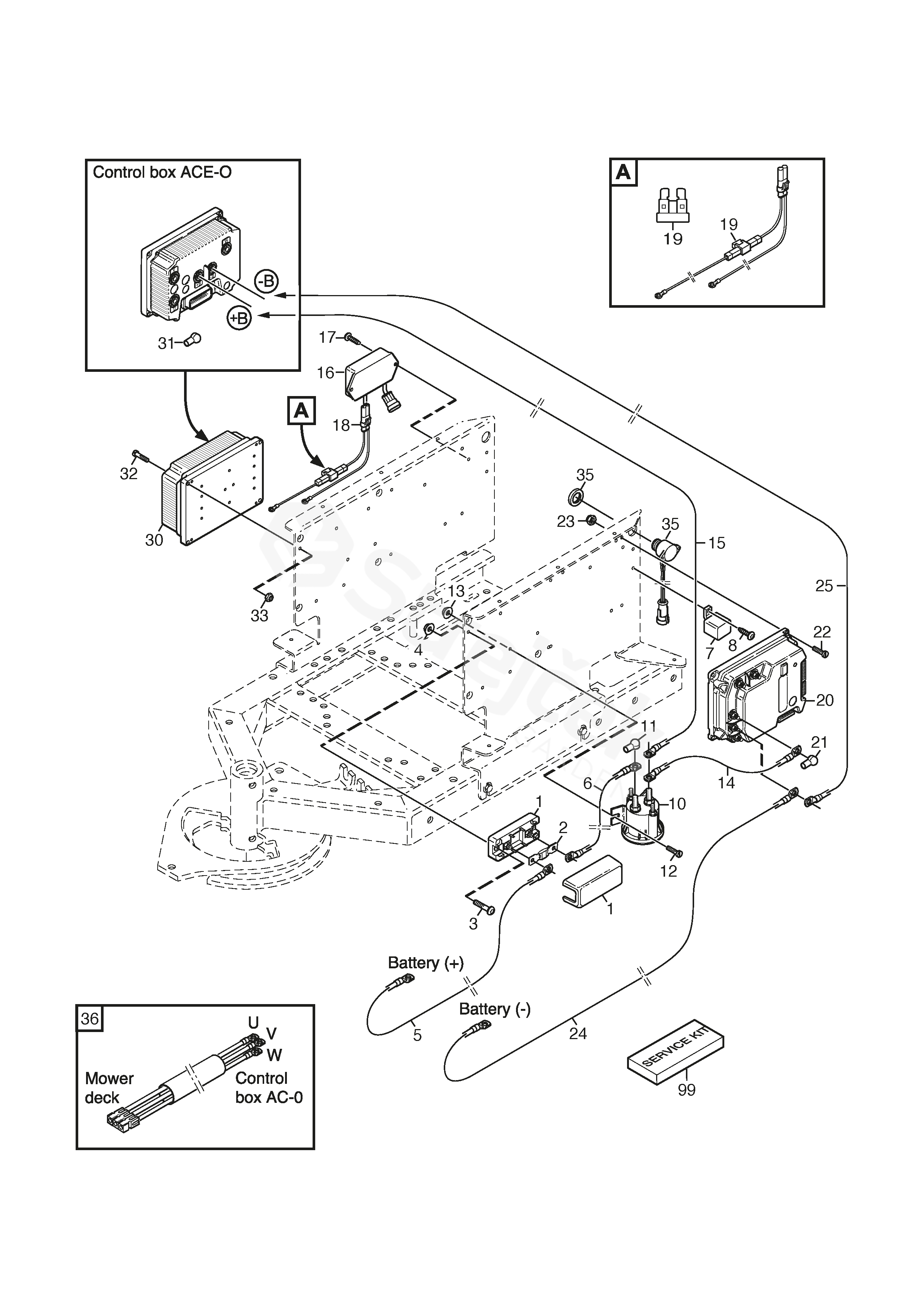

Control Units
PARK MIRAGE 5.0 PARK MIRAGE 5.0 (2011)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK MIRAGE 5.0 (2011)
1 Fuse Box 9400-0368-01
2 Fuse 250A 9400-0376-01
3 Screw 9943-0516-16
4 Nut 9739-0531-22
5 Cable (+) 1137-0402-01
6 Cable (+) 1137-0403-01
7 Relay 1134-2871-01
8 Screw 9943-0516-16
10 Relay 9400-0369-01
11 Pole Guard 9400-0379-01
12 Screw 9860-0520-16
13 Nut 9739-0531-22
14 Cable (+) 1137-0404-01
15 Cable (+) 1137-0405-01
16 Cutting Height Control 1137-0418-01
17 Screw 9943-0516-16
18 Harness 1137-0420-01
19 Fuse (10A) Red 1134-3496-01
20 Control Box 9400-0366-01
21 Pole Guard 9400-0379-01
22 Screw 9860-0520-16
23 Nut 9747-0531-02
24 Cable (-) 1137-0406-01
25 Cable (-) 1137-0407-01
30 Control Box 9400-0367-01
31 Pole Guard 9400-0379-01
32 Screw 9860-0630-16
33 Lock Nut 9747-0631-02
35 Buzzer 1134-7530-02
36 Cable Harness-Deck Motor 1137-0397-01
99 Service kit: Software + cable 1139-2119-01
