Spare parts > STIGA > Front Mowers > PARK MIRAGE 5.0 PARK MIRAGE 5.0 (2011) > Mower Deck Frame
Back to

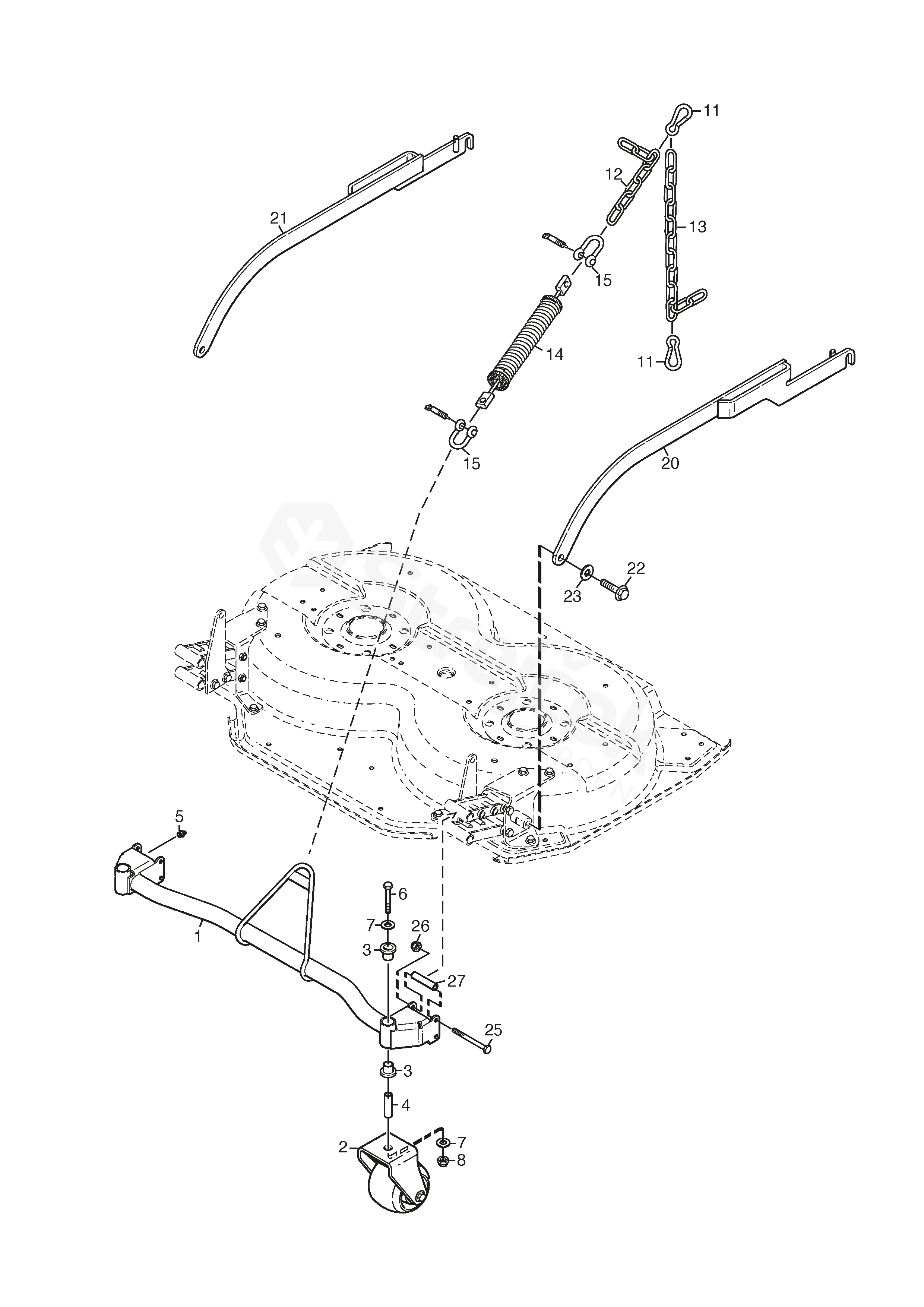

Mower Deck Frame
PARK MIRAGE 5.0 PARK MIRAGE 5.0 (2011)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK MIRAGE 5.0 (2011)
1 Front Tube 1137-0343-01
2 Pivot Wheel Assy 1134-5884-01
3 Bushing 137038009/0
4 Spacer 1134-5677-01
5 Grease Dispenser 9501-0500-00
6 Screw 9997-1090-12
7 Washer 9699-0030-02
8 Lock Nut 9747-1031-02
11 Snap Hook 1134-5528-01
12 Chain 1134-6368-02
13 Chain 1134-6368-03
14 Spring 1134-6365-04
15 Lift link 1134-2629-01
20 Mower Deck Arm Assy-Lh, Grey 1137-0347-01
21 Mower Deck Arm Assy-Rh, Grey 1137-0347-02
22 Screw 9959-0816-16
23 Washer 9699-0056-02
25 Screw 9997-0880-16
26 Nut 9747-0831-02
27 Shaft 1137-0151-01
