Spare parts > STIGA > Front Mowers > PRIMO PRIMO (2009) [13-2411-12] > Chassis
Back to

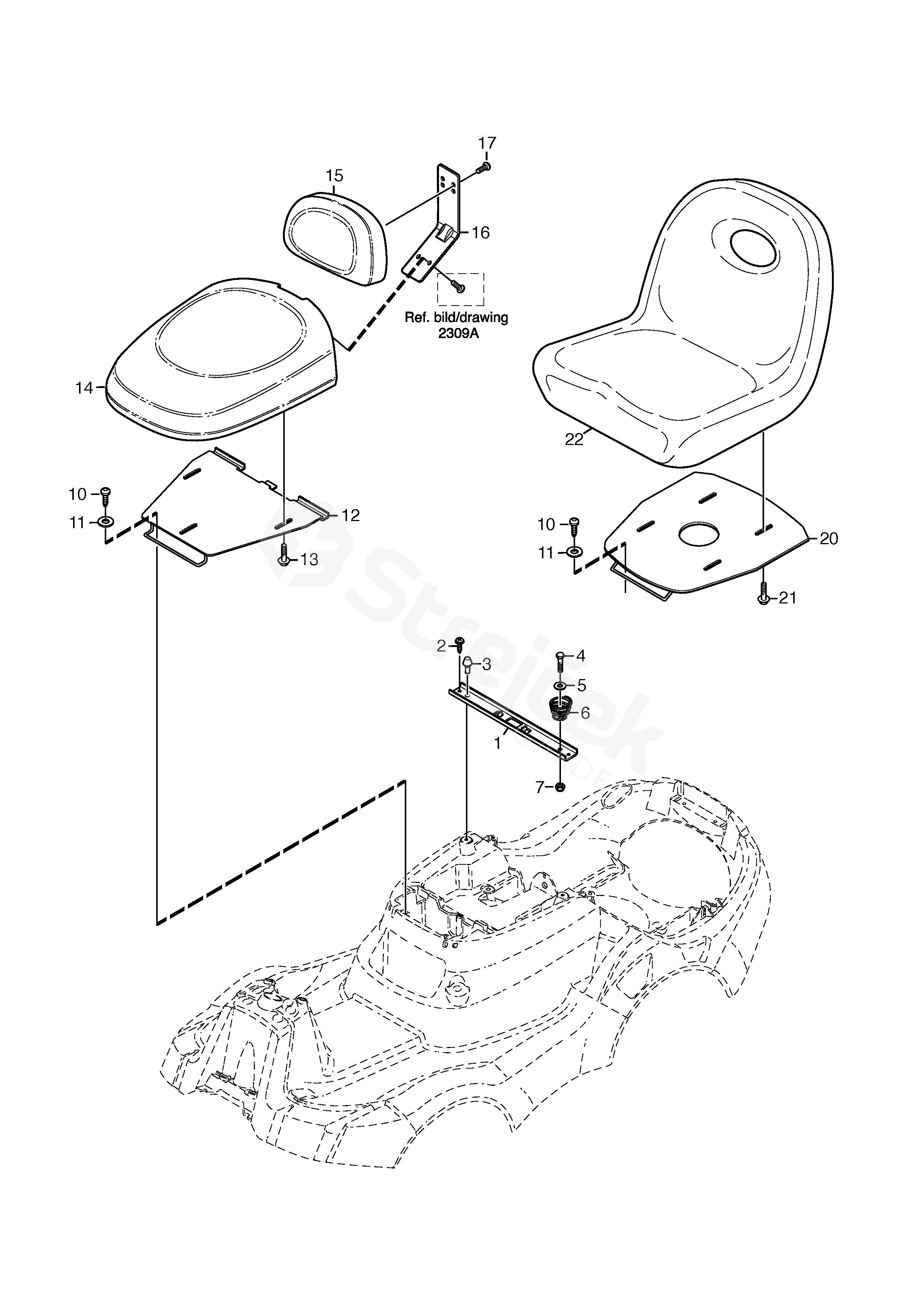

Chassis
PRIMO PRIMO (2009) [13-2411-12]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PRIMO (2009) [13-2411-12]
1 Switch Bracket
090316 - 		1134-7837-01
2 Screw 9838-8822-19
3 Spring 1134-3134-01
4 Screw 9959-0820-16
5 Washer 9699-0056-02
6 Spring 1134-5302-01
7 Nut 9747-0831-02
10 Screw 9838-8822-19
11 Washer 9699-0056-02
12 Seat Plate 1134-7735-01
13 Screw 9959-0820-16
14 Seat Cushion Assy 1134-7741-01
15 Backrest Cushion 1134-7022-01
16 Back Rest Bracket Assy 1134-7739-01
17 Screw 9959-0820-16
20 Seat Plate
090415 - 		1134-7834-01
21 Screw
090415 - 		9959-0820-16
22 Seat
090415 - 		1134-7873-01
