Spare parts > STIGA > Front Mowers > PRIMO PRIMO (2009) [13-2411-12] > Wheels
Back to

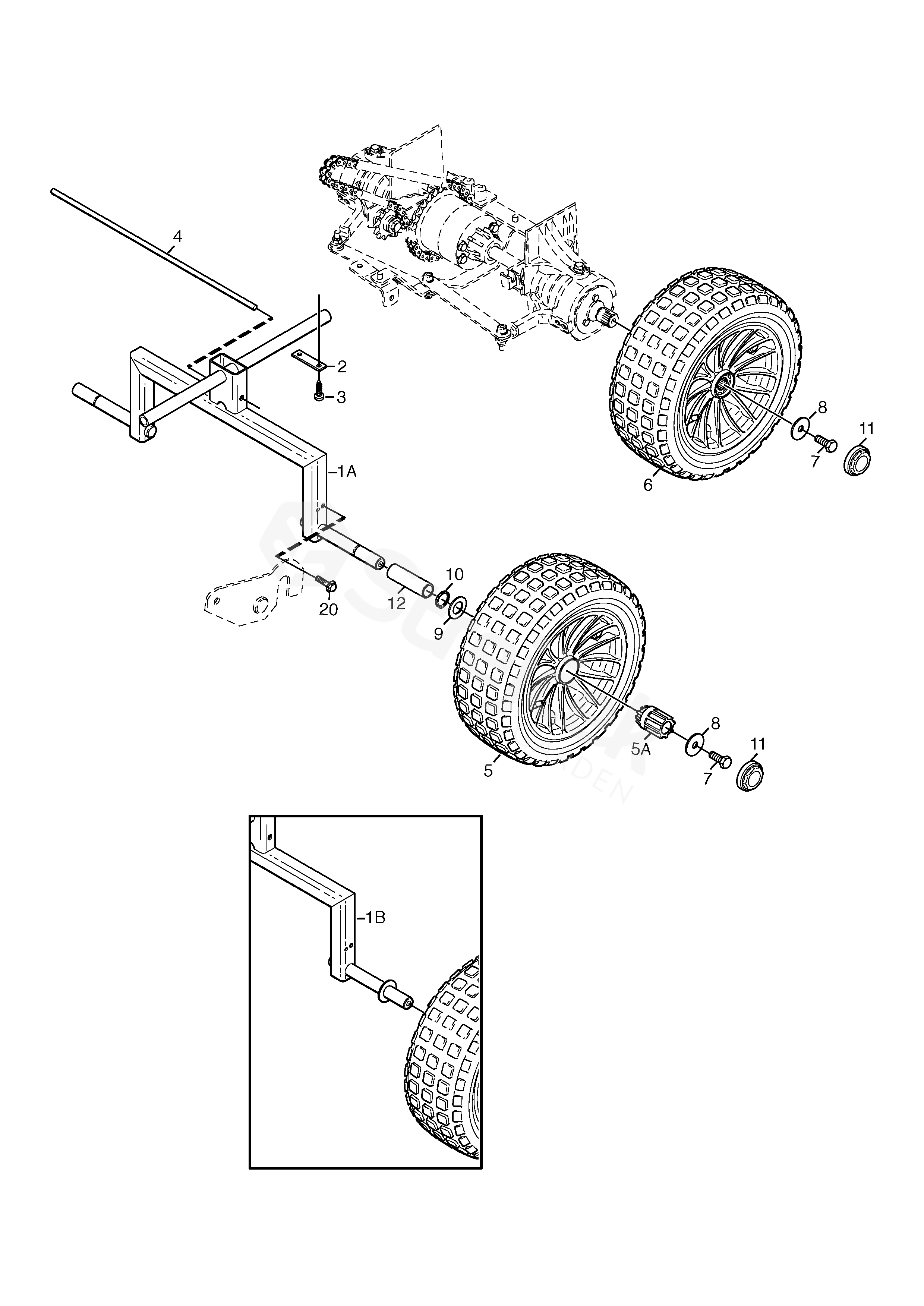

Wheels
PRIMO PRIMO (2009) [13-2411-12]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PRIMO (2009) [13-2411-12]
2 Clamp 1134-6527-01
3 Screw 9838-8822-19
4 Spring 1134-6569-01
5 Front Wheel 1134-7244-01
6 Rear Wheel Assy 1134-7243-01
7 Screw 9997-1020-16
8 Washer 1134-5406-01
9 Washer 1134-0341-01
10 Circlip 9650-0020-04
11 Hub Cap 1134-6510-01
12 Service Kit
Inkl. pos 9 - 10 		1134-7791-01
20 Screw 9945-0816-16
1A Front Wheel Axle 1134-6540-01
1B Front Wheel Axle 1134-7787-01
5A Bushing 1134-9140-01
