Spare parts - Partlist - PRIMO PRIMO (2009) [13-2411-62] - Transmission

Everything for your machines

PRIMO PRIMO (2009) [13-2411-62]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

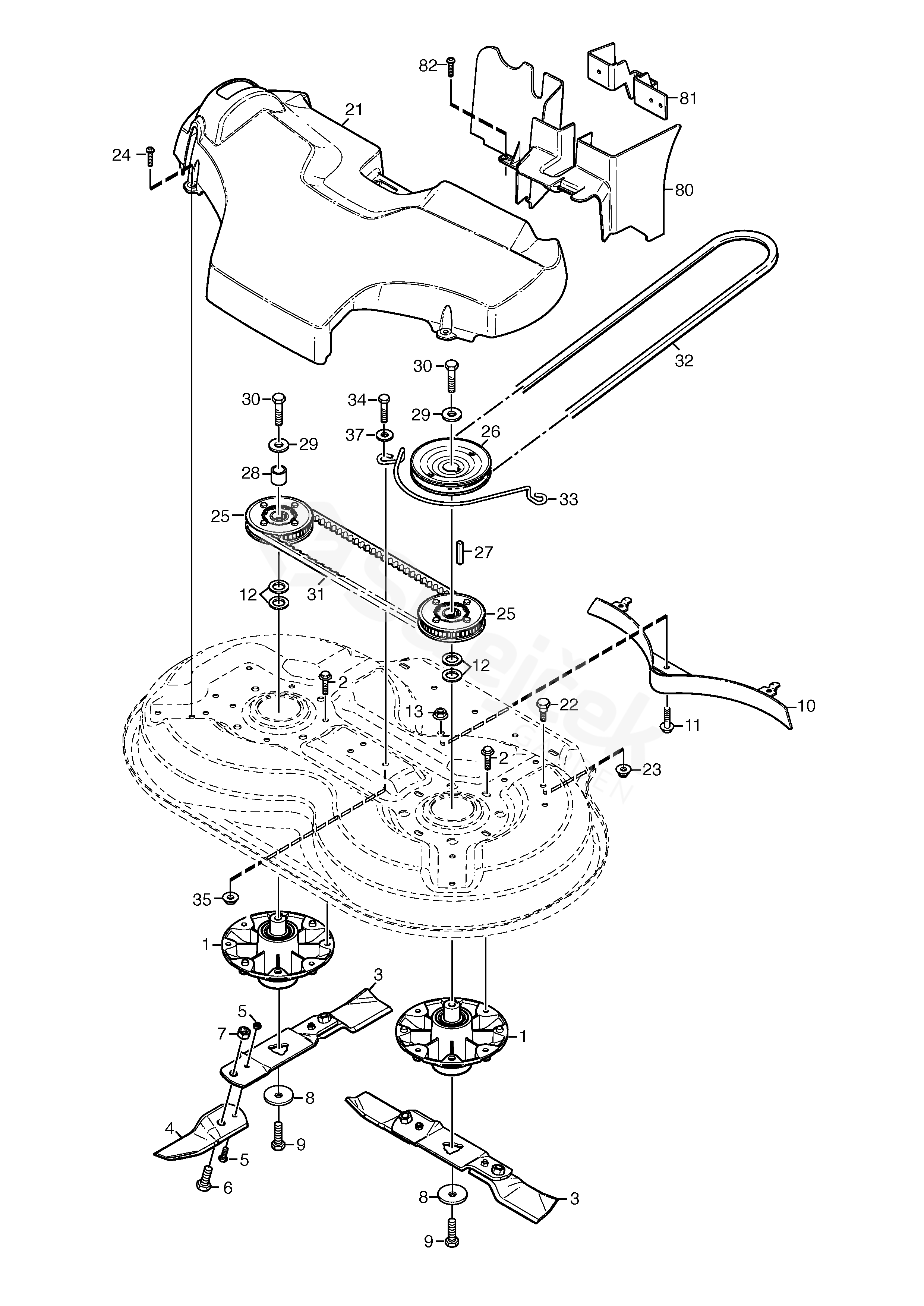

Other parts For PRIMO (2009) [13-2411-62]

1	Bearing Box Assy	1134-6613-01
2	Screw	9945-0825-16
3	Blade Bar Ass.Y Sats 2 st/kit of 2	1134-9129-01
4	Blade kit	1134-9130-01
5	Shear Bolt Kit	1134-9054-01
6	Bolt	1134-6311-01
7	Nut	1134-6312-01
8	Washer	1134-6211-01
9	Screw	9997-1050-12
10	Mulch Plug	1134-6590-01
11	Screw	9959-0820-16
12	Washer	1134-0341-01
13	Nut	9739-0831-22
21	Transm.Cover-Yellow	1134-6713-01
22	Screw	1134-0240-00
24	Screw	9893-0616-16
25	Toothed Belt Pulley Sats 2 st/kit of 2	1134-9137-01
26	Belt Pulley	1134-6607-01
27	Key	9600-0168-01
28	Spacer	1134-5124-02
29	Washer	1134-5406-01
30	Screw	9997-0850-16
31	Toothed Belt Replaced by Service Code: 1134-9133-01	9585-0173-01
32	V-Belt 9408	1134-9136-01
33	Belt Guide	1134-7017-01
37	Washer	9699-0056-02
80	Front Cover FR	1134-7764-01
81	Guard Plate FR	1137-0001-01
85	Lock Nut FR	9747-0631-02
