Spare parts > STIGA > Front Mowers > STIGA 75 YEARS LIMITED EDITION STIGA 75 YEARS LIMITED EDITION (2009) > Frame
Back to

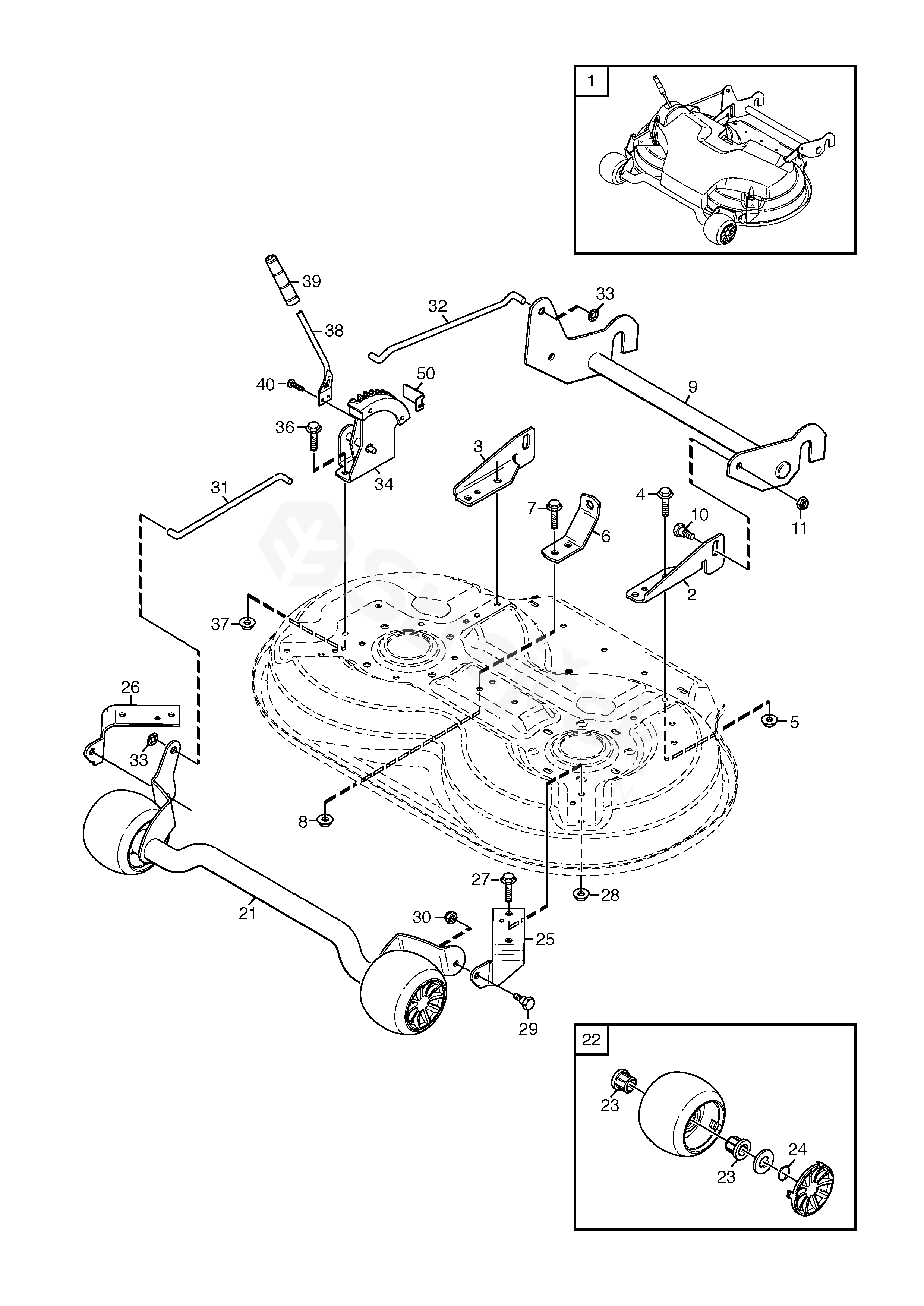

Frame
STIGA 75 YEARS LIMITED EDITION STIGA 75 YEARS LIMITED EDITION (2009)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For STIGA 75 YEARS LIMITED EDITION (2009)
1 Yellow Mower Deck Arm, Right
Gul/yellow 		1134-7383-01
2 Holder-Lh 1134-6587-01
3 Holder-Rh 1134-6587-02
4 Screw 9959-0820-16
5 Nut 9739-0831-22
6 Lift Loop 1134-6591-01
7 Screw 9959-0820-16
8 Nut 9739-0831-22
9 Mounting Frame 1134-6598-01
10 Screw 1134-0240-00
11 Nut 9747-0831-02
21 Fuel Tube
Inkl. pos 22 		1134-6735-01
22 Support Wheel Kit
Inkl. pos 23, 24 		1134-9139-01
23 Bearing
Sats 4 st/kit of 4 		1134-9024-01
24 Circlip 9650-0020-04
25 Bracket-Lh 1134-6594-01
26 Bracket-Rh 1134-6594-02
27 Screw 9959-0820-16
28 Nut 9739-0831-22
29 Screw 1134-0240-00
30 Nut 9747-0831-02
31 Strut 1134-6599-01
32 Strut 1134-6600-01
33 Starlock 9675-0015-02
34 Level Bracket Assy 1134-6755-01
36 Screw 9959-0820-16
37 Nut 9739-0831-22
38 Lever, Height Adjustment 1111-2816-01
39 Lever Knob 1111-2817-01
40 Screw 9893-0616-16
