Spare parts > STIGA > Front Mowers > Villa 13 Villa 13 (2019) > Electrical Parts
Back to
Electrical Parts
Villa 13 Villa 13 (2019)

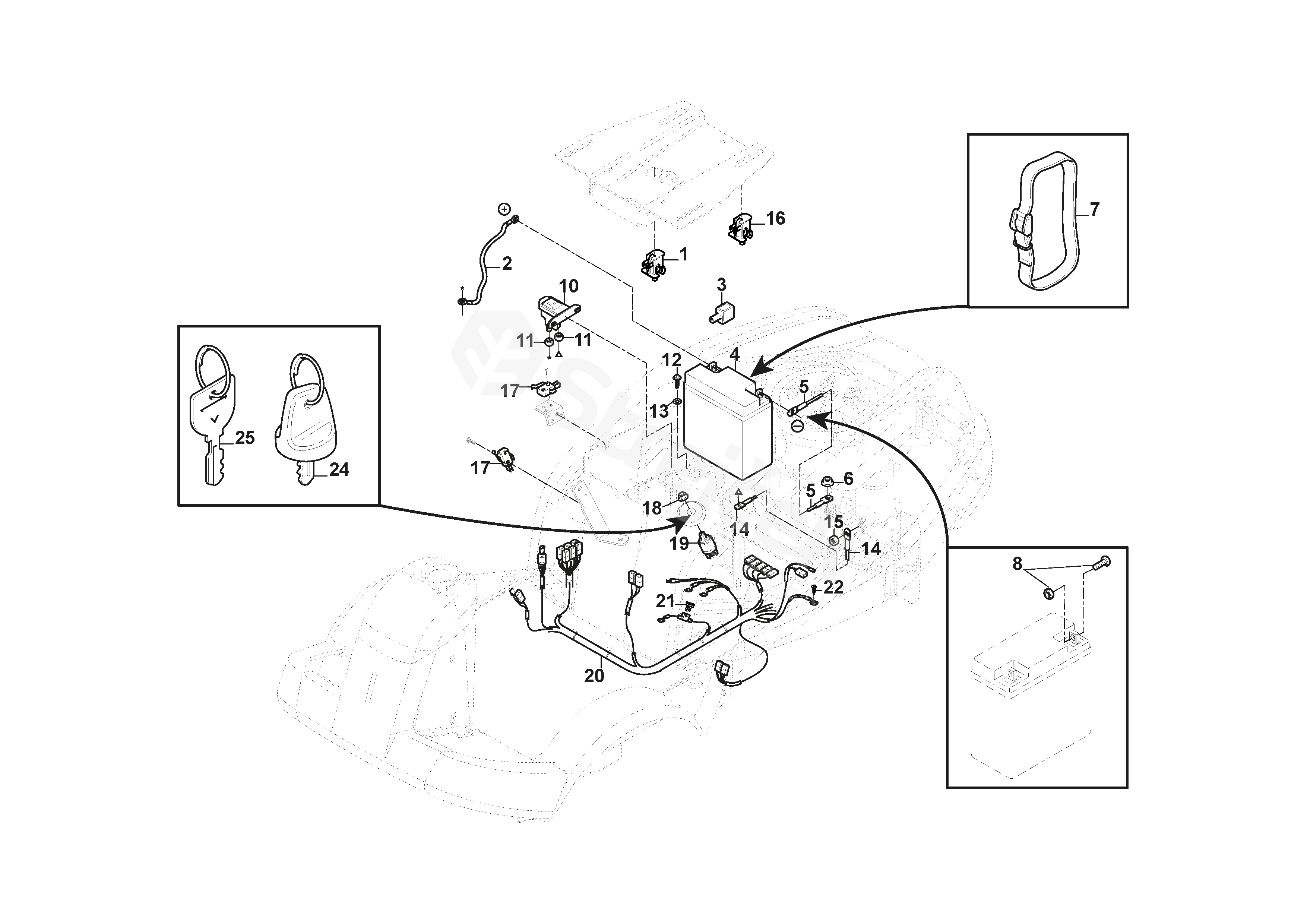

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Villa 13 (2019)
1 Switch
Microswitch N.C. 		1134-3156-02
2 Battery Cable
L = 395 mm 		1134-0234-02
3 Guard Cap 1134-2310-01
4 Battery 118120007/0
5 Cable- black
L = 350 mm 		1134-2042-02
6 Nut 112155000/0
7 Battery Strap 1134-5245-01
8 Screw 1134-6113-01
10 Solenoid
incl. 11 		118736112/0
11 Nut 9743-5121-32
12 Screw 112728697/0
13 Washer 112523040/0
14 Cable
L = 480 mm 		1134-4702-02
15 Nut
1/4 UNC 		112361005/0
16 Switch
Microswitch N.O. 		1134-3156-01
17 Microswitch 9400-0360-01
19 Ignition Switch 1134-4093-01
20 Wiring harness
incl. 21 		187040303/0
21 Fuse
20A 		1134-3496-06
22 Screw 9943-0516-16
24 Ignition Key 1134-4734-01
25 Ignition Key 1134-6125-01
