Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Front Mowers
>
VILLA 12 Villa 12 (2016)
>
Hand controls
Back to
VILLA 12
Villa 12 (2016)
Hand controls
VILLA 12
Villa 12 (2016)

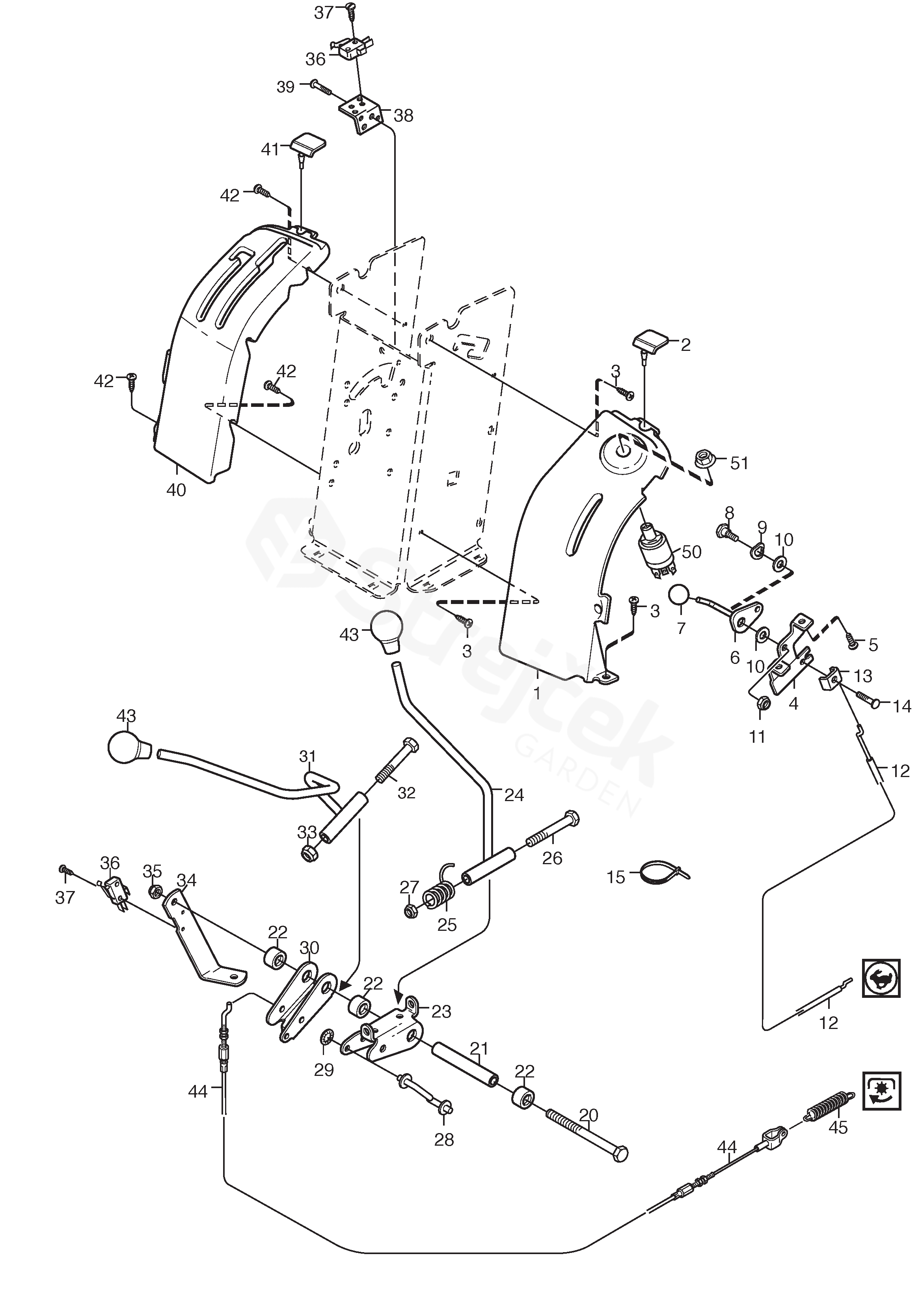

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Villa 12 (2016)
1
Dashboard-Lh (Grey)
337120154/0
2
Grommet
125260000/0
3
Screw
9893-0616-16
4
Bracket
1134-5357-01
5
Screw
112728697/0
6
Lever
1134-4077-02
7
Knob
1134-4078-01
8
Screw
1134-0240-00
9
Washer
9694-0001-00
10
Washer
1134-4242-01
11
Nut
112155000/0
12
Throttle Cable
1134-1597-13
13
Wire Clamp
9500-9991-00
14
Screw
9943-0516-16
15
Cable
133320027/0
20
Screw
9997-0812-02
21
Spacer
1134-5274-02
22
Spacer
1134-3047-01
23
Control Bracket
1134-5271-01
24
Gearshift Lever
1134-5275-01
25
Spring
1134-5535-01
26
Screw
112692080/0
27
Nut
112155000/0
28
Shifter Rod
1134-5268-01
29
Crown Fastener
112604896/0
30
Control Bracket
1134-5271-01
31
Control Lever
1134-5276-01
32
Screw
112692080/0
33
Nut
112155000/0
34
Strut
1134-5356-01
35
Nut
112155000/0
36
Microswitch
9400-0312-01
37
Screw
9840-7716-16
38
Switch Bracket
1134-5358-01
39
Screw
9943-0516-16
40
Dashboard Man-Rh (Grey)
337120153/0
41
Grommet
125260000/0
42
Screw
9893-0616-16
43
Knob
1134-2551-01
44
Pto Cable
1134-3573-06
45
Spring
1134-1242-02
50
Ignition Switch
1134-4093-01
51
Nut
1134-4749-01
