STIGA
>
Front Mowers
>

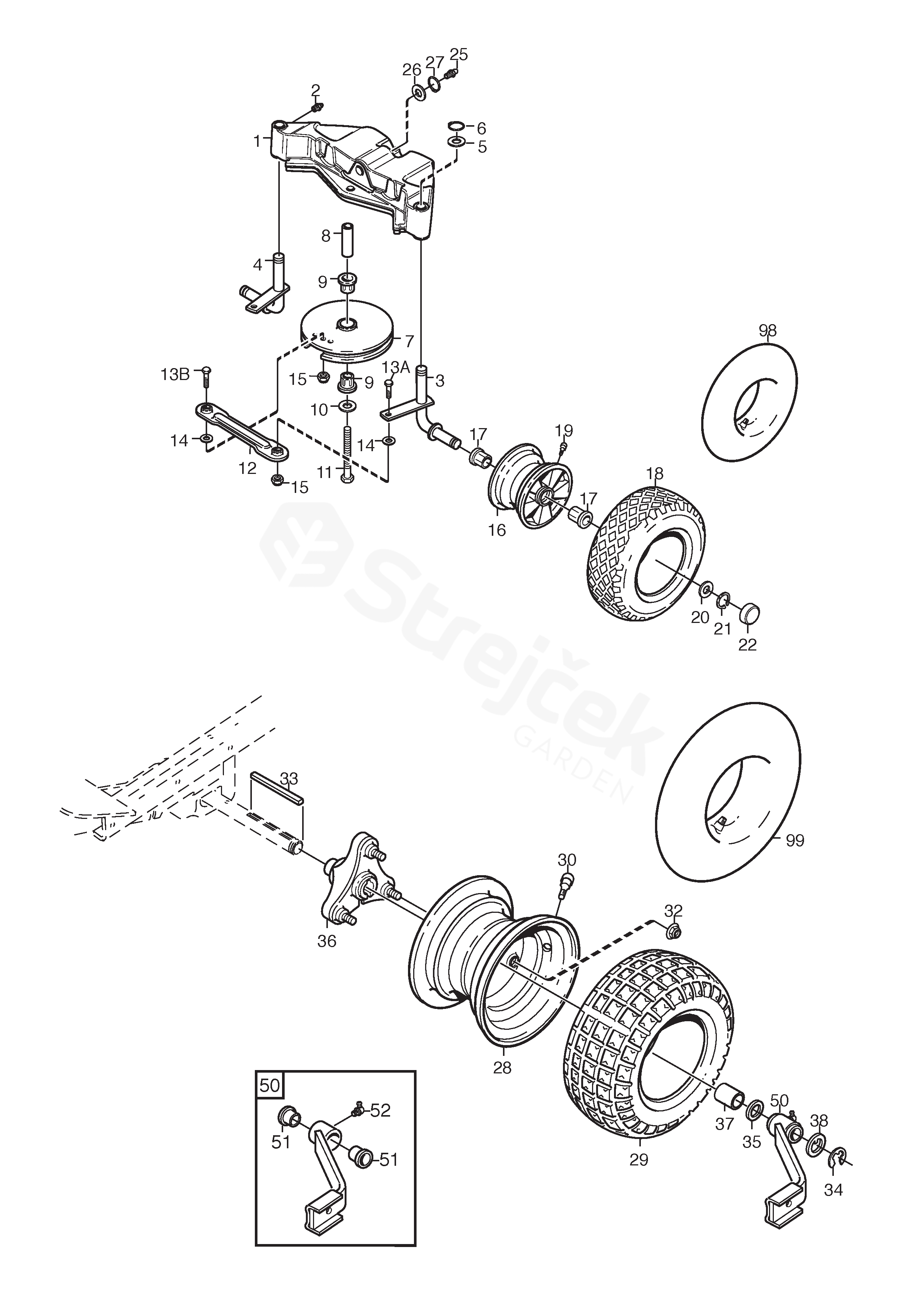

VILLA 12 HST VILLA 12 HST (2010) [13-2727-14]
>
Wheels
Back to
VILLA 12 HST
VILLA 12 HST (2010) [13-2727-14]
Wheels
VILLA 12 HST
VILLA 12 HST (2010) [13-2727-14]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
VILLA 12 HST (2010) [13-2727-14]
1
Rear axle
1134-6703-01
2
Grease Dispenser
9501-0500-00
3
Stub Axle
1134-5009-02
4
Right Stub Axle
1134-5009-01
5
Washer
9699-0088-02
6
Circlip
9650-0020-04
7
Steering Pulley
1134-5316-01
8
Spacer
1134-5575-01
9
Bearing
Sats 4 st/kit of 4
1134-9024-01
10
Washer
9699-0104-02
11
Screw
9997-1680-12
12
Tie Rod
1134-3247-05
14
Washer
9699-0090-02
15
Nut
9747-0831-02
16
Rim
1134-4706-01
17
Bushing
137038009/0
18
Tyre
13x5.00-6
9545-0117-00
19
Valve Assy.
9545-0500-00
20
Washer
1134-0341-01
21
Circlip
9650-0020-04
22
Hub Cap Black
1134-4344-01
25
Grease Dispenser
9501-0500-00
26
Washer
9699-0088-02
27
Circlip
9650-0020-04
28
Rim
1134-5255-01
29
Tyre
16x6.00-8
9545-0126-01
30
Valve Assy.
9545-0500-00
32
Nut
9731-1031-22
33
Key
1134-2471-03
34
Lock Ring
9653-0001-04
35
Washer
1134-0341-01
36
Wheel Hub Assy
1134-4844-02
37
Hub Sleeve
1134-4845-02
38
Washer
1134-4981-01
50
Attachment
Pos 51-52 incl.
1134-6274-01
51
Bushing
137038009/0
52
Grease Joint
9501-0502-00
98
Inner Tube
Reservdel/spare part
9545-0204-00
99
Inner Tube
Reservdel/spare part
9545-0203-00
