Spare parts > STIGA > Front Mowers > VILLA 14 HST VILLA 14 HST (2020) > Electrical Parts
Back to

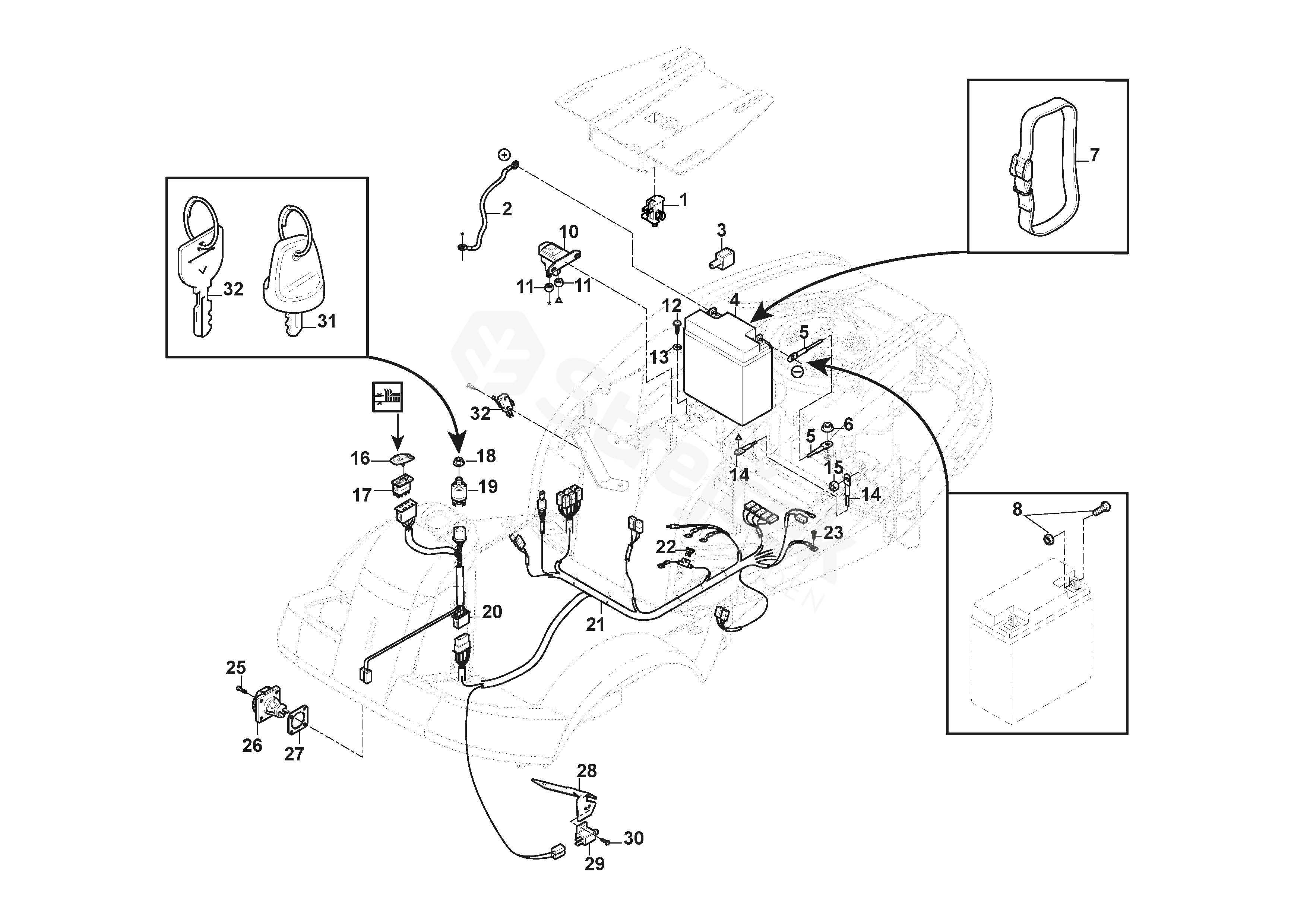

Electrical Parts
VILLA 14 HST VILLA 14 HST (2020)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For VILLA 14 HST (2020)
1 Switch 1134-3156-02
2 Battery Cable
L = 395 mm 		1134-0234-02
3 Guard Cap 1134-2310-01
4 Battery
18 Ah 		118120007/0
5 Cable- black
L = 350 mm 		1134-2042-02
6 Nut 112155000/0
7 Battery Strap 1134-5245-01
8 Screw 1134-6113-01
10 Solenoid
incl. 11 		118736112/0
11 Nut 9743-5121-32
12 Screw 112728697/0
13 Washer 112523040/0
14 Cable
L = 480 mm 		1134-4702-02
15 Nut
1/4 UNC 		112361005/0
18 Nut 1134-4749-01
19 Ignition Switch 1134-4093-01
20 Cable Harness 1134-6348-01
21 Cable Harness
incl. pos. 22 		187040304/0
22 Fuse
20A 		1134-3496-06
23 Screw 9943-0516-16
28 Switch Bracket 1134-4610-01
29 Switch 1134-3399-02
30 Screw 9852-8013-16
31 Ignition Key 1134-4734-01
32 Ignition Key 1134-6125-01
