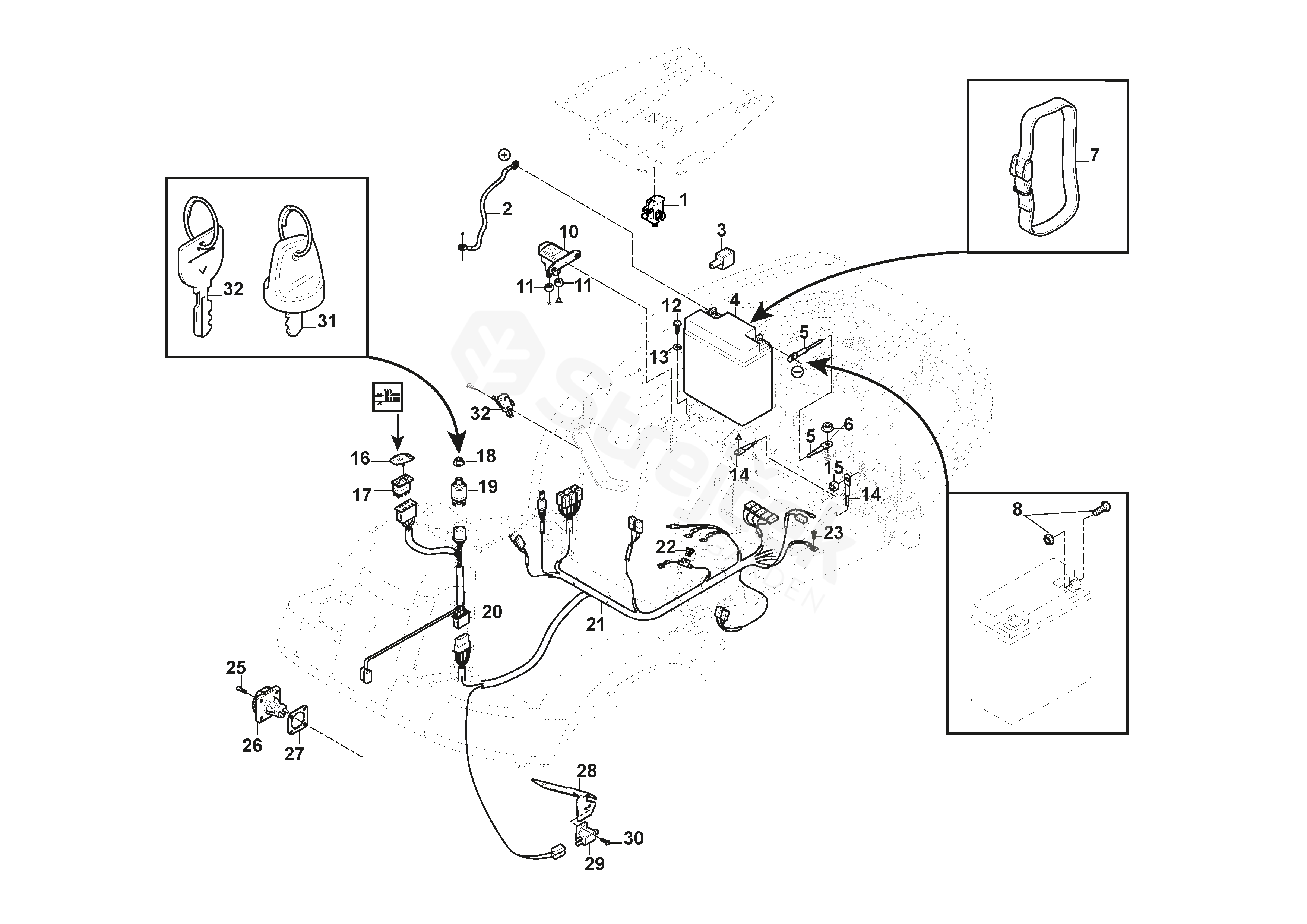

Spare parts - Partlist - VILLA 16 HST VILLA 16 HST (2019) - Electrical Parts

Everything for your machines

VILLA 16 HST VILLA 16 HST (2019)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For VILLA 16 HST (2019)

1	Switch	1134-3156-02
2	Battery Cable L = 395 mm	1134-0234-02
3	Guard Cap	1134-2310-01
4	Battery 18 Ah	118120007/0
5	Cable- black L = 350 mm	1134-2042-02
6	Nut	112155000/0
7	Battery Strap	1134-5245-01
8	Screw	1134-6113-01
10	Solenoid incl. 11	118736112/0
11	Nut	9743-5121-32
12	Screw	112728697/0
13	Washer	112523040/0
14	Cable L = 480 mm	1134-4702-02
15	Nut 1/4 UNC	112361005/0
16	Switch Cover-Height Adjust Optional, not present for all machine	9400-0280-03
17	Switch Optional, not present for all machine	9400-0282-01
18	Nut	1134-4749-01
19	Ignition Switch	1134-4093-01
20	Wiring harness	1134-6442-01
21	Cable Harness incl. pos. 22	187040304/0
22	Fuse 20A	1134-3496-06
23	Screw	9943-0516-16
25	Screw Optional, not present for all machine	9840-7716-16
26	Female Connector Optional, not present for all machine	387149302/0
27	Washer Optional, not present for all machine	1134-4052-01
28	Switch Bracket	1134-4610-01
29	Switch	1134-3399-02
30	Screw	9852-8013-16
31	Ignition Key	1134-4734-01
32	Ignition Key	1134-6125-01
