Spare parts > STIGA > Front Mowers > VILLA I CLASSIC VILLA I CLASSIC (2002) > Seat
Back to

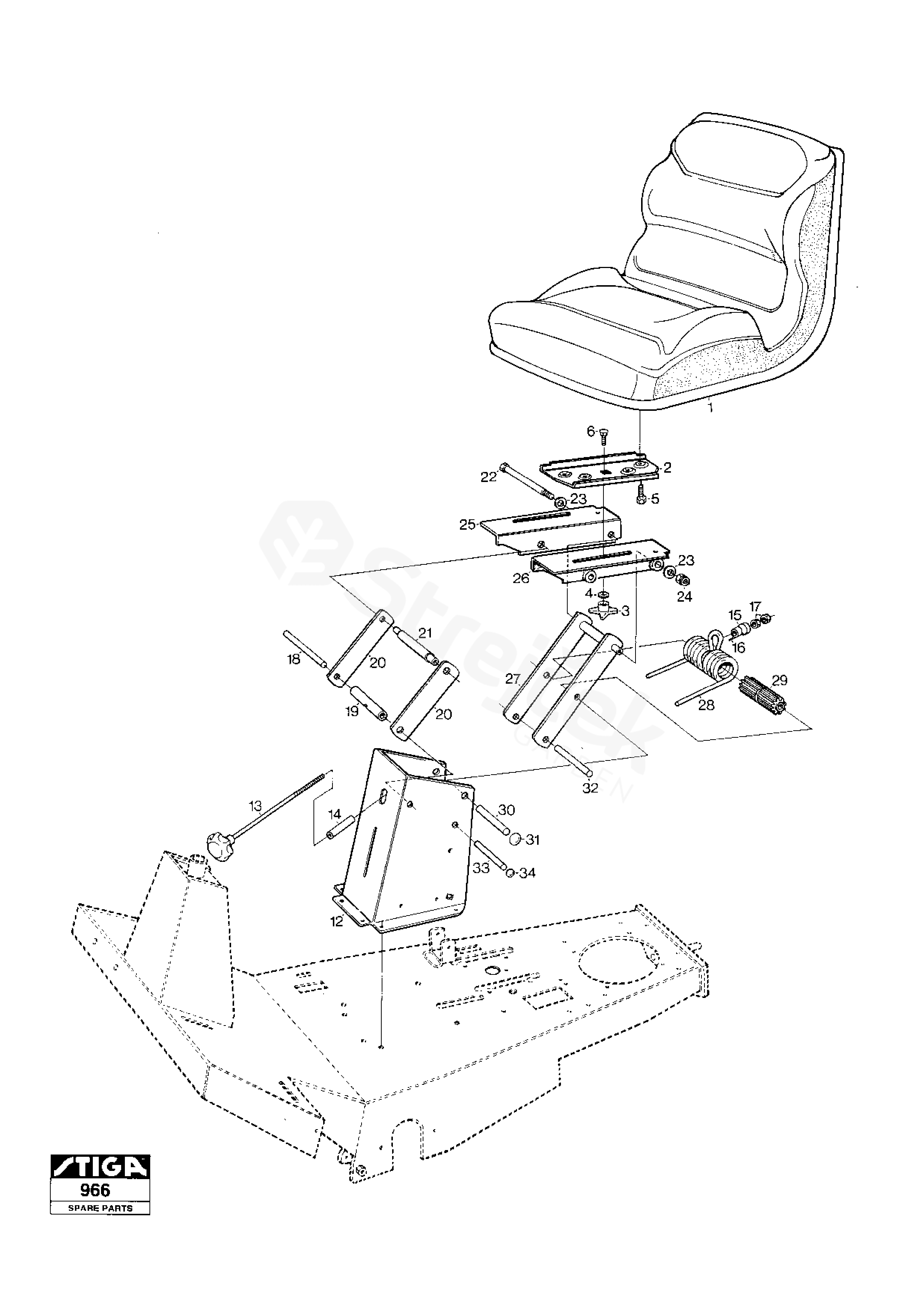

Seat
VILLA I CLASSIC VILLA I CLASSIC (2002)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For VILLA I CLASSIC (2002)
1 Seat Sears Sa 1216 (9407-0003-01) 20 1134-0800-06
2 Seat Adapter 1134-2961-01
3 Knob 1134-1711-01
5 Screw 9988-3616-16
6 Screw 9898-0820-16
12 Seat Bracket-Yellow 1134-3800-01
13 Rod 1134-2163-01
14 Spacer 1134-2166-01
15 Nut 1134-0019-00
16 Locating Pin 9595-0160-00
17 Nut 9799-0831-02
18 Shaft 1134-2847-01
19 Tube 1134-2846-01
20 Tie Bar 1134-1650-01
21 Pivoting Tube 1134-3871-02
22 Screw 9997-0816-02
23 Washer 9699-0062-02
24 Nut 9747-0831-02
25 Seat Attachment-R.H.
2841, 2842, 2843 		1134-3877-01
26 Seat attachment-L.H. 1134-3878-02
27 Spring 1134-3876-01
28 Spring 1134-3879-01
29 Axle 1134-1883-01
30 Control Rod 1134-0022-00
31 Starlock 9672-0004-02
32 Seat Rod 1134-0050-00
33 Shaft 1134-2454-01
34 Lock washer 9672-0006-02
