Spare parts > STIGA > Front Mowers > VILLA COMFORT VILLA COMFORT (2001) > Wheels
Back to

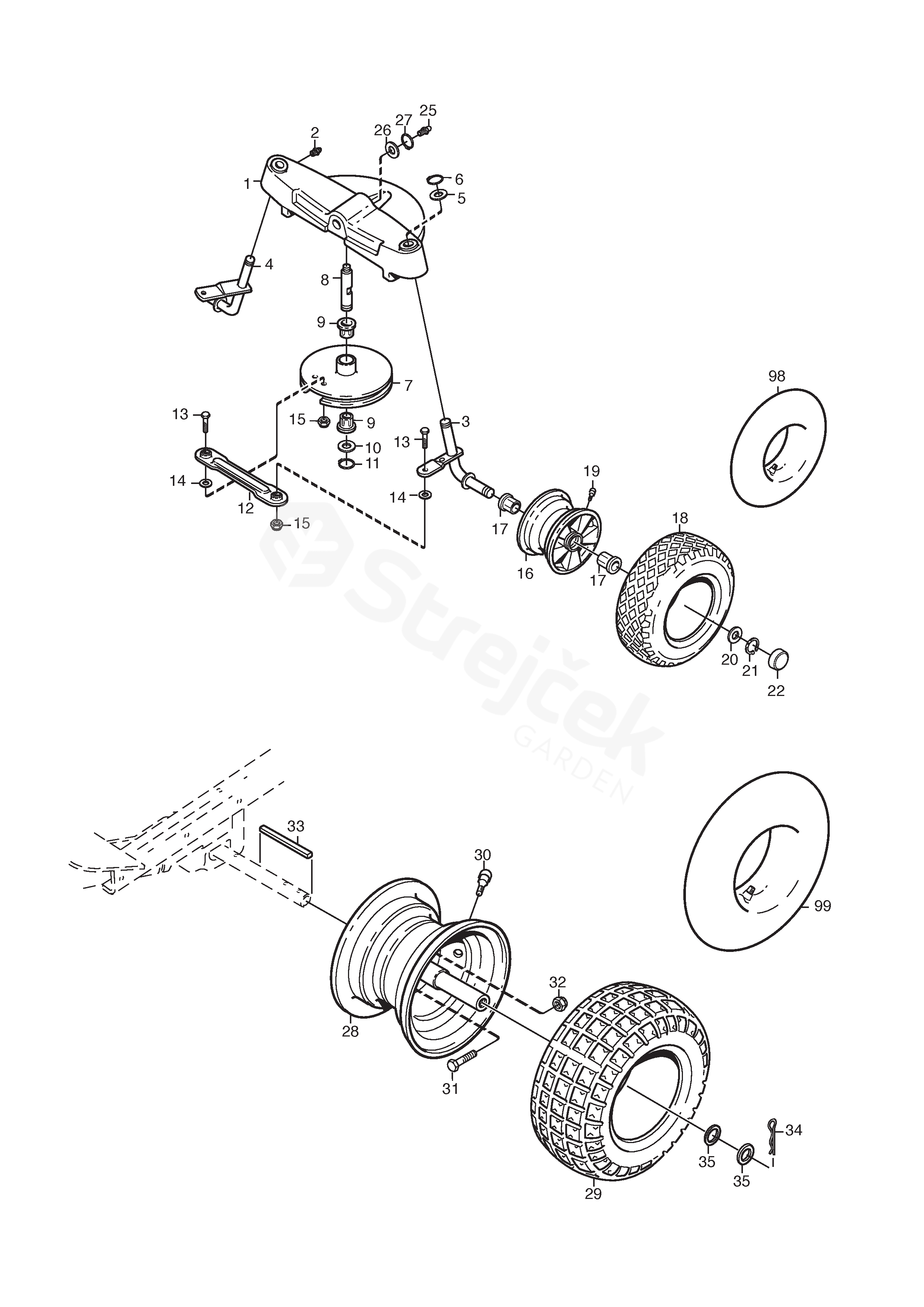

Wheels
VILLA COMFORT VILLA COMFORT (2001)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For VILLA COMFORT (2001)
1 Rear axle 1134-4604-01
2 Grease Dispenser 9501-0500-00
3 Left Stub Axle 1134-4528-01
4 Right Stub Axle 1134-4528-02
5 Washer 9699-0088-02
6 Circlip 9650-0020-04
7 Steering Pulley 1134-1500-02
8 Shaft For Steering Pulley 1134-1583-01
9 Bearing
Sats 4 st/kit of 4 		1134-9024-01
10 Washer 1134-0341-01
11 Circlip 9650-0020-04
12 Tie Rod 1134-3247-04
13 Screw 9997-0825-16
14 Washer 9699-0028-02
15 Nut 9747-0831-02
16 Rim 1134-4706-01
17 Bushing 137038009/0
18 Tyre
14 x 5.50 - 6 		9545-0125-01
19 Valve Assy. 9545-0500-00
20 Washer 1134-0341-01
21 Circlip 9650-0020-04
22 Hub Cap Black 1134-4344-01
25 Grease Dispenser 9501-0500-00
26 Washer 9699-0088-02
27 Circlip 9650-0020-04
28 Rim 1134-4670-01
29 Tyre
16 x 7.50 - 8 		9545-0116-00
30 Valve Assy. 9545-0500-00
31 Screw 9997-0840-16
32 Nut 9747-0831-02
33 Key 1134-2471-01
34 Spring Pin 9598-0003-02
35 Washer 1134-0341-02
