Spare parts > STIGA > Front Mowers > VILLA COMFORT VILLA COMFORT (2005) > Wheels
Back to

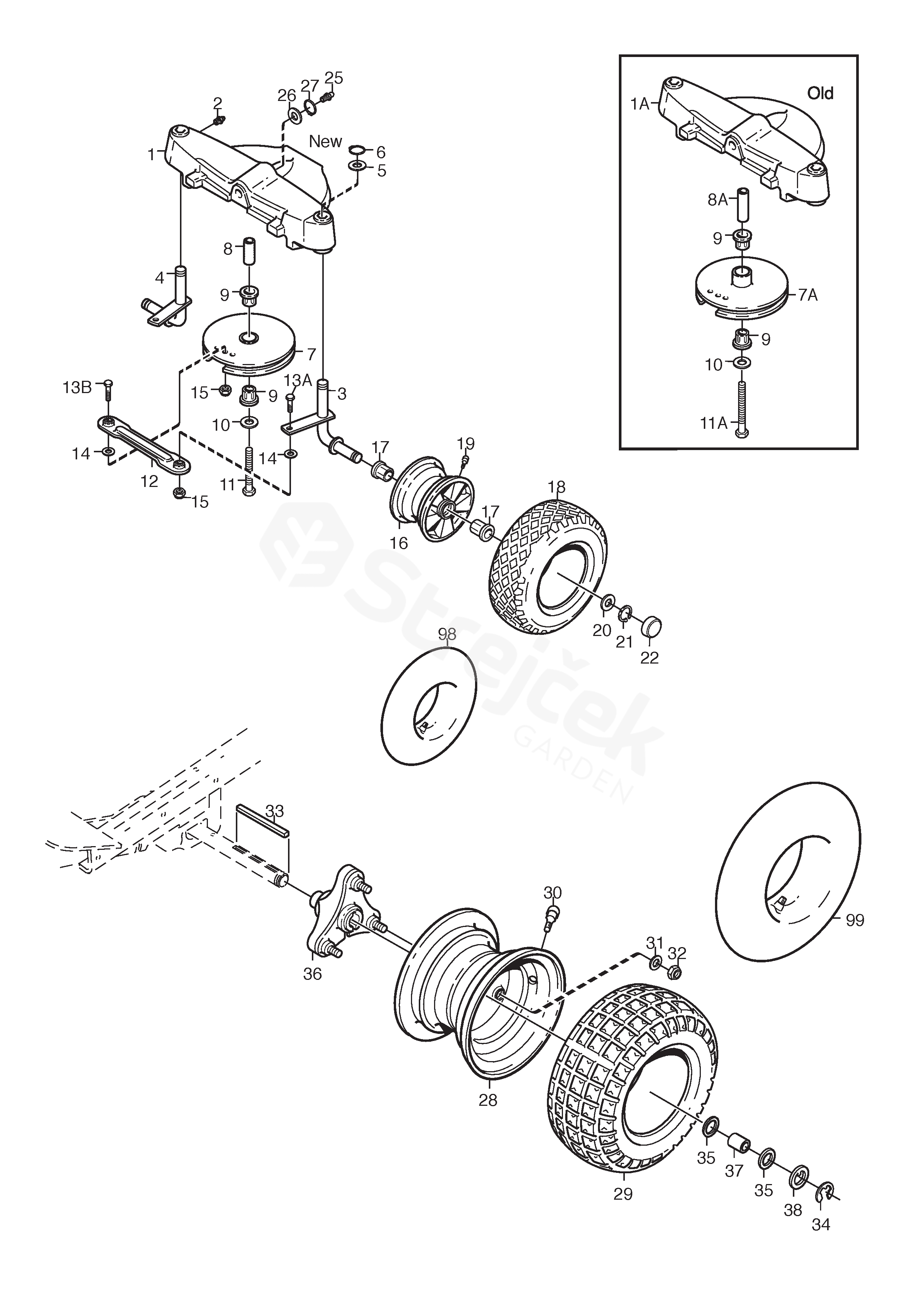

Wheels
VILLA COMFORT VILLA COMFORT (2005)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For VILLA COMFORT (2005)
1 Rear axle 1134-5893-01
2 Grease Dispenser 9501-0500-00
3 Stub Axle 1134-5009-02
4 Right Stub Axle 1134-5009-01
5 Washer 9699-0088-02
6 Circlip 9650-0020-04
7 Steering Pulley 1134-5316-01
8 Spacer
L = 52,8 mm 		1134-5575-01
9 Bearing
Sats 4 st/kit of 4 		1134-9024-01
10 Washer 9699-0104-02
11 Screw
L = 80 mm 		9997-1680-12
12 Tie Rod 1134-3247-05
14 Washer 9699-0028-02
15 Nut 9747-0831-02
16 Rim 1134-4706-01
17 Bushing 137038009/0
18 Tyre
14 x 5.50 - 6 		9545-0125-01
19 Valve Assy. 9545-0500-00
20 Washer 1134-0341-01
21 Circlip 9650-0020-04
22 Hub Cap Black 1134-4344-01
25 Grease Dispenser 9501-0500-00
26 Washer 9699-0088-02
27 Circlip 9650-0020-04
28 Rim 1134-4558-01
29 Tyre
16 x 7.50 - 8 		9545-0116-00
30 Valve Assy. 9545-0500-00
31 Washer 9699-0035-02
32 Lock Nut 9747-1031-02
33 Key 1134-2471-03
34 Lock Ring 9653-0001-04
35 Washer 1134-0341-01
36 Wheel Hub Assy 1134-4844-02
37 Hub Sleeve 1134-4845-01
38 Washer 1134-4981-01
13A Screw 9997-0825-16
13B Screw 9997-0835-12
1A Rear axle 1134-5012-01
7A Steering Pulley 1134-1500-03
8A Spacer 1134-5575-02
