Spare parts > STIGA > Front Mowers > VILLA II ELEGANCE VILLA II ELEGANCE (2002) > Hand controls
Back to

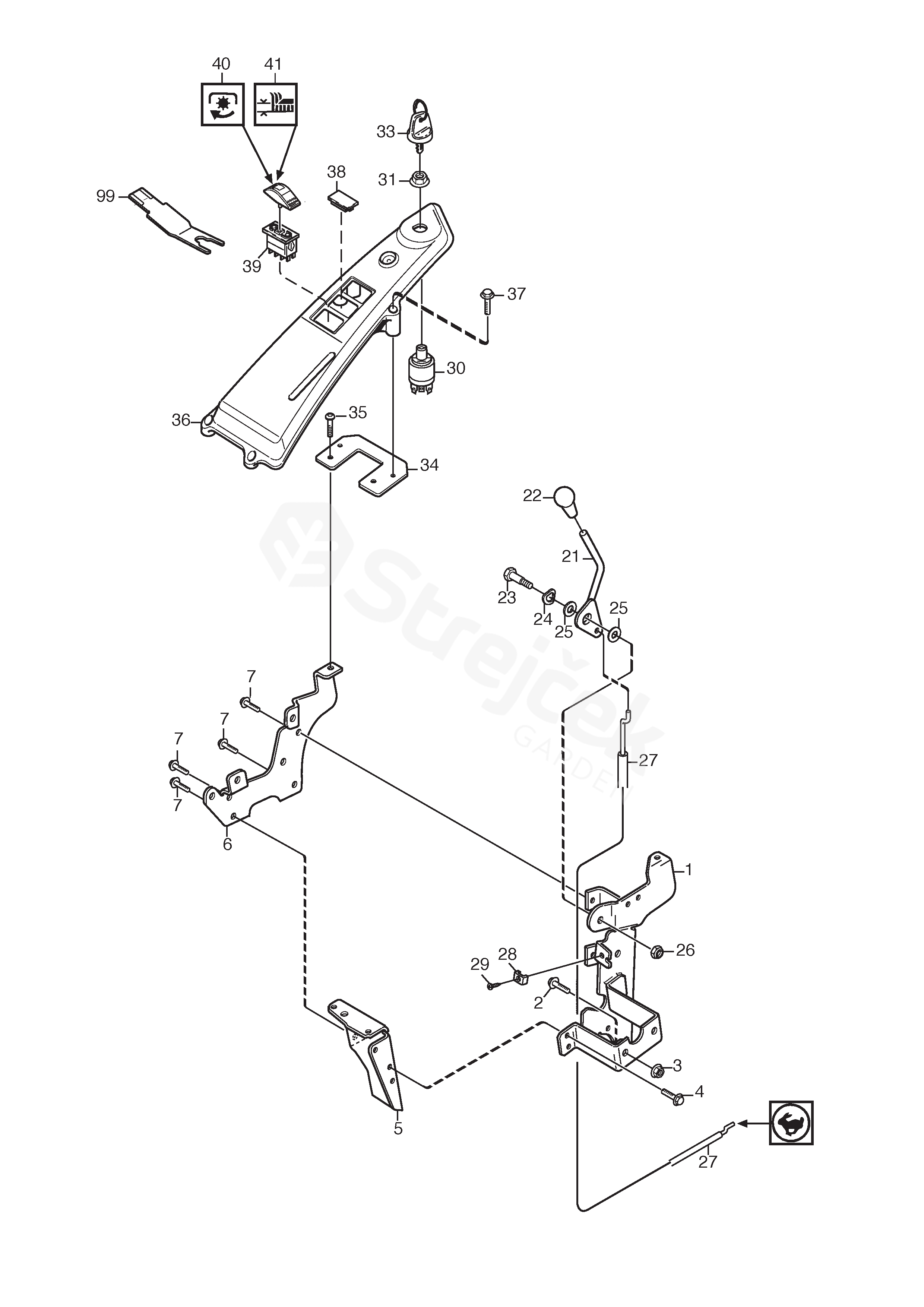

Hand controls
VILLA II ELEGANCE VILLA II ELEGANCE (2002)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For VILLA II ELEGANCE (2002)
1 Panel Bracket-Inner 1134-4683-01
2 Screw 9959-0820-16
3 Nut 9739-0831-22
4 Screw 9893-0616-16
5 Panel bracket-front 1134-4487-01
6 Frontplate 1134-3986-01
7 Screw 9893-0616-16
21 Throttle Cable 1134-4590-01
22 Knob 1134-4078-01
23 Screw 1134-0240-00
24 Washer 9694-0001-00
25 Washer 1134-4242-01
26 Nut 9747-0831-02
27 Throttle Cable 1134-1597-11
28 Wire Clamp 9500-9991-00
29 Screw 9943-0516-16
30 Ignition Switch 1134-4093-01
31 Nut 1134-4749-01
33 Ignition Key 1134-4734-01
34 Attachment plate 1134-4472-01
35 Screw 9943-0516-16
36 Dashboard 1134-4470-03
37 Screw 9943-0516-16
38 Cover 1134-4129-01
39 Switch 9400-0282-01
40 Switch Cover-Pto 9400-0280-01
99 Tool 9400-0290-01
