Spare parts > STIGA > Front Mowers > VILLA ROYAL VILLA ROYAL (2004) > Seat
Back to

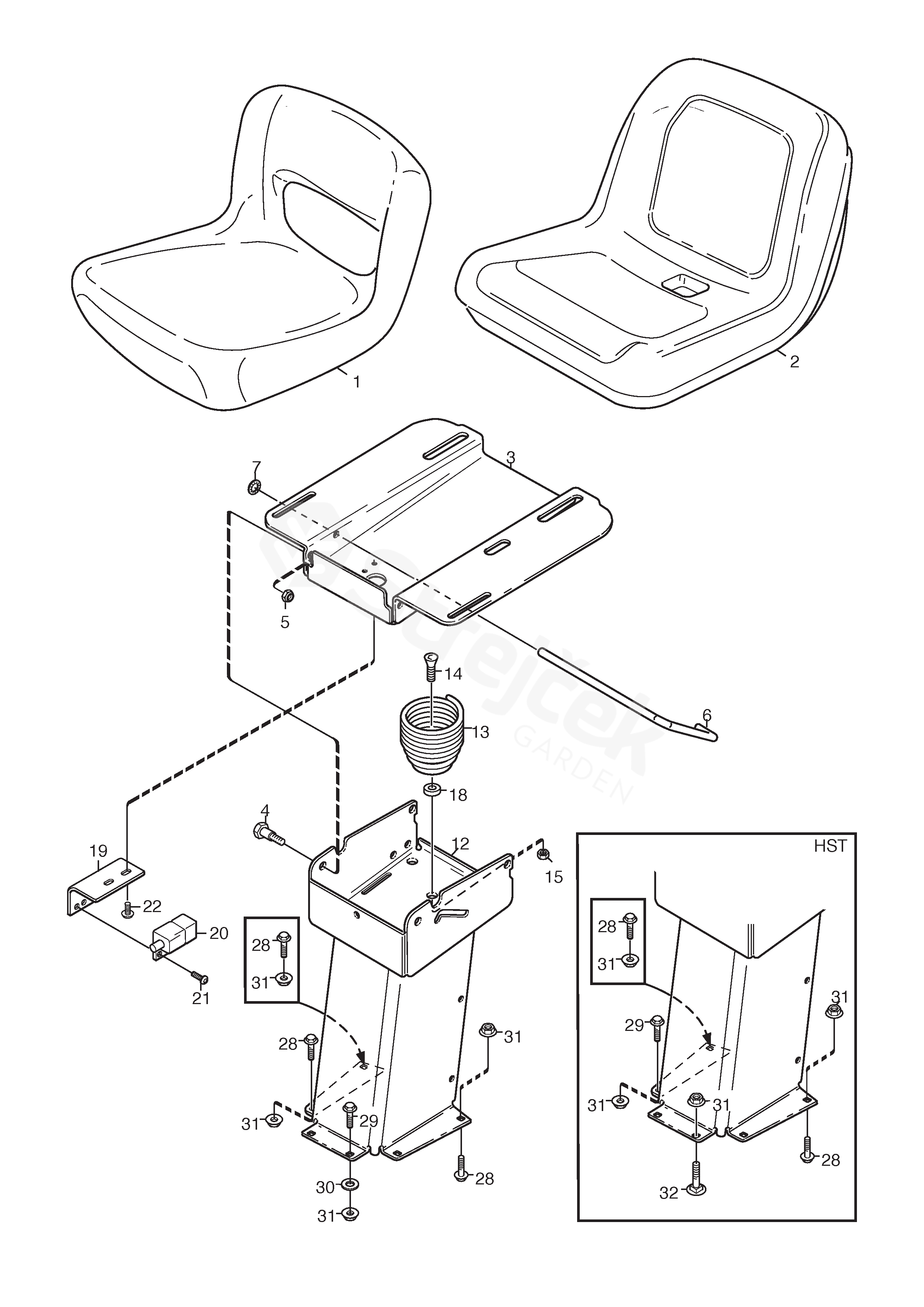

Seat
VILLA ROYAL VILLA ROYAL (2004)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For VILLA ROYAL (2004)
2 Seat 1134-4223-01
3 Seat Plate (Black) 1134-4628-05
4 Screw 1134-0240-00
5 Nut 9747-0831-02
6 Catch
Ø = 8 mm 		1134-5179-01
7 Locking washer 9675-0012-02
12 Seat bracket 1134-4211-02
13 Spring 1134-4256-01
14 Screw 9924-1235-19
15 Nut 9747-1231-02
18 Spacer 1134-5032-01
28 Screw
L = 20 mm 		9959-0820-16
29 Screw
L = 25 mm 		9959-0825-16
31 Nut 9739-0831-22
32 Screw 9897-0820-16
