STIGA
>
Front Mowers
>
Villa Silent Villa Silent (2011) [13-2728-14]
>
Engine
Back to
Villa Silent
Villa Silent (2011) [13-2728-14]

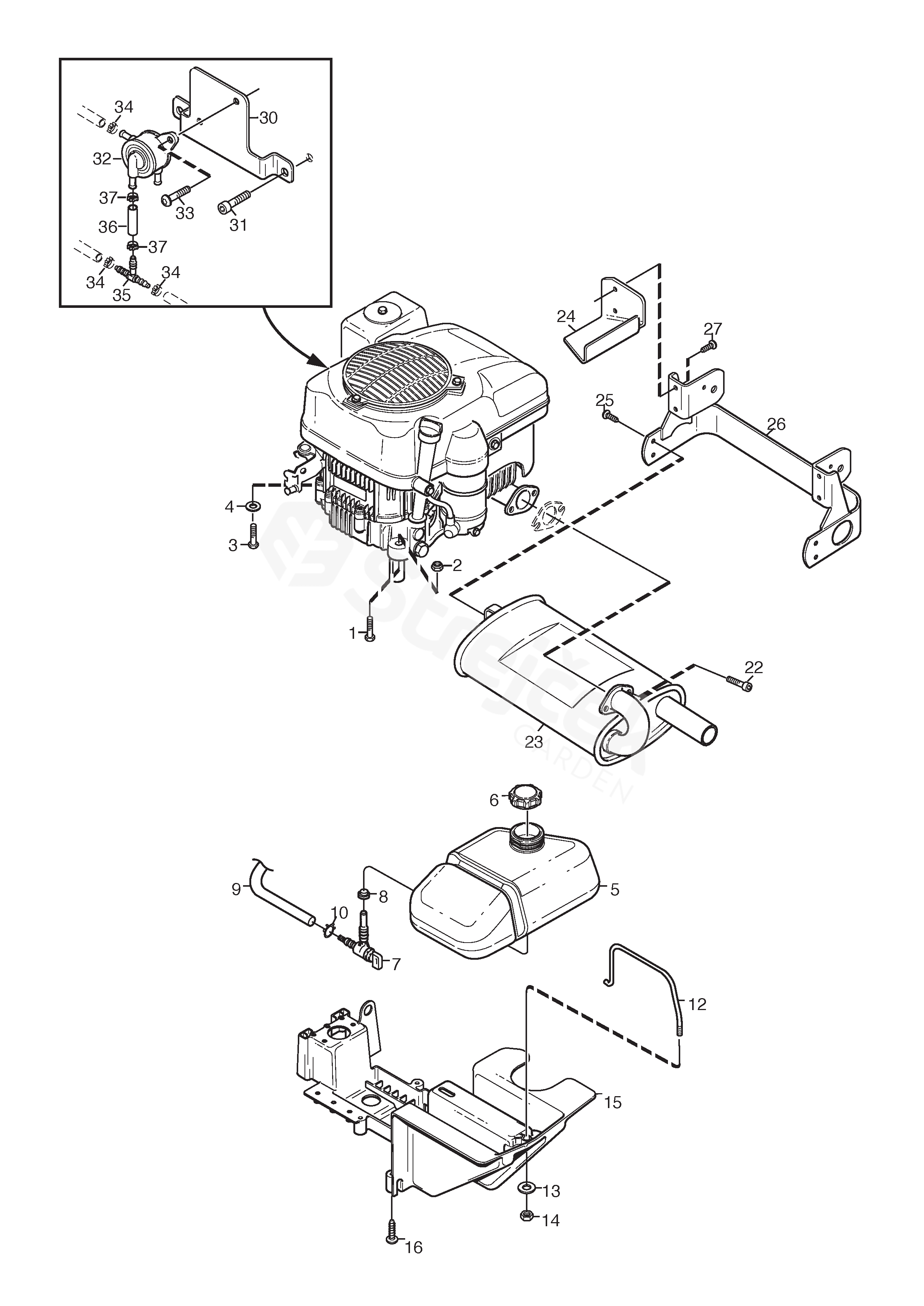

Engine
Villa Silent
Villa Silent (2011) [13-2728-14]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Villa Silent (2011) [13-2728-14]
1
Screw
M8 x 40
9997-0840-16
2
Nut
9747-0831-02
3
Screw
"5/16"" x 32 "
9987-5132-12
4
Washer
9699-0056-02
5
Fuel Tank
1134-6626-01
6
Fuel Tank Cap
1134-5532-01
7
Fuel Shut-Off Valve
1134-3224-01
8
Grommet
1134-3225-01
9
Fuel Tube
0,35 Meter
9505-0001-01
10
Hose clamp
9578-0023-02
12
Tank Clamp
1134-4808-01
13
Washer
9699-0060-02
14
Lock Nut
9747-0631-02
15
Support
1134-4807-02
16
Screw
9829-8830-12
22
Screw
9935-0820-16
23
Muffler Assy
1137-0101-01
24
Heat shield
1137-0094-01
25
Screw
9893-0616-16
26
Heat Guard
1134-6699-01
27
Screw
9893-0616-16
30
Attachment
1137-0095-01
31
Screw
9939-0820-16
32
Fuel pump
1137-0114-01
33
Screw
9893-0616-16
34
Hose clamp
Ï 10.5 mm
9578-0023-07
35
T-Joint Pipe
1137-0103-01
36
Fuel Tube
0,04 Meter
9505-0001-01
37
Hose clamp
Ï 12 mm
9578-0023-02
