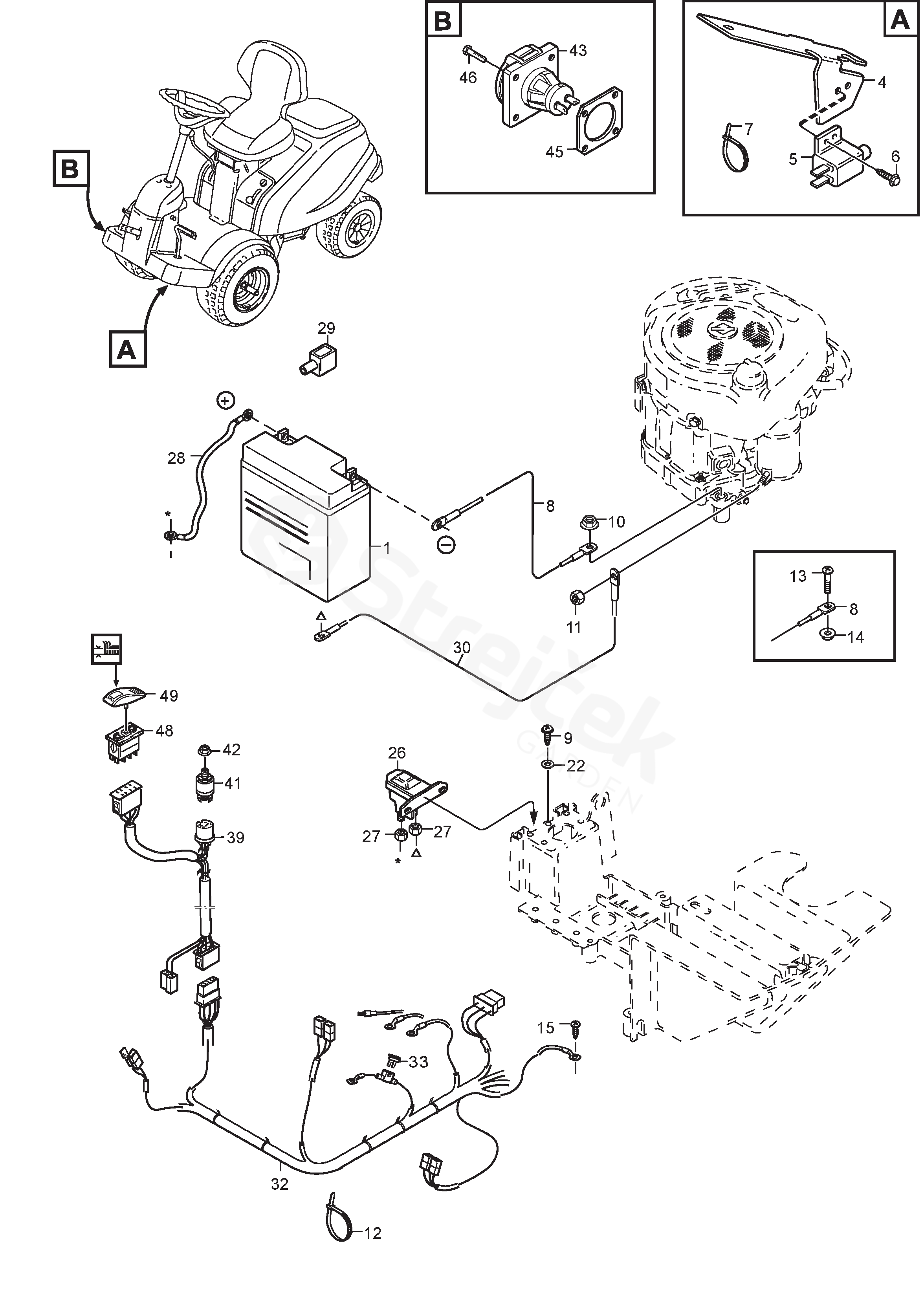

Spare parts - Partlist - Villa Silent Villa SILENT (2017) - Electric system

Everything for your machines

Villa Silent Villa SILENT (2017)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Villa SILENT (2017)

1	Batterie 18 Ah	1134-4804-01
4	Switch Bracket	1134-4610-01
5	Switch	1134-3399-02
6	Screw	9852-8013-16
8	Cable- black L = 350 mm	1134-2042-02
9	Screw	112728697/0
10	Nut	112155000/0
11	Nut 1/4 UNC	112361005/0
12	Cable	133320027/0
13	Screw	112727793/0
14	Nut	9739-0631-22
15	Screw	9943-0516-16
22	Washer	9699-0060-02
26	Starter Relay incl. 27 - Only for models with Honda engine	118736110/0
27	Nut	9743-5121-32
28	Battery Cable L = 395 mm	1134-0234-02
29	Guard Cap	1134-2310-01
32	Cable Harness incl. 33 - Only for models with Honda engine	187040305/0
33	Fuse 20A	1134-3496-06
39	Wiring harness	1134-6442-01
41	Ignition Switch	1134-4093-01
42	Nut	1134-4749-01
43	Female Connector Optional, not present for all machine	1134-7535-01
45	Washer Optional, not present for all machine	1134-4052-01
46	Screw Optional, not present for all machine	9840-7716-16
48	Switch Optional, not present for all machine	9400-0282-01
49	Switch Cover-Height Adjust Optional, not present for all machine	9400-0280-03
