Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Front Mowers
>
VILLA MASTER VILLA MASTER (2004)
>

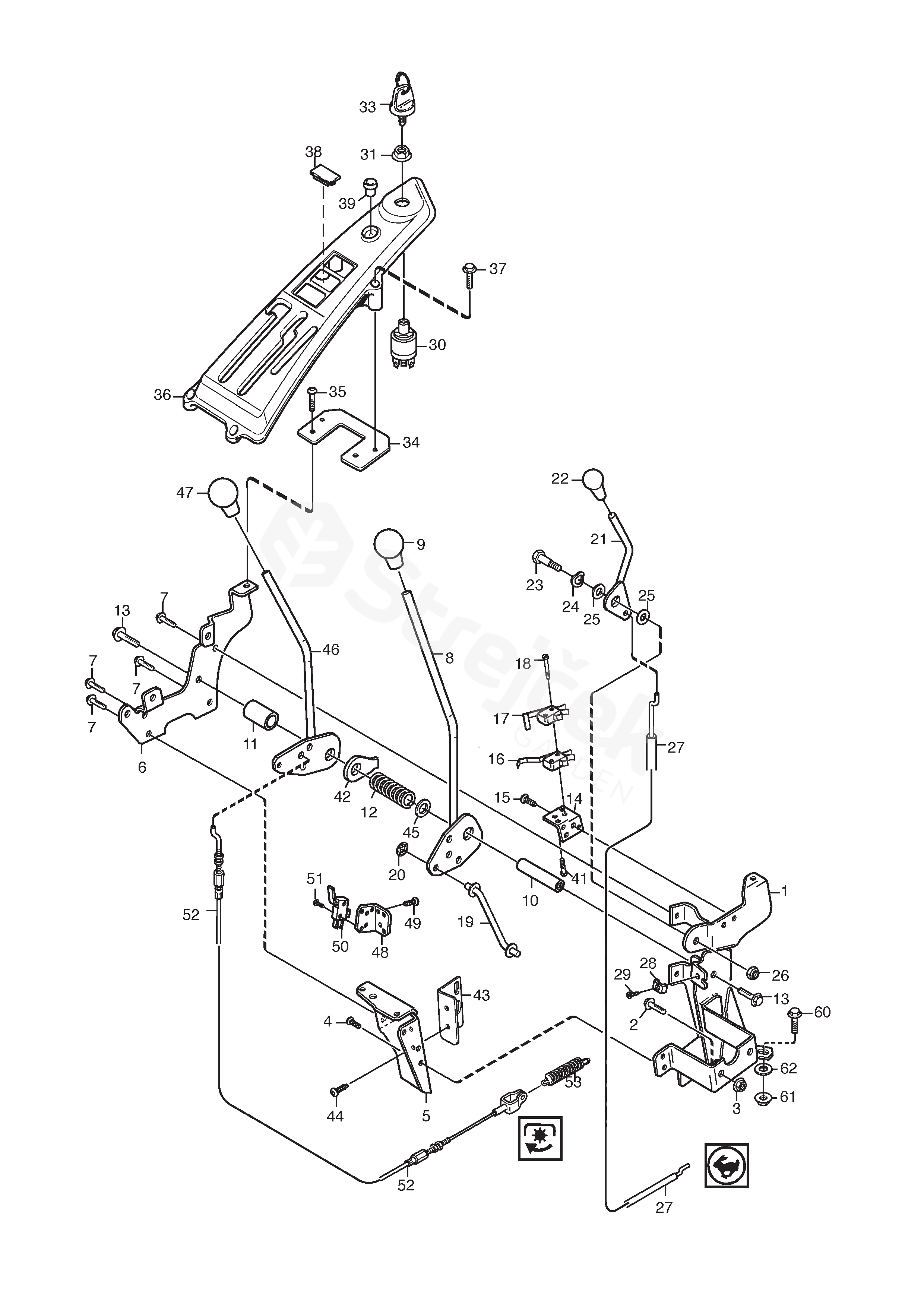

Hand controls
Back to
VILLA MASTER
VILLA MASTER (2004)
Hand controls
VILLA MASTER
VILLA MASTER (2004)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
VILLA MASTER (2004)
1
Panel Bracket (Balck)
1134-5077-01
2
Screw
9959-0820-16
3
Nut
9739-0831-22
4
Screw
9893-0616-16
5
Panel bracket-front
1134-4487-02
6
Frontplate
1134-3986-01
7
Screw
9893-0616-16
8
Gear Shifter Lever
1134-4580-01
9
Knob
1134-2551-01
10
Control Shaft
1134-4065-01
11
Control Sleeve
1134-4080-03
12
Spring
1134-4079-01
13
Screw
9959-0820-16
14
Switch Bracket
1134-5358-01
15
Screw
9852-8013-16
16
Switch
1134-4233-01
17
Switch
1134-4697-01
18
Screw
9847-7732-16
19
Shifter Rod
1134-4716-01
20
Starlock
9675-0009-02
21
Throttle Cable
1134-4590-01
22
Knob
1134-4078-01
23
Screw
1134-0240-00
24
Washer
9694-0001-00
25
Washer
1134-4242-01
26
Nut
9747-0831-02
27
Throttle Cable
1134-1597-11
28
Wire Clamp
9500-9991-00
29
Screw
9943-0516-16
30
Ignition Switch
1134-4093-01
31
Nut
1134-4749-01
33
Ignition Key
1134-4734-01
34
Attachment plate
1134-4472-01
35
Screw
9943-0516-16
36
Dashboard
1134-4470-01
37
Screw
9943-0516-16
38
Cover
1134-4129-01
39
Plug
1134-4100-01
41
Screw
9840-7716-16
42
Intermediate Washer
1134-4074-01
43
Angle Bracket
1134-4950-02
44
Screw
9893-0616-16
45
Washer
9695-0011-00
46
Control Lever
1134-5061-01
47
Knob
1134-2551-01
48
Switch Bracket
1134-5358-01
49
Screw
9849-8013-16
50
Switch
9400-0285-01
51
Screw
9840-7716-16
52
Cable
1134-3573-04
53
Spring
1134-1242-02
60
Screw
9959-0820-16
61
Nut
9739-0831-22
62
Washer
9699-0056-02
