STIGA
>
Front Mowers
>
Park 220 Park 220 (2018) [2F5820321/S16]
>
Electrical Parts
Back to
Park 220
Park 220 (2018) [2F5820321/S16]
Electrical Parts
Park 220
Park 220 (2018) [2F5820321/S16]

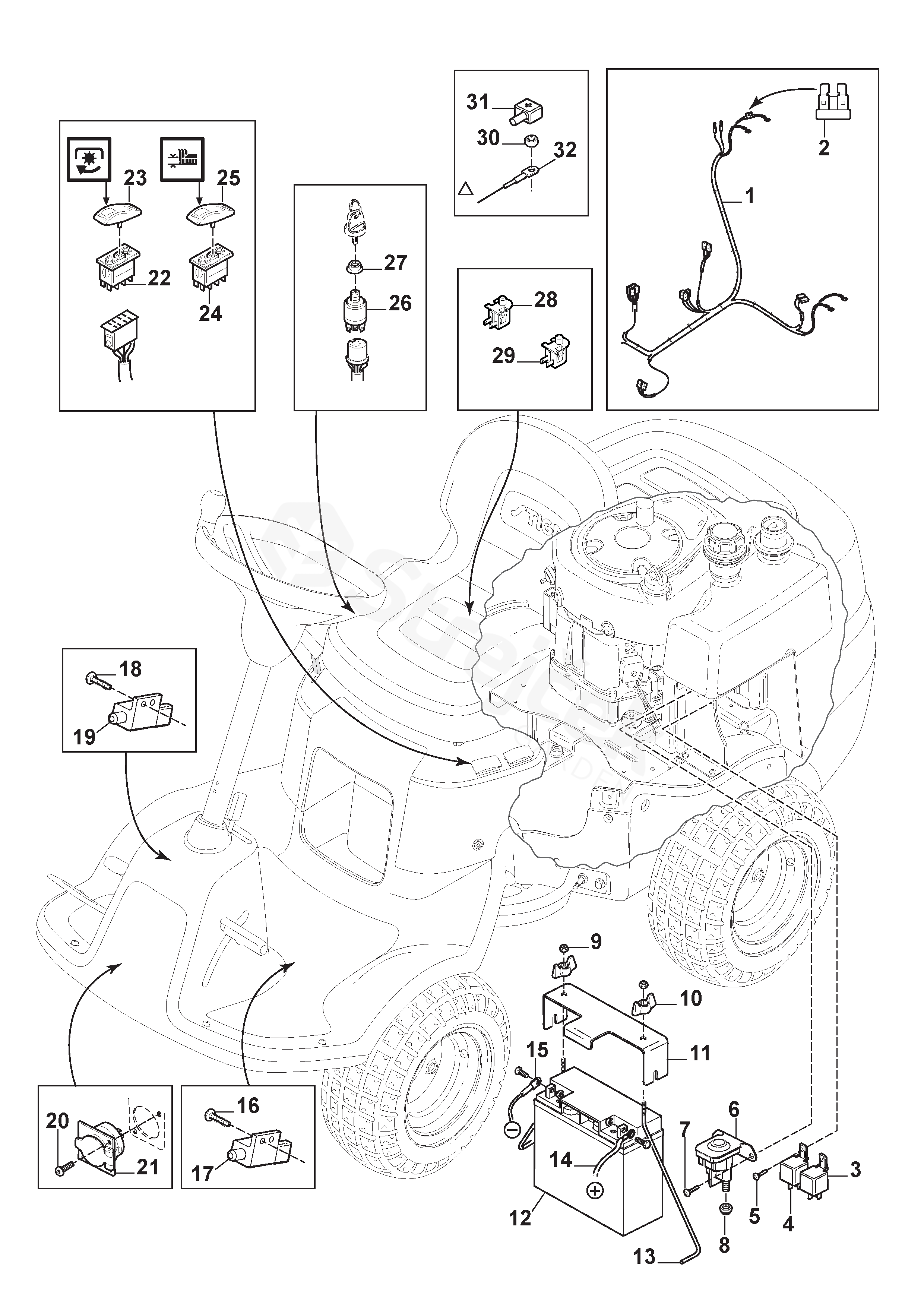

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Park 220 (2018) [2F5820321/S16]
1
Harness
187040307/0
2
Fuse
1134-3496-06
3
Relay
15A
1134-2871-03
4
Relay
40A
1134-2871-01
5
Screw
9943-0516-16
6
Solenoid
118736112/0
7
Screw
112728697/0
8
Nut
9743-5121-32
9
Nut
112154510/0
10
Wing Nut
1134-4481-02
11
Bracket
1137-1056-01
12
Battery
118120007/0
13
Rod
1137-1057-01
14
Battery Cable (+)
1137-0664-01
15
Cable (-)
1134-2167-03
16
Screw
9943-0516-16
17
Switch
1134-3399-02
18
Screw
9943-0516-16
19
Switch
1134-3399-01
20
Screw
112735105/0
21
Female Connector
1134-7535-01
22
Switch
9400-0282-01
23
Switch Cover-Pto
9400-0343-01
24
Switch
9400-0282-01
25
Switch Cover-Height Adjust
9400-0280-03
26
Ignition Switch
1134-4093-01
27
Nut
1134-4749-01
28
Switch
1134-3156-02
29
Switch
1134-3156-01
30
Nut
9739-0631-22
31
Protection
118564864/1
32
Battery Cable
1134-0234-02
