Spare parts > STIGA > Front Mowers > Park 220 PARK 220 (2020) > Transmission Unit, Hydro-Gear T2-BDBF-3X3C-19X1
Back to

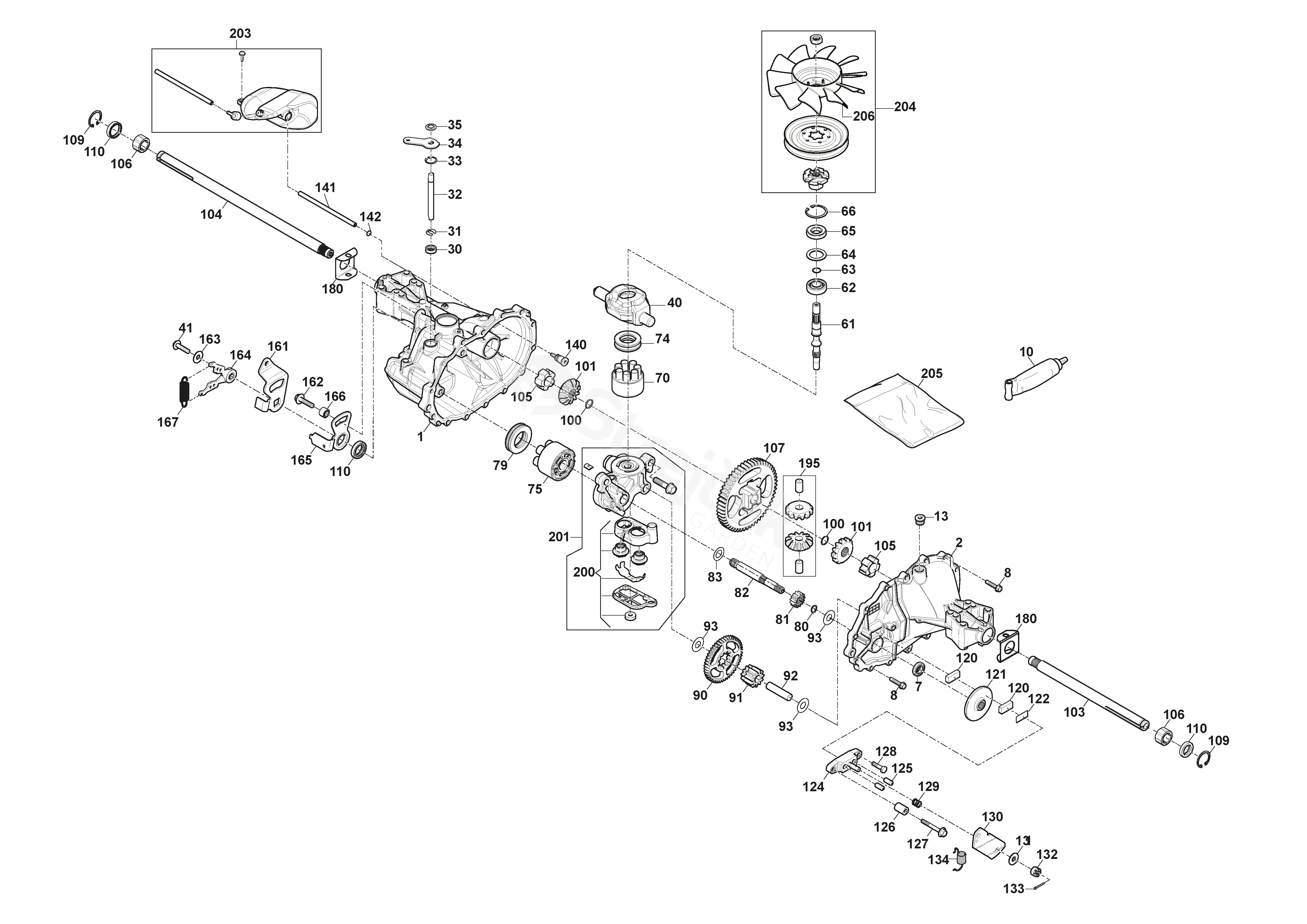

Transmission Unit, Hydro-Gear T2-BDBF-3X3C-19X1
Park 220 PARK 220 (2020)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK 220 (2020)
1 Main Housing 118870120/0
2 Side Housing 118870121/0
7 Seal 118870111/0
8 Screw 1139-2042-01
10 Sealant 1139-2022-01
13 Plug 1139-2010-01
30 Seal 118870079/0
31 Retaining ring 118870081/0
32 Rod 1139-2203-01
33 Retaining ring 118870080/0
34 Arm 118870091/0
35 Retaining ring 118870082/0
40 Swashplate 118870090/0
41 Screw 118870083/0
61 Shaft 118870092/0
62 Ball Bearing 1139-2001-01
63 Wire Retaining Ring 1139-2003-01
64 Spacer 1139-2004-01
65 Lip Seal 1139-2000-01
66 Retaining ring 1139-2002-01
70 Pump Block Assy 118870125/0
74 Bearing 118870093/0
75 Cylinder Block 1139-2063-01
79 Thrust Bearing 1139-2021-01
80 Retaining ring 118870070/0
81 Gear 118870106/0
82 Shaft 118870095/0
83 Washer 118870096/0
90 Gear 118870105/0
91 Gear 118870098/0
92 Pin 118870099/0
93 Washer 1139-2016-01
100 Retaining ring 118870072/0
101 Gear 118870063/0
103 Shaft 118870116/0
104 Shaft 118870115/0
105 Bushing 118870086/0
106 Bushing 118870085/0
107 Gear 118870100/0
109 Retaining ring 118870084/0
110 Shaft 1139-2204-01
120 Brake Pad 118870066/0
121 Brake 118870101/0
122 Brake Pad Support 118870067/0
124 Brake Caliper 118870119/0
125 Pin 118870069/0
126 Spacer 118870062/0
127 Screw 118870077/0
128 Bolt 118870071/0
129 Spring 118870076/0
130 Brake Lever 118870064/0
131 Flat washer 1139-2011-01
132 Nut 118870068/0
133 Pin 118870065/0
134 Spring 118870075/0
140 Fitting 1139-2038-01
141 Tube 118870102/0
142 O-Ring 1139-2075-01
161 Arm 118870103/0
162 Bolt 1139-2026-01
163 Flat washer 1139-2011-01
164 Arm Assy 118870107/0
165 Arm 118870108/0
166 Bushing 118870104/0
167 Spring 118870089/0
180 Plate 118870112/0
195 Kit-Gears and Pins 118870126/0
200 Kit-Filter 118870123/0
201 Center Section Kit 118870127/0
203 Kit-Expansion Tank 118870122/0
204 Kit, Fan Pulley 118870061/0
205 Kit-Seal 118870124/0
206 Fan 118870132/0
