Spare parts > STIGA > Front Mowers > PARK 13HST PARK 13HST (1997) [13-1358-20] > Manual Lifting Device
Back to

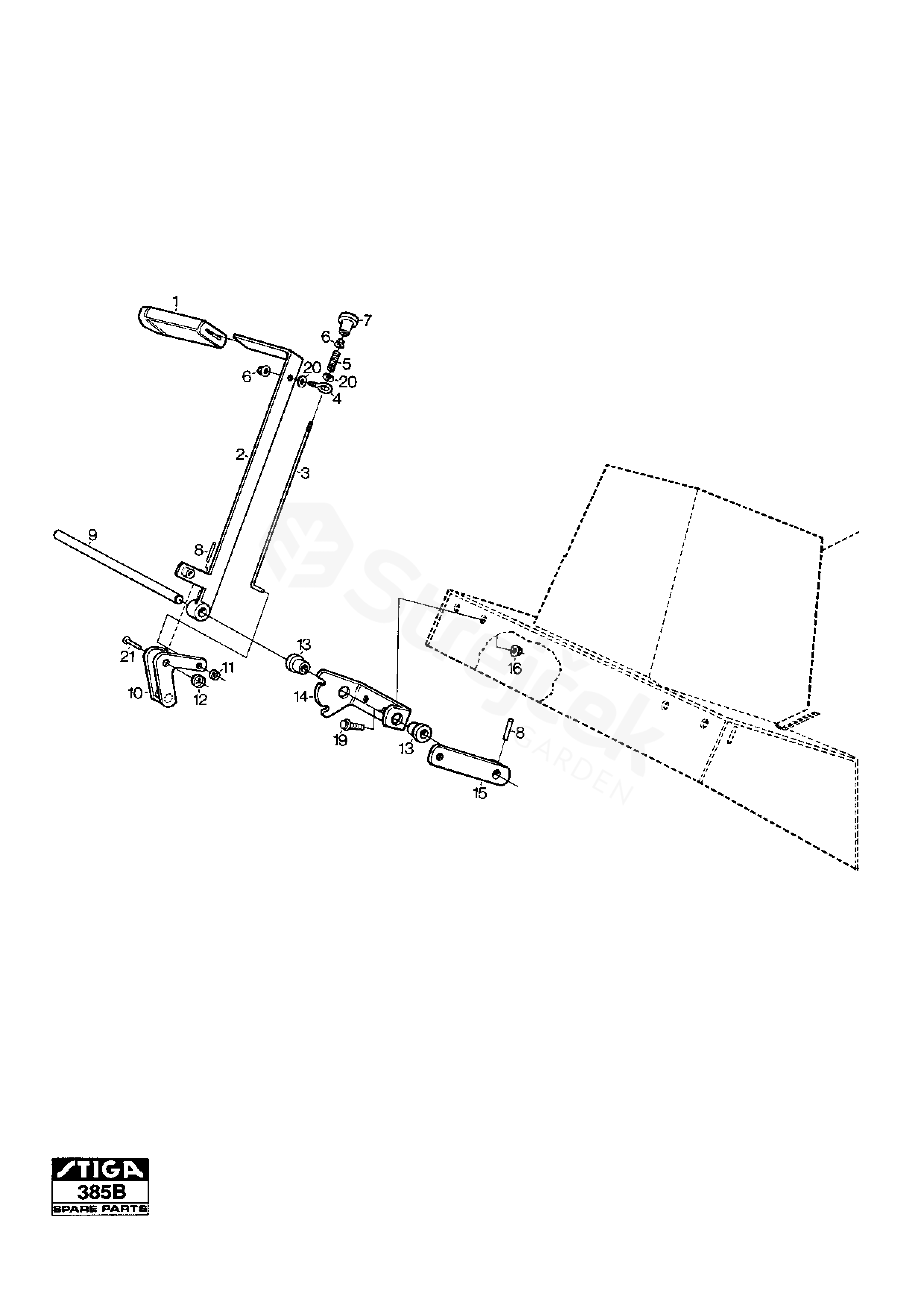

Manual Lifting Device
PARK 13HST PARK 13HST (1997) [13-1358-20]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK 13HST (1997) [13-1358-20]
1 Handle 9403-0110-01
2 Bar 1134-0859-03
3 Push rod 1134-0858-00
4 Eye Bolt 1134-1889-01
5 Spring 1111-0053-00
6 Nut 9739-0631-22
7 Knob 1134-0583-00
8 Locating Pin 9595-0258-00
9 Lifting Shaft 1134-1884-01
10 Locking Pawl 1134-2911-01
11 Starlock 9675-0008-02
12 Locking washer 9675-0012-02
13 Bearing 1134-2684-01
14 Locking Plate 1134-0536-00
15 Arm 1134-0857-00
16 Nut 9739-1031-22
19 Screw 9959-1020-16
20 Washer 9699-0025-02
21 Rivet 9646-0099-22
