Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Front Mowers
>
Park 320 Park 320 (2016)
>
Electric system
Back to
Park 320
Park 320 (2016)

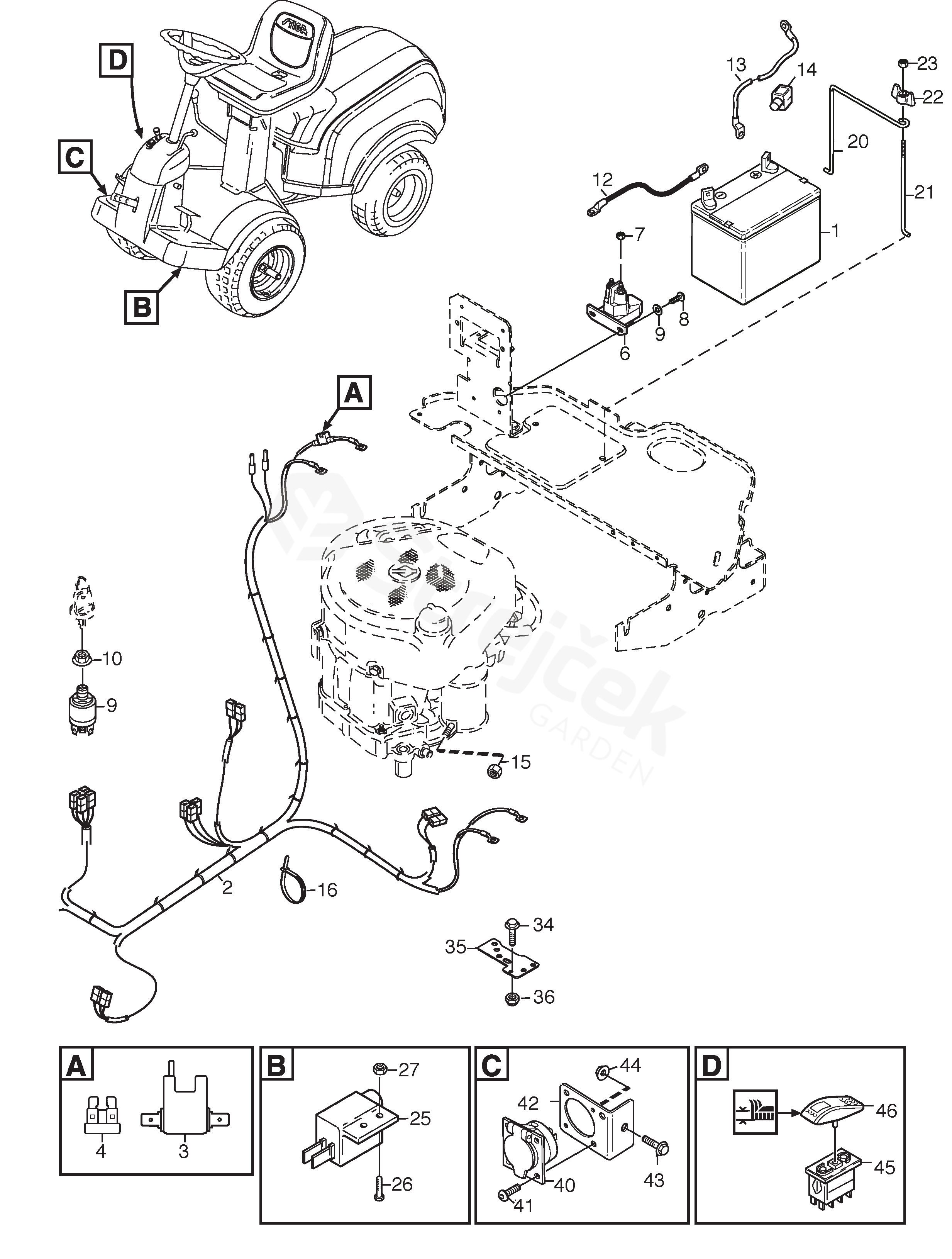

Electric system
Park 320
Park 320 (2016)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Park 320 (2016)
1
Battery
1134-5751-01
2
Harness
Inkl. Pos 3, 4
187040308/0
3
Fuse Holder Incl Fuse
Inkl. pos 4
9400-0327-01
4
Fuse
20A
1134-3496-06
6
Solenoid
Inkl. pos 8
118736112/0
7
Screw
9852-8013-16
8
Nut
9743-5121-32
9
Ignition Switch
1134-4093-01
10
Nut
1134-4749-01
12
Battery Cable
1134-5992-01
13
Battery Cable
1134-0234-02
14
Guard Cap
1134-2310-01
15
Nut
1/4" UNC
112361005/0
16
Cable
133320027/0
17
Battery Bracket
1134-5343-01
18
Screw
9852-8013-16
19
Washer
9699-0060-02
20
Battery Loop
1134-5994-01
21
Battery Loop
1134-5995-01
22
Wing Nut
1134-4481-02
23
Nut
112154510/0
25
Switch
1134-3399-02
26
Screw
112789008/0
27
Nut
112154330/0
34
Screw
9959-0612-16
35
Ground Plate
1134-6454-01
36
Nut
9739-0631-22
40
Attachment 2010
1137-0075-01
41
Screw
112735105/0
42
Female Connector
1134-7535-01
43
Screw
9959-0820-16
44
Nut
112154220/0
45
Switch
9400-0282-01
46
Switch Cover-Height Adjust
9400-0280-03
