Spare parts > STIGA > Front Mowers > Park 320 Park 320 (2018) > Steering
Back to

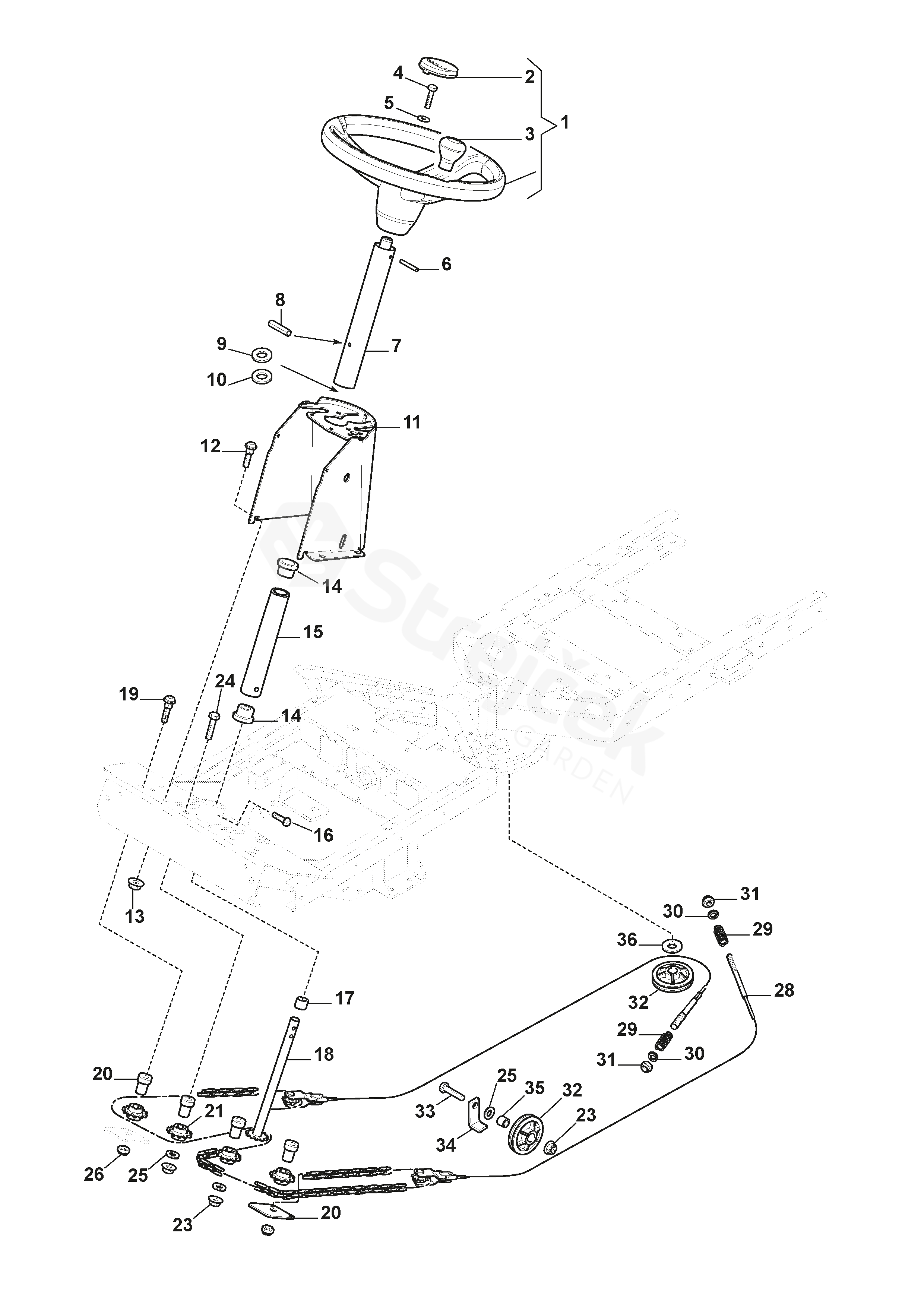

Steering
Park 320 Park 320 (2018)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Park 320 (2018)
1 Steering wheel 337961200/0
2 Steering Plate 337580550/0
3 Knob 187593701/0
4 Screw 112793102/0
5 Grower 112583500/0
6 Elastic Pin 112620299/0
7 Steering Rod 387520127/0
8 Locating Pin 9595-0262-00
9 Washer
0.5 mm 		9699-0103-02
10 Washer
1.0 mm 		9699-0114-02
11 Steering Console (Yellow) 1-00 1134-5349-01
12 Screw 9897-0820-16
13 Nut 112154220/0
14 Bearing 1134-1901-01
15 Steering Column,Lower 387520125/0
16 Screw 9893-0616-16
17 Spacer 1134-2837-03
18 Steering Rod Assy 1137-0079-04
19 Screw 9897-1060-12
20 Spacer 1134-5653-01
21 Sprocket 1134-2816-01
23 Nut 9739-1031-22
24 Screw 112692395/2
25 Washer 112521360/0
26 Nut 9731-1031-22
28 Steering Chain Assy 1134-6380-02
29 Spring 1134-3817-01
30 Washer 9699-0090-02
31 Nut 112155000/0
32 Steering Pulley 1134-0072-02
33 Screw 9997-1040-16
34 Wire Clamp 1134-0046-00
35 Bushing 1134-0041-01
36 Washer 337670201/0
