Spare parts > STIGA > Front Mowers > Park 320 Park 320 (2019) > Electrical Parts
Back to
Electrical Parts
Park 320 Park 320 (2019)

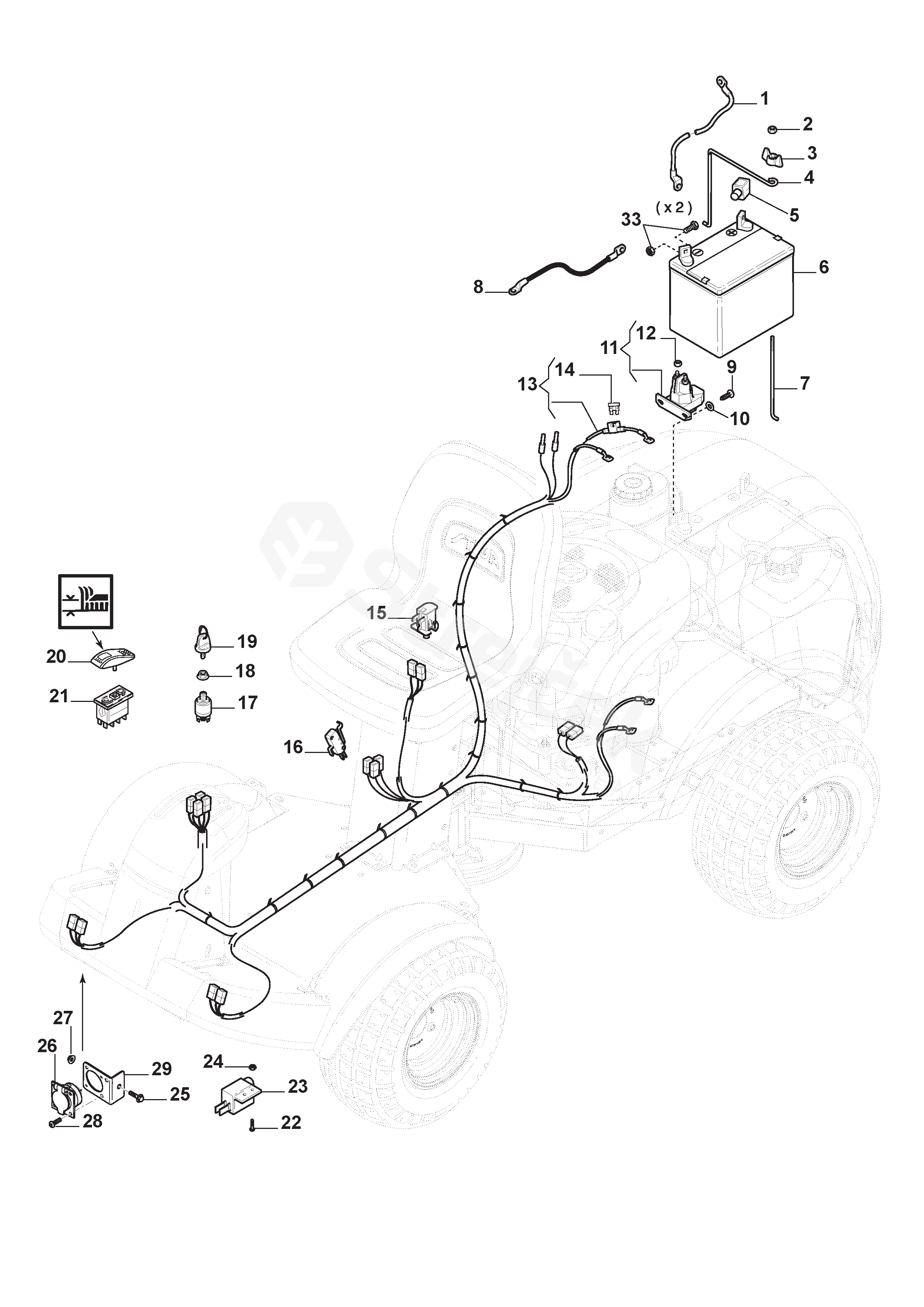

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Park 320 (2019)
1 Battery Cable 1134-0234-02
2 Nut 112154510/0
3 Wing Nut 1134-4481-02
4 Battery Loop 1134-5994-01
5 Guard Cap 1134-2310-01
6 Battery 1134-5751-01
7 Battery Loop 1134-5995-01
8 Battery Cable 1134-5992-01
9 Screw 9852-8013-16
10 Washer 9699-0060-02
11 Solenoid 118736112/0
12 Nut 112361005/0
13 Harness 187040308/0
14 Fuse
20A 		1134-3496-06
15 Switch 1134-3156-02
16 Microswitch 9400-0360-01
17 Ignition Switch 1134-4093-01
18 Nut 1134-4749-01
19 Ignition Key 1134-4734-01
20 Switch Cover-Height Adjust 9400-0280-03
21 Switch 9400-0282-01
22 Screw 112789008/0
23 Switch 1134-3399-02
24 Nut 112154330/0
25 Screw 9959-0820-16
26 Female Connector 387149302/0
27 Nut 112154220/0
28 Screw 112735105/0
29 Attachment 2010 1137-0075-01
33 Screw 1134-6113-02
