Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Front Mowers
>
Park 340 MX Park 340 MX (2015)
>
Power take-off
Back to
Park 340 MX
Park 340 MX (2015)

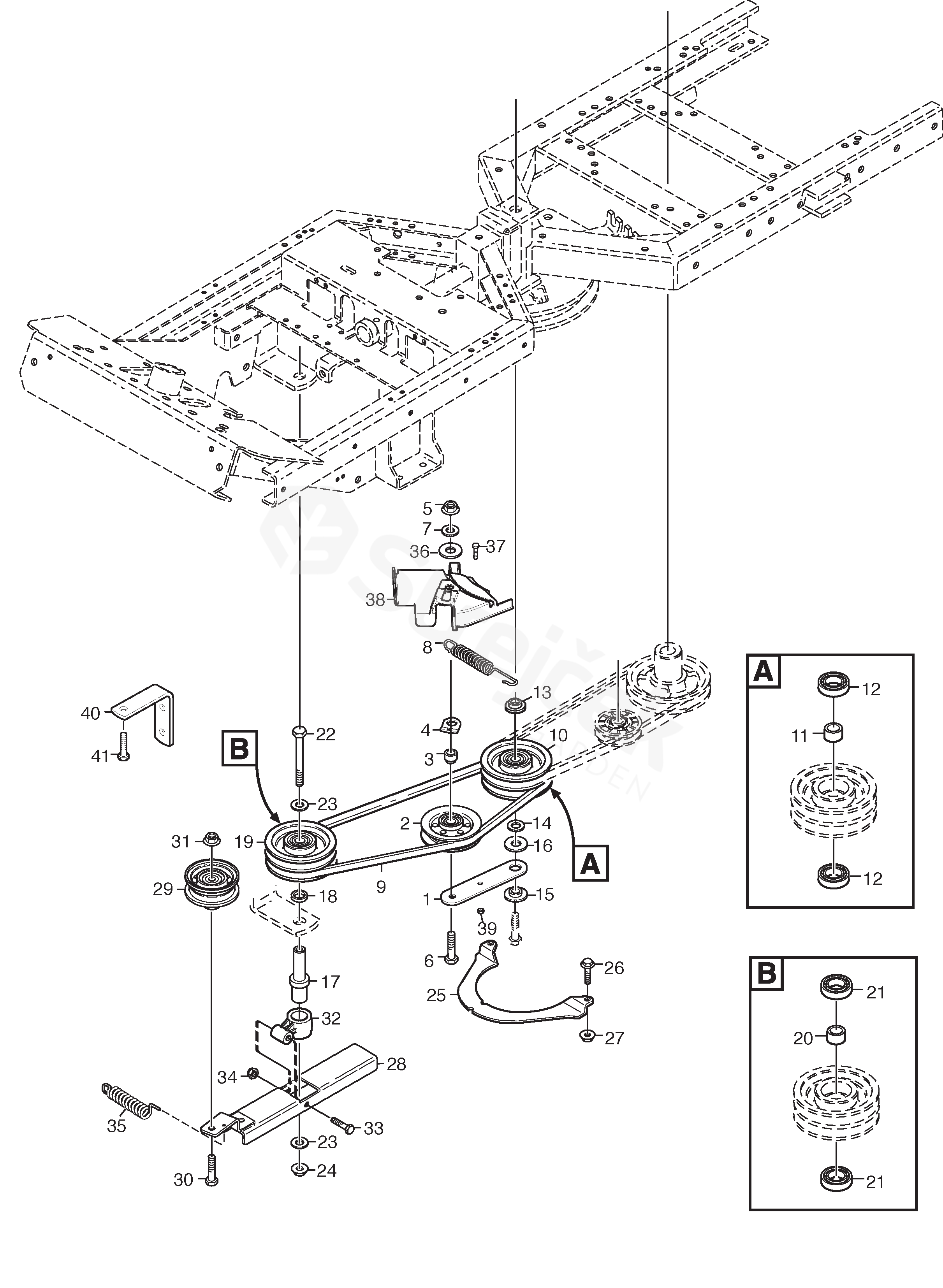

Power take-off
Park 340 MX
Park 340 MX (2015)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Park 340 MX (2015)
1
Tensioning Wheel Arm
1134-1730-02
2
Tension Wheel
1134-3663-01
3
Spacer
1134-1888-06
4
Spring
337546545/0
5
Nut
9739-1031-22
6
Screw
112692395/1
7
Washer
112521360/0
8
Spring
1134-5713-01
9
Drive Belt
Contains belt 135065702/0
1134-9199-01
10
Centre Belt Pulley
Pos 11-12 incl.
1137-0209-01
11
Spacer
1134-0051-09
12
Ball Bearing
9549-0019-00
13
Spacer
1134-5548-01
14
Washer
112521360/0
15
Washer
1134-0222-00
16
Washer
9699-0109-02
17
Shaft
1134-5663-01
18
Spacer
1134-0052-00
19
Centre Belt Pulley
Pos 20-21 incl.
1137-0209-01
20
Spacer
1134-0051-09
21
Ball Bearing
9549-0019-00
22
Screw
9997-1011-06
23
Washer
9699-0030-02
24
Nut
9739-1031-22
25
Guard
1134-3654-01
26
Screw
9959-0612-16
27
Nut
9739-0631-22
28
Tension Arm Assy
1134-5660-01
29
Tension Roller Assy
1134-5823-01
30
Screw
112794900/0
31
Nut
9739-1031-22
32
Tension Arm Attachment
1134-6314-01
33
Screw
112689515/0
34
Nut
112154510/0
35
Spring
1134-5824-01
36
Bush
137038000/0
37
Screw
112792410/0
38
Protection
337600001/2
39
Nut
112154510/0
40
Spring
1134-5112-01
41
Screw
9945-0816-16
