Spare parts > STIGA > Front Mowers > PARK 2002 PARK 2002 (1989) [13-1258-12] > Steering
Back to
Steering

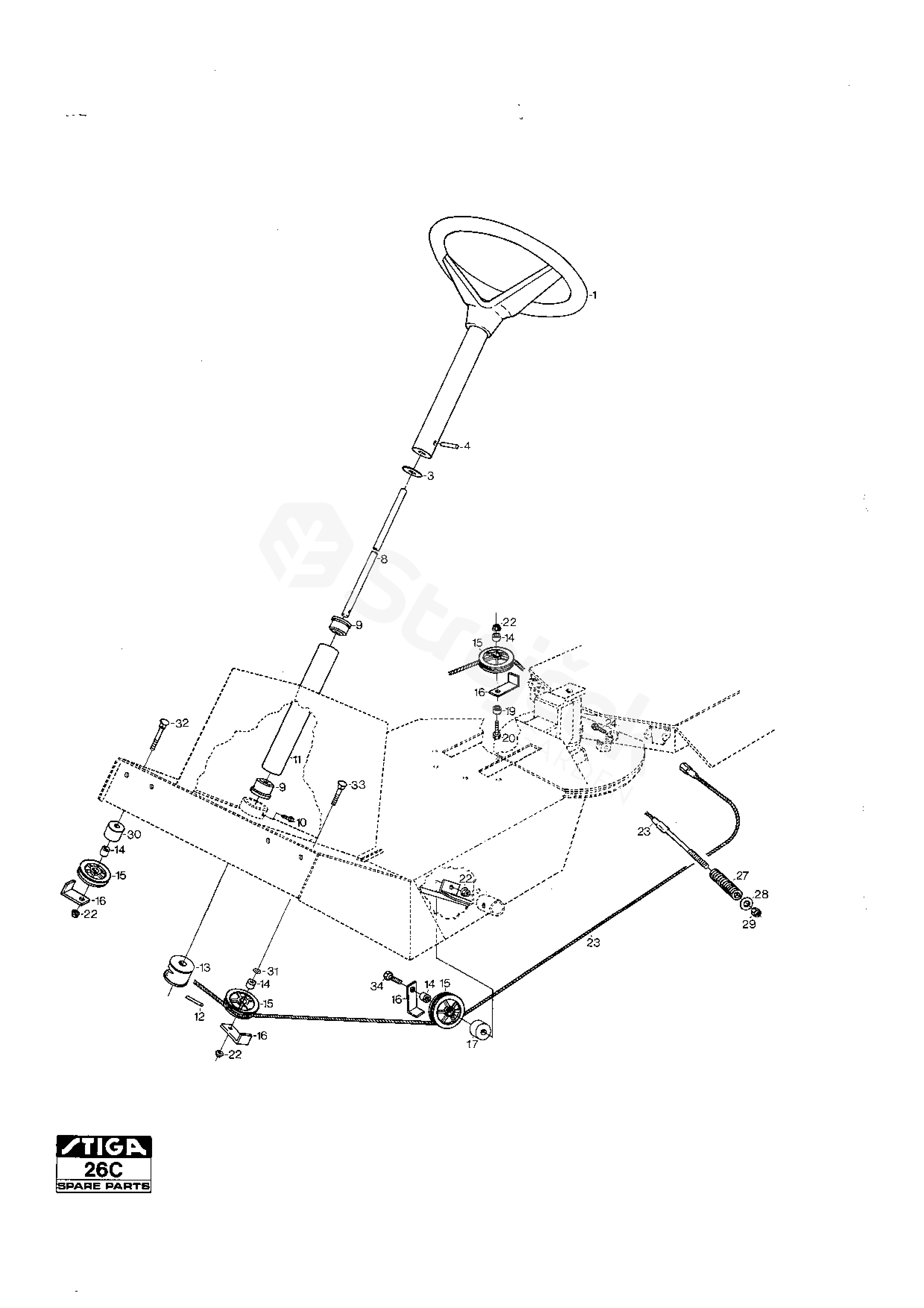

PARK 2002 PARK 2002 (1989) [13-1258-12]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK 2002 (1989) [13-1258-12]
1 Steering wheel 1134-1967-01
3 Washer
1.0 mm 		9699-0103-02
4 Locating Pin 9595-0262-00
8 Steering Rod 1134-1307-01
9 Bearing 1134-1901-01
11 Steering Column,Lower 1134-1305-03
12 Locating Pin 9595-0262-00
13 Steering Pulley 1134-1933-01
14 Bushing 1134-0041-01
15 Steering Pulley 1134-9025-01
16 Bracket 1134-3022-01
17 Spacer 1134-1934-02
20 Screw 9997-1080-12
22 Nut 9739-1031-22
23 Steering Cable 1134-9022-01
24 Screw 9959-0816-16
27 Spring 1134-1310-01
28 Washer 9699-0090-02
29 Nut 9747-0831-02
30 Spacer 1134-1934-01
31 Washer 9699-0030-02
32 Screw 9898-1060-12
33 Screw 9898-1035-16
34 Screw 9997-1050-16
