STIGA
>
Front Mowers
>
PARK CLASSIC PARK CLASSIC (1999) [13-1258-22]
>
Seat
Back to
PARK CLASSIC
PARK CLASSIC (1999) [13-1258-22]

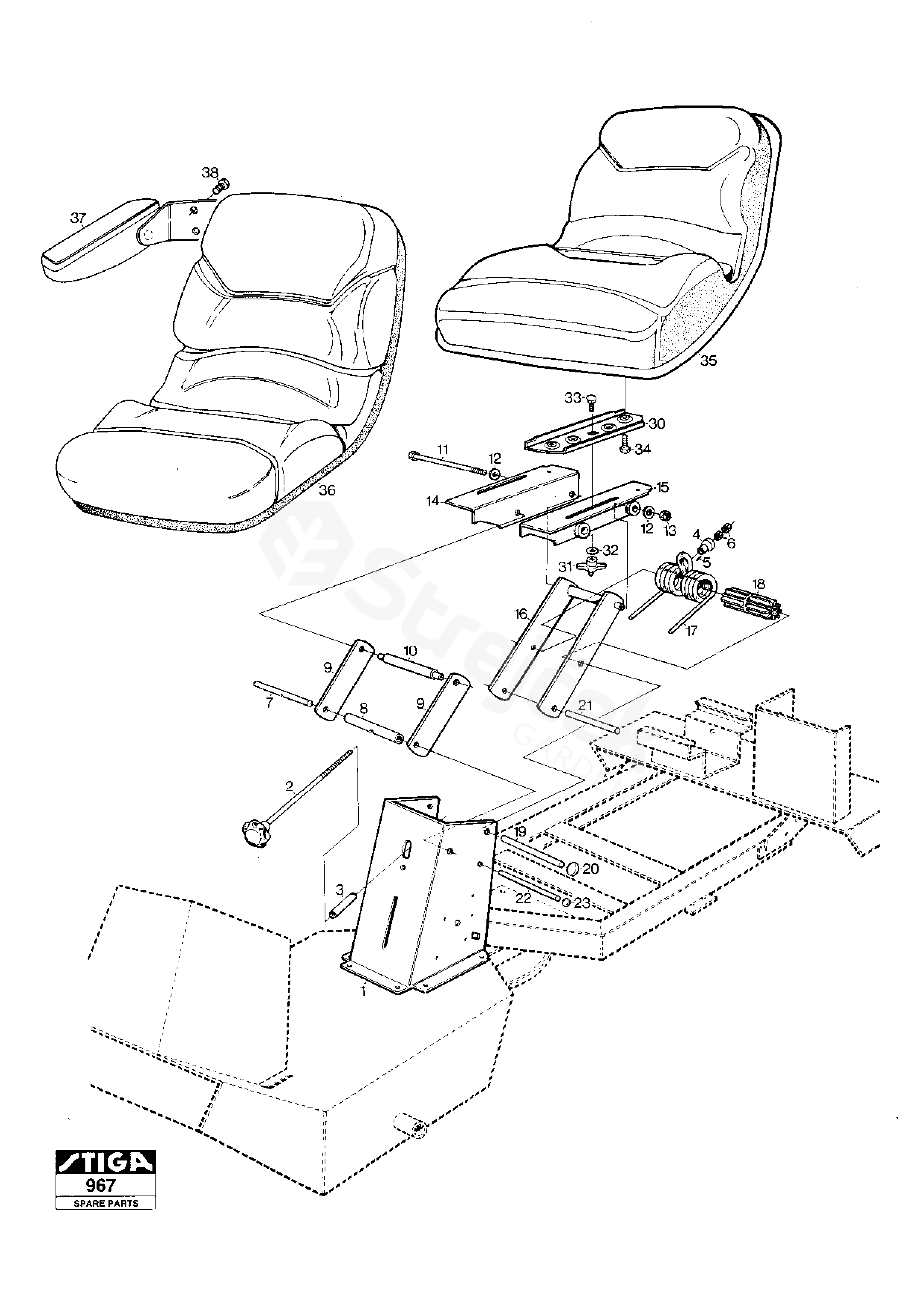

Seat
PARK CLASSIC
PARK CLASSIC (1999) [13-1258-22]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK CLASSIC (1999) [13-1258-22]
1
Seat Bracket-Yellow
1134-3800-01
2
Rod
1134-2163-01
3
Spacer
1134-2166-01
4
Nut
1134-0019-00
5
Locating Pin
9595-0160-00
6
Nut
9799-0831-02
7
Shaft
1134-2847-01
8
Tube
1134-2846-01
9
Tie Bar
1134-1650-01
10
Pivoting Tube
1134-3871-02
11
Screw
9997-0816-02
12
Washer
9699-0062-02
13
Nut
9747-0831-02
14
Seat Attachment-R.H.
1134-3878-01
15
Seat attachment-L.H.
1134-3878-02
16
Spring
1134-3876-01
17
Spring
1134-3879-01
18
Axle
1134-1883-01
19
Control Rod
1134-0022-00
20
Starlock
9672-0004-02
21
Seat Rod
1134-0050-00
22
Shaft
1134-2454-01
23
Lock washer
9672-0006-02
30
Seat Adapter
1134-2961-01
31
Knob
1134-1711-01
32
Washer
9699-0062-02
33
Screw
9898-0820-16
34
Screw
9988-3616-16
35
Seat Sears Sa 1216 (9407-0003-01) 20
1258,1358,1443,1446
1134-0800-06
