Spare parts > STIGA > Front Mowers > PARK COMFORT PARK COMFORT (2003) [13-6143-44] > Hand controls
Back to

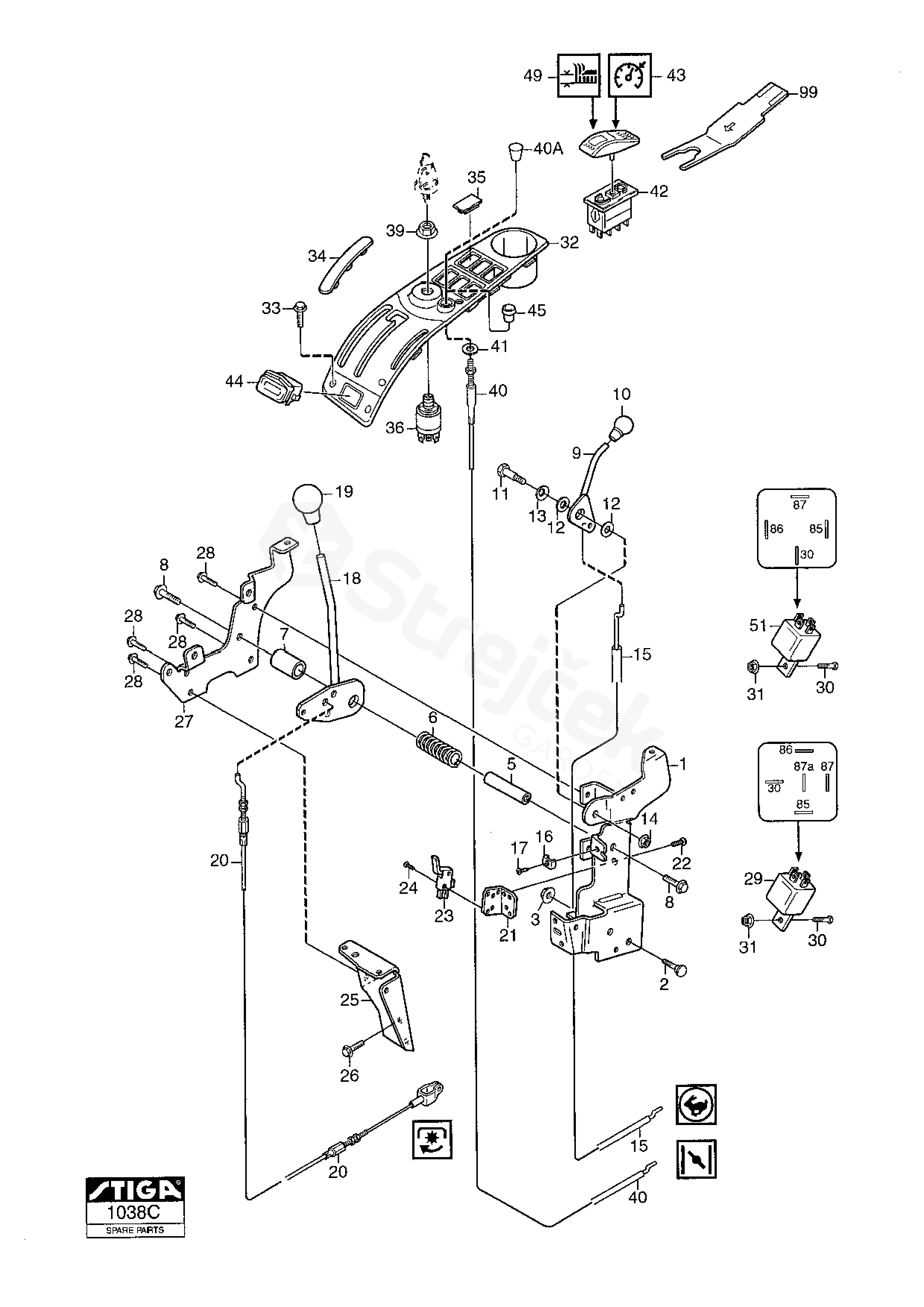

Hand controls
PARK COMFORT PARK COMFORT (2003) [13-6143-44]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK COMFORT (2003) [13-6143-44]
1 Panel Bracket-Inner 1134-4156-01
2 Screw 9897-0820-16
5 Control Shaft 1134-4065-01
6 Spring 1134-4079-01
7 Control Sleeve 1134-4080-03
8 Screw 9959-0820-16
9 Throttle Cable 1134-4077-01
10 Knob 1134-4078-01
11 Screw 1134-0240-00
12 Washer 1134-4242-01
13 Washer 9694-0001-00
14 Nut 9739-0831-22
15 Throttle Cable 1134-4195-01
16 Wire Clamp 9500-9991-00
17 Screw 9943-0516-16
18 Control Lever 1134-4072-01
19 Knob 1134-2551-01
20 Pto Cable 1134-3573-03
21 Switch Bracket 1134-4217-01
22 Screw 9849-8013-16
23 Switch 9400-0285-01
24 Screw 9840-7716-16
25 Panel bracket-front 1134-4487-02
26 Screw 9893-0616-16
27 Frontplate 1134-3986-01
32 Dashboard 1134-3981-02
33 Screw 9946-0525-16
34 Cover 1134-4154-01
35 Cover 1134-4129-01
36 Ignition Switch 1134-4093-01
39 Nut 1134-4749-01
40 Choke Control 1134-2872-02
41 Washer 9699-0028-02
44 Hour Meter 1134-4179-02
45 Plug 1134-4100-01
40A Control Button-Choke 1134-4338-01
