Spare parts > STIGA > Front Mowers > PARK COMPACT PARK COMPACT (2005) > El. Equipment
Back to
El. Equipment

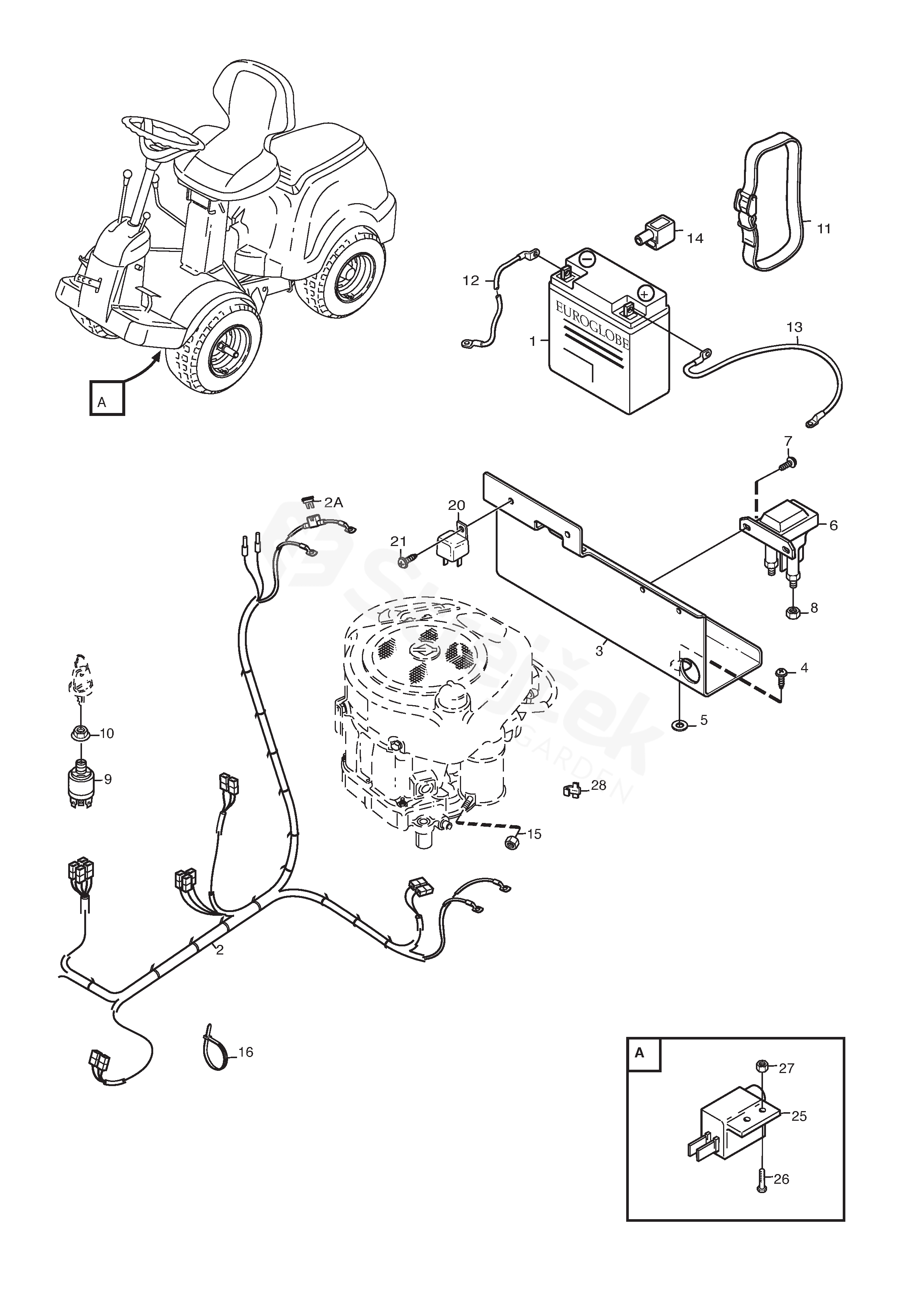

PARK COMPACT PARK COMPACT (2005)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK COMPACT (2005)
1 Batterie 1134-4804-01
2 Harness (Park Compact Manual) 1134-5768-01
3 Battery Bracket 1134-5343-01
5 Washer 9699-0060-02
6 Solenoid 1134-2962-01
8 Nut 9794-5131-02
9 Ignition Switch 1134-4093-01
10 Nut 1134-4749-01
11 Battery Strap 1134-5245-01
12 Cable 1134-2167-01
13 Battery Cable 1134-0234-02
14 Guard Cap 1134-2310-01
15 Nut 9795-3531-02
16 Cable Holder 9579-0003-00
20 Relay 1134-2871-03
21 Screw 9852-8013-16
2A Fuse
20A 		1134-3496-06
